Chapter 4 PLAY Mode
SETUP Function

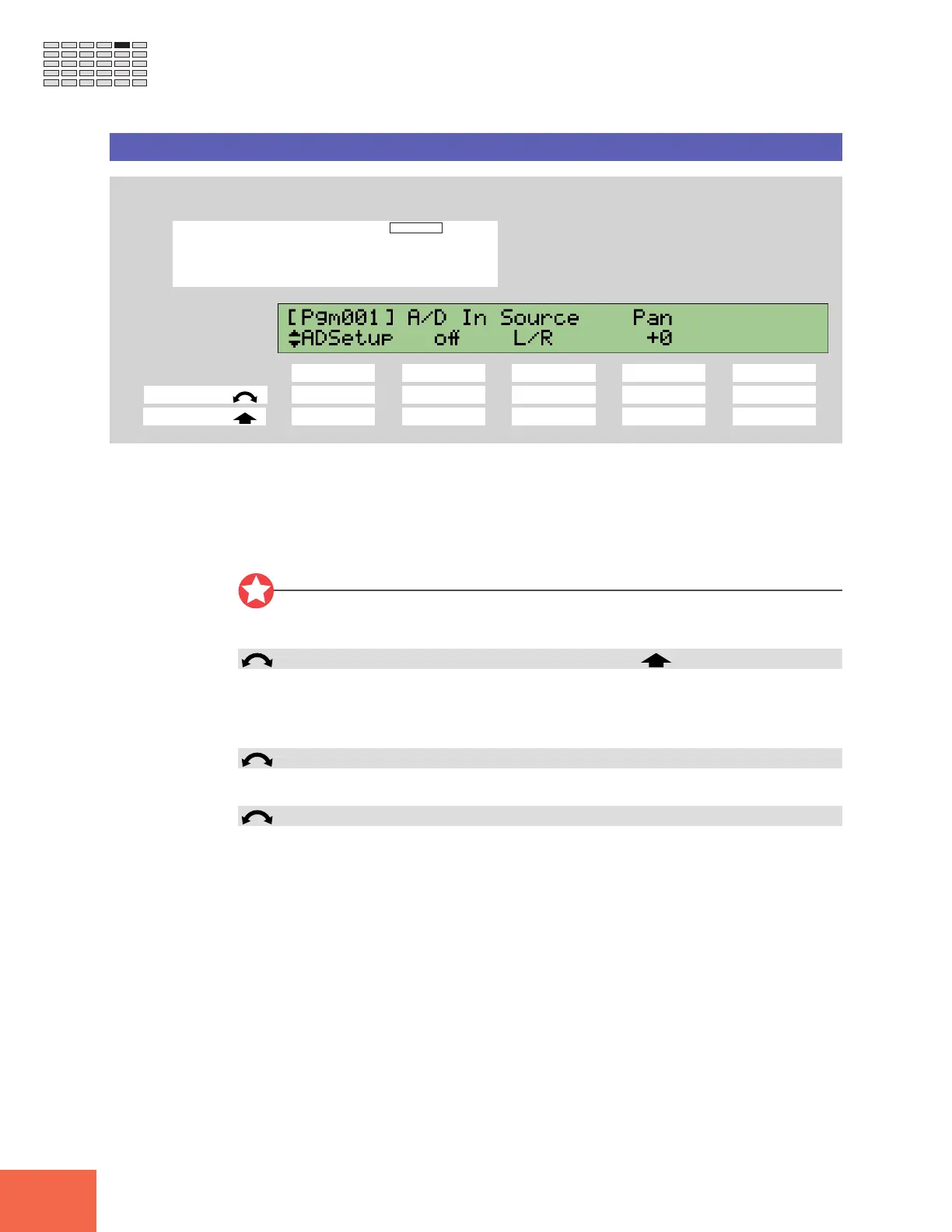

SETUP - ADSetup (A/D-In Setup)
Sets the A/D-in feature on or off, and sets the A/D-input source and pan.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI
Turn Knob 1 to select ADSetup.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔ -
Push action ✔ ----
The A/D-input feature lets you feed an acoustic signal from an external device (typically
a microphone) through the A3000. You can set the signal to receive any one of the
program’s three effects, or you can relay the signal through the A3000 without change.
You use this page to set the program’s A/D-Input feature on or off, and to set the A/D
input source and pan.
Important
It is not possible to use the digital connectors on the optional I/O expansion board
(AIEB1 board) as the A/D input source.
Knob 1 Change Page Select P/S
• Turn the knob to change to a different page within the SETUP function. Available
pages are: PgmMstr, Portmnt, ADSetup (this page), and ADOut.
• Push the knob to move to the Program/Sample Selection screen. (☞95)
Knob 2 A/D In = off, on
Turn this knob to switch the A/D-input feature on or off.
Knob 3 Source = L/R, L+R, L
Selects the input for the acoustic signal.
L/R Use input stereo signal; handle the signal as stereo.
L+R Use input stereo signal, but handle as monaural (mix the incom-
ing L-channel and R-channel signals).
L Use monaural input received on the left channel. (Select this
setting when using a monaural microphone. Be sure to connect
the microphone to the “L” connector on the A3000.)
