Chapter 5 EDIT Mode
EG Function
EG - FEGLevel (Filter-EG Levels)
Sets the levels for the filter EG.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI

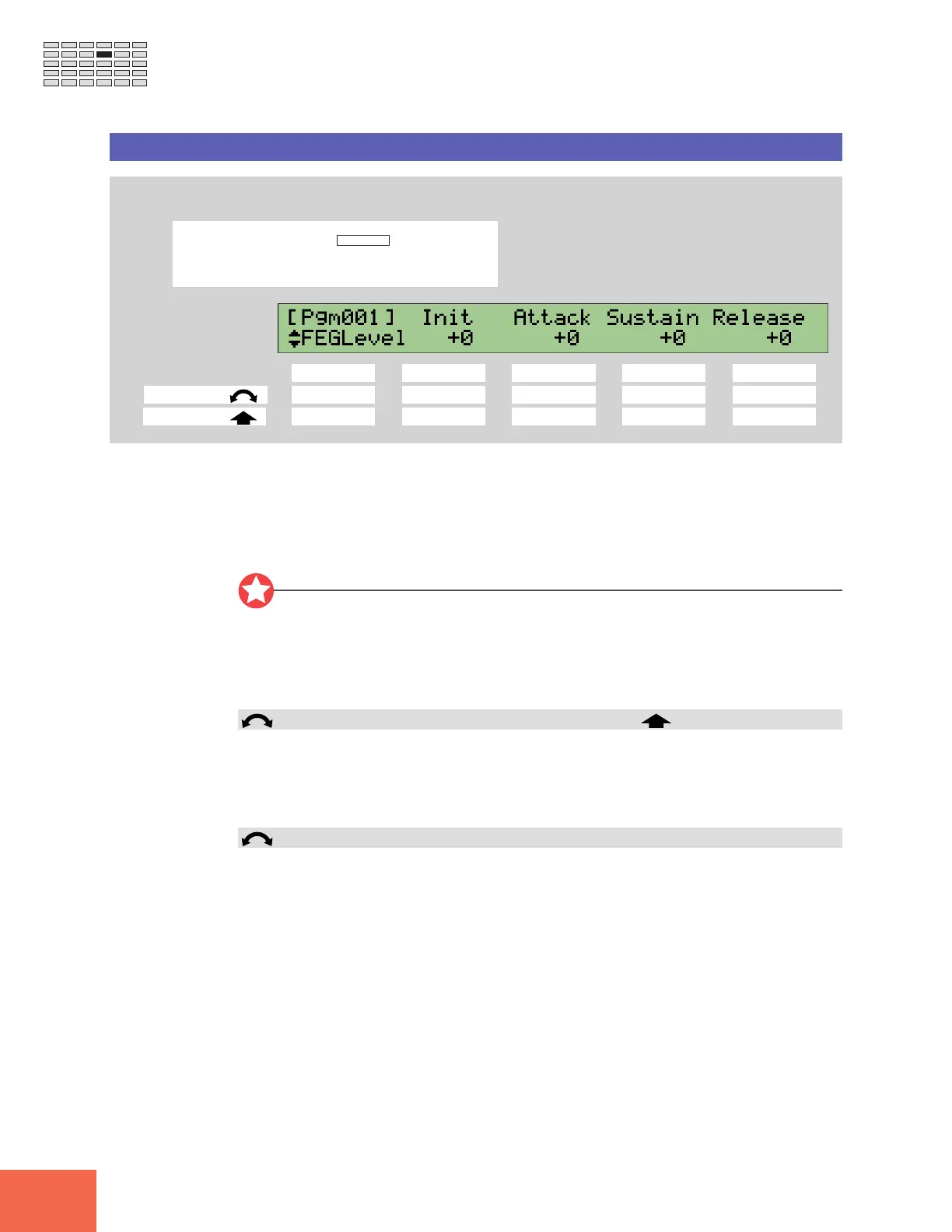

Turn Knob 1 to select FEGLevel.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔✔
Push action ✔ ----
Use this page together with the FEGRate page (☞192) to set up the sample’s FEG (filter
envelope generator). The FEG determines how the filter’s cutoff frequency shifts over
time as each note plays out.
The FEGLevel page (this page) sets the FEG’s levels (initial, attack, sustain, and release).
The FEGRate page sets the FEG’s various rates (attack, decay, and release rates).
Important
• It is not possible to set the actual cutoff frequency beyond a certain range. Regardless
of settings you make at this page, the cutoff frequency will not shift beyond these
limits.
• Filter-EG settings are not effective if the Type parameter on the Filter page (☞182) is
set to Bypass.
Knob 1 Change Page Select P/S
• Turn the knob to change to a different page within the EG function. Available pages
are: AEG, AEGMode, FEGRate, FEGLevel (this page), FEGMode, PEGRate, PEGLevel,
and PEGMode.
• Push the knob to move to the Program/Sample selection screen. (☞95)
Knob 2 Init = -127,...,+127
This value sets the initial level (the cutoff-frequency offset applied at time of Note On).
To Next Page
