Chapter 5 EDIT Mode
MAP/OUT Function
MAP/OUT - LvlScale (Level Scaling)
Sets the relation between output level and keyboard location.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI
Turn Knob 1 to select LvlScale.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔ -
Push action ✔ - ✔✔ -
This page determines how the sample’s output level varies across the keyboard.

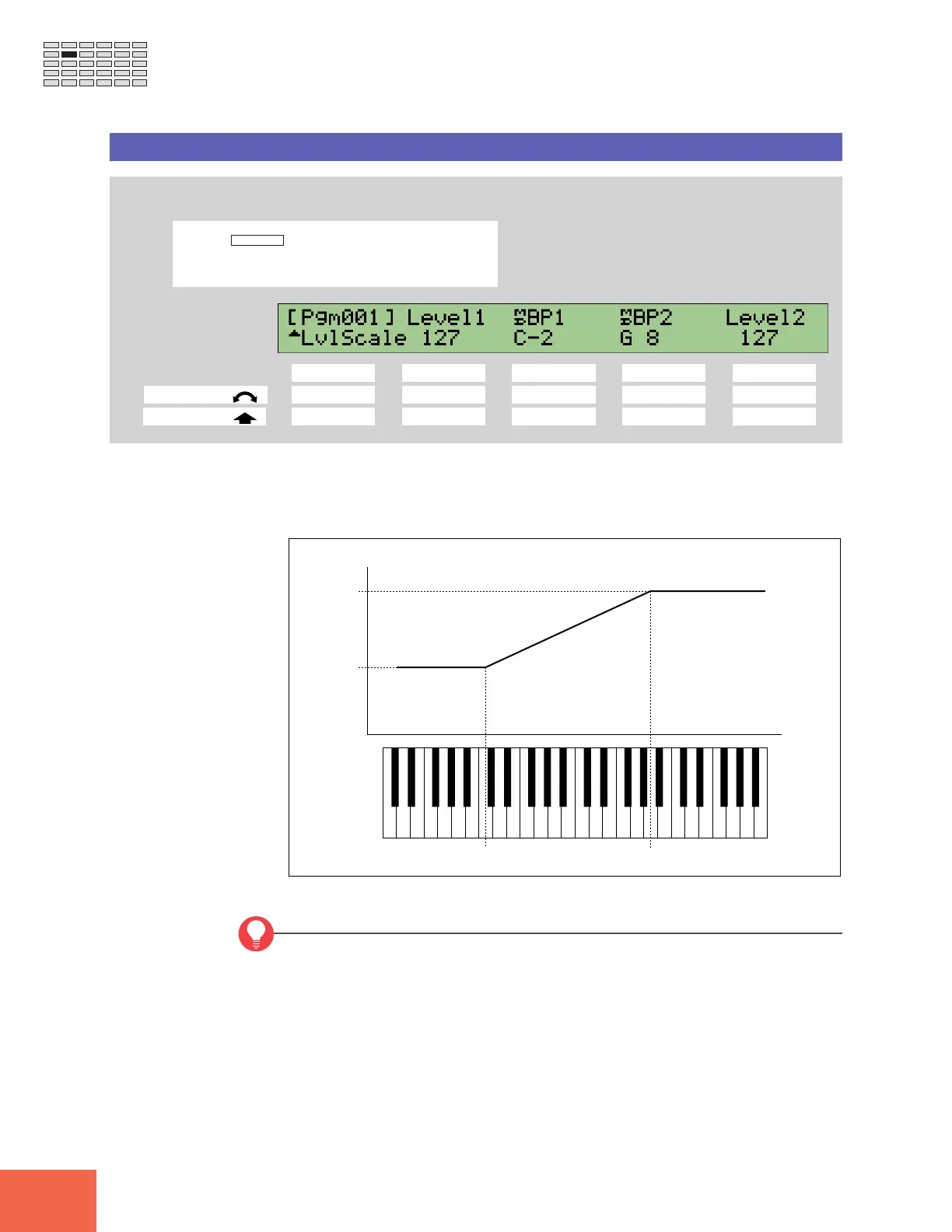

The following illustration shows the relationship. All notes from BP1 down produce
sound at Level 1, while all notes from BP2 up produce sound at Level 2. The sound level
changes at a constant rate over the keyboard range BP1 to BP2.
BP1
BP2
Level
Level2
Level1
Pitch (Note)
FYI
• Certain samples seem to get louder as pitch increases, while certain others seem to
become softer with rising pitch. The level-scaling feature described here lets you
correct for these variations, allowing you to produce an apparently uniform playback
level over the entire keyboard.
• You can use the Note setting in the UTILITY | SYSTEM Display page (☞302) to select
whether key values for the BP1 and BP2 settings are shown by name (“C-2” to “G8”)
or by the corresponding MIDI note number (0 to 127). Descriptions below assume
that you are using name display.
