170
Chapter 5 EDIT Mode
MAP/OUT Function
MAP/OUT Function
You use the MAP/OUT function to set the sample’s “original key,” key range, output
destinations, output level, tuning, and related settings.
FYI
• Keep in mind that the COMMAND key gives you rapid access to a number of helpful
commands while you are working with this function. For example, you can use the
COMMAND key when you want to save your edit results to disk, or when you want to
cancel your new changes and restore the previously saved data. (☞147)
• You can use the Note setting in the UTILITY | SYSTEM Display page (☞302) to select
whether key values for the BP1 and BP2 settings are shown by name (“C-2” to “G8”)
or by the corresponding MIDI note number (0 to 127). Descriptions below assume
that you are using name display.

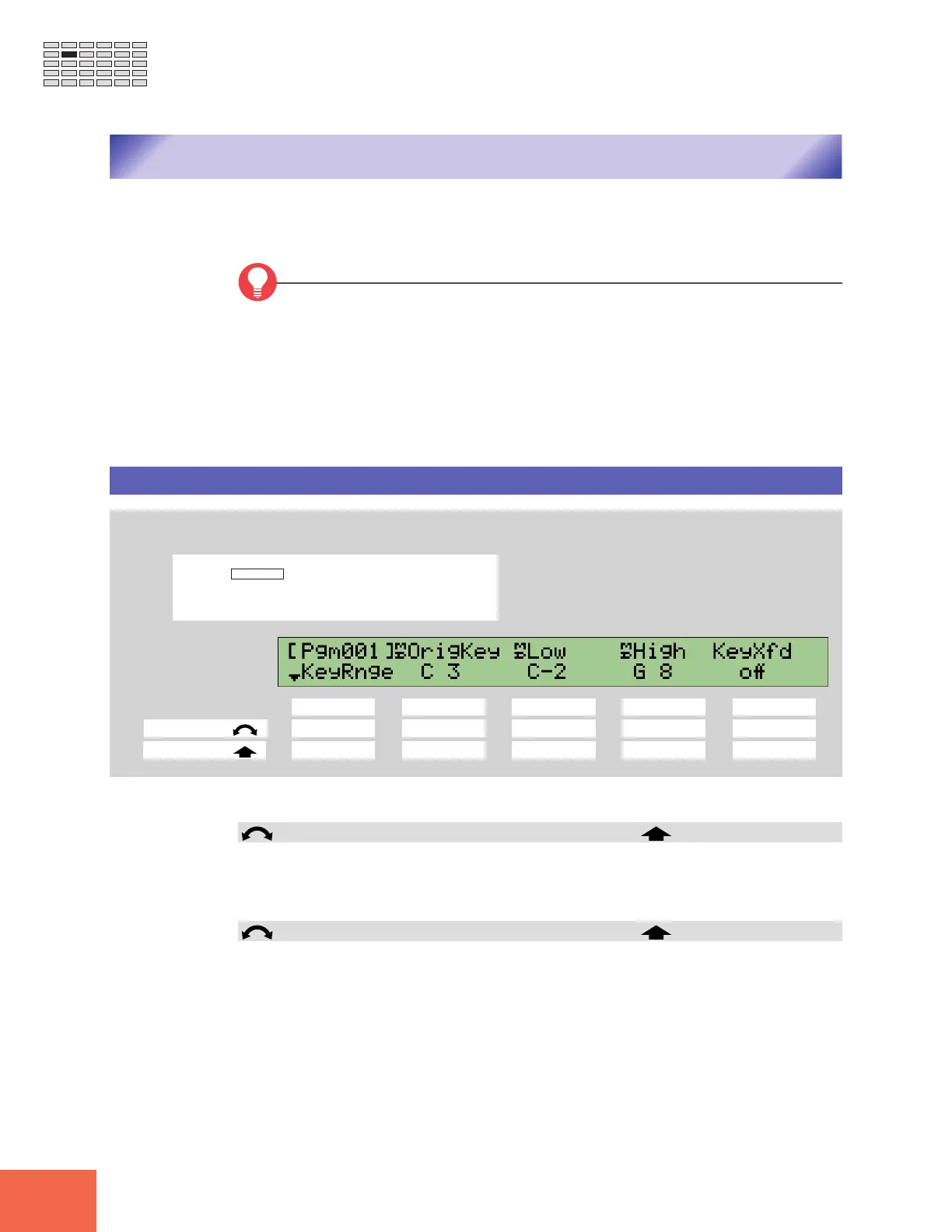

MAP/OUT - KeyRnge (Key Range)
Sets the sample’s “original key,” key range, and key crossfade.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI
Turn Knob 1 to select KeyRnge.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔✔
Push action ✔✔✔✔-
Use this page to set the sample’s “original key,” key range, and key crossfade.
Knob 1 Change Page Select P/S
• Turn the knob to change to a different page within the MAP/OUT function. Available
pages are: KeyRnge (this page), VelRnge, Lvl&Mode, Output, Pitch, Expand, and LvlScale.
• Push the knob to move to the Program/Sample Selection screen. (☞95)
Knob 2 OrigKey = C-2,...,G8 MIDI IN
• Turn the knob to set the sample’s “original key” — the key that best represents the
sample’s inherent pitch.
• Push the knob if you want to set the value using an external MIDI device. The knob
indicator begins blinking, indicating that the A3000 is ready to receive MIDI input.
Transmit the appropriate note value, then lock the setting in by pressing the knob
again (or else press a different MIDI IN knob, or change to a different screen).
