Chapter 5 EDIT Mode
EG Function
EG - PEGLevel (Pitch-EG Levels)
Sets the levels for the pitch EG.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI

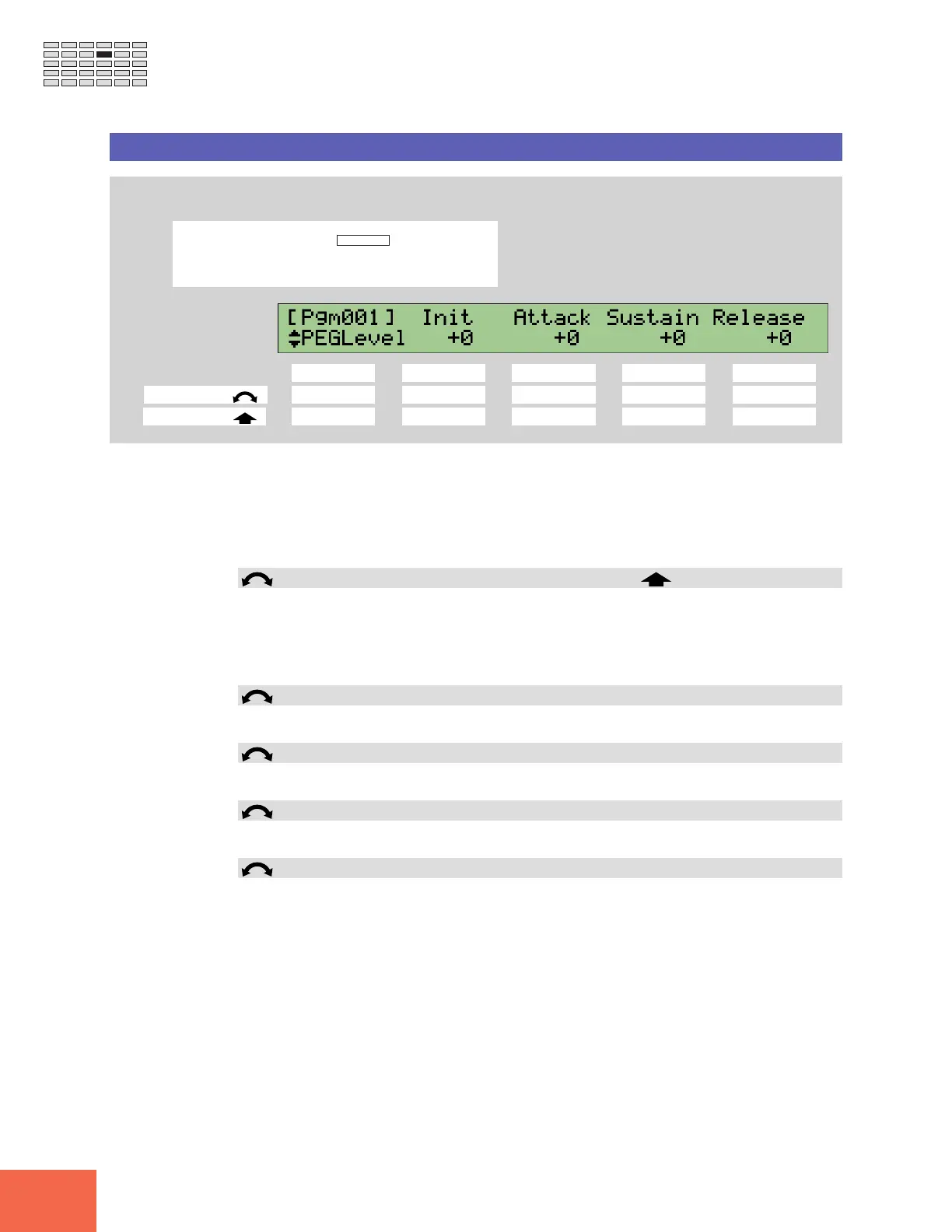

Turn Knob 1 to select PEGLevel.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔✔
Push action ✔ ----
Use this page together with the PEGRate page (☞198) to set up the sample’s PEG (pitch
envelope generator). The PEG determines how the pitch varies over time as each note
plays out.
The PEGLevel page (this page) sets the PEG’s levels (initial, attack, sustain, and release).
The PEGRate page sets the PEG’s various rates (attack, decay, and release rates).
Knob 1 Change Page Select P/S
• Turn the knob to change to a different page within the EG function. Available pages
are: AEG, AEGMode, FEGRate, FEGLevel, FEGMode, PEGRate, PEGLevel (this page),
and PEGMode.
• Push the knob to move to the Program/Sample Selection screen. (☞95)
Knob 2 Init = -127,...,+127
This value sets the initial level (the pitch offset applied at time of Note On).
Knob 3 Attack = -127,...,+127
This value sets the attack level. (See illustration, page 198.)
Knob 4 Sustain = -127,...,+127
This value sets the sustain level. (See illustration, page 198.)
Knob 5 Release = -127,...,+127
This value sets the release level. (See illustration, page 198.)
