Chapter 5 EDIT Mode
MAP/OUT Function
MAP/OUT - Output
Sets the sample’s output destinations and output levels.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI

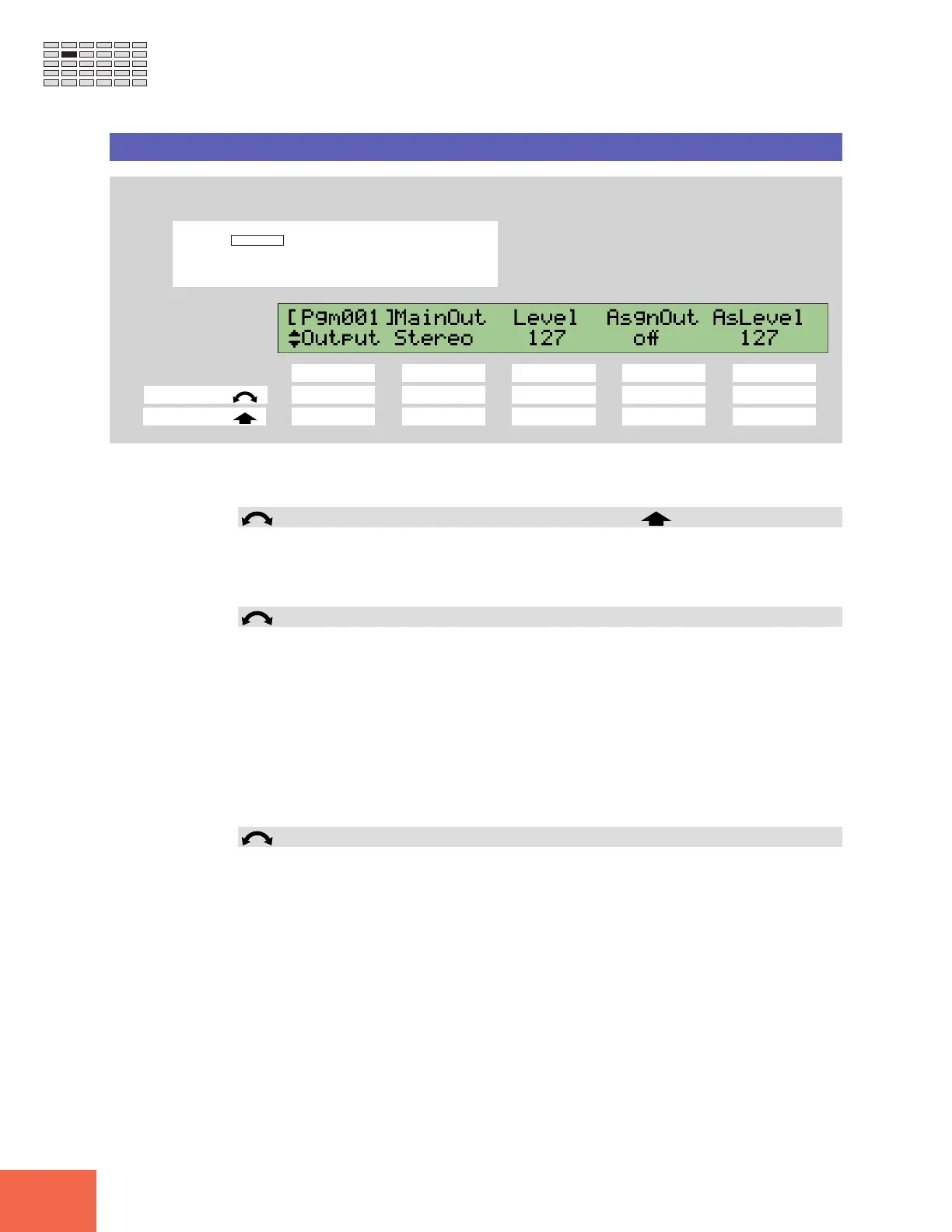

Turn Knob 1 to select Output.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔✔
Push action ✔ ----
Use this page to set the sample’s main and assignable output destinations, and the out-
put level to each.
Knob 1 Change Page Select P/S
• Turn the knob to change to a different page within the MAP/OUT function. Available
pages are: KeyRnge, VelRnge, Lvl&Mode, Output (this page), Pitch, Expand, and LvlScale.
• Push the knob to move to the Program/Sample Selection screen. (☞95)
Knob 2 MainOut = off, Stereo, Effect1, Effect2, Effect3
Selects the sample’s main output destination. Available settings are as follows.
off The signal does not flow to any main output. Use this setting
when you want to output the sample through assignable outputs
only (see below).
Stereo Output the sample signal directly to the stereo outputs, bypass-
ing all effects.
Effect1,...,Effect3 Pass the sample’s signal through the selected effect block (Ef-
fect 1, Effect 2, or Effect 3), then output the result to the stereo
outputs.
Knob 3 Level = 0,...,127
Sets the output level to the main output.
