Chapter 5 EDIT Mode
EG Function
EG - AEGMode (AEG Mode Settings)
Sets up the AEG’s scaling, velocity sensitivity, and attack type.
PROGRAM
TRIM / LOOP
RECORD
PROGRAM
TOTAL EQ
PLAY
EDIT
REC
DISK
UTILITY
SAMPLE
MAP / OUT
SETUP
SAMPLE
PANEL PLAY
EASY EDIT
FILTER
METER
SEQUENCE
SEQUENCE
EFFECT
EG
EFFECT
VOLUME
MASTER
SETUP
LFO
EXT CTRL
DISK
SYSTEM
CONTROL
MIDI / CTRL
MONITOR
IMPORT
MIDI

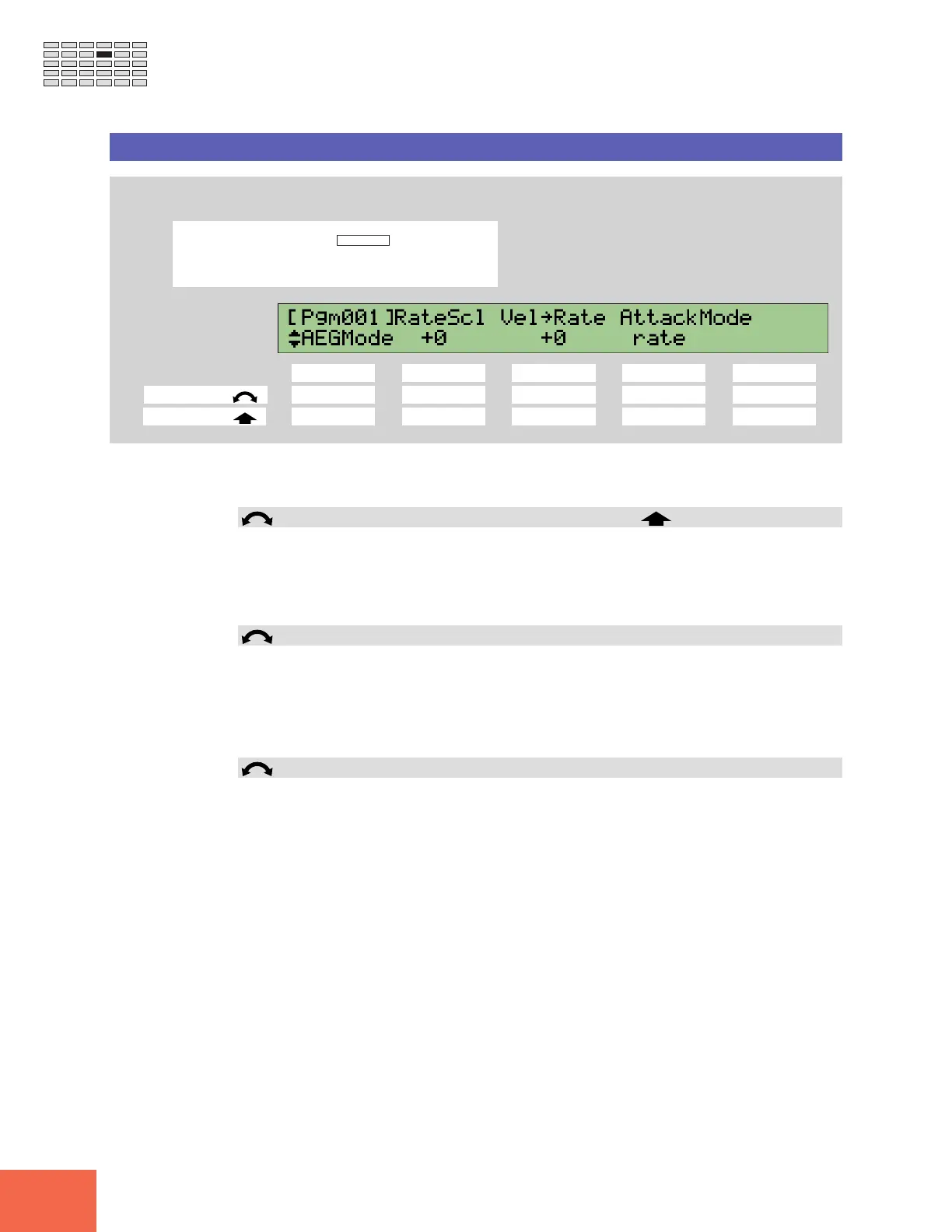

Turn Knob 1 to select AEGMode.
Knob 1 Knob 2 Knob 3 Knob 4 Knob 5
Turn action ✔✔✔✔ -
Push action ✔ ----
Use this page to determine how AEG rates vary with velocity and keyboard location, and
to select the AEG attack type (rising or flat).
Knob 1 Change Page Select P/S
• Turn the knob to change to a different page within the EG function. Available pages
are: AEG, AEGMode (this page), FEGRate, FEGLevel, FEGMode, PEGRate, PEGLevel,
and PEGMode.
• Push the knob to move to the Program/Sample Selection screen. (☞95)
Knob 2 RateScl = -7,...,+7
This setting determines how the AEG rates (attack, decay, and release rates) vary ac-
cording to keyboard location (pitch) of the played note. Set the value to 0 to keep rates
the same for all keyboard notes. Positive settings cause rates to increase as you move up
the keyboard, while negative settings cause rates to decrease as you move up the key-
board.
Knob 3 Vel → Rate = -63,...,+63
This value sets the AEG’s velocity sensitivity: the amount by which the AEG rates (at-
tack, decay, and release rates) vary in response to the velocity (force) of the played note.
Set the value to 0 to keep rates the same for all velocities. Positive settings cause rates to
increase as velocity increases, while negative settings cause rates to decrease as velocity
increases.
