Yamaha A3000 User Manual

Installing SIMMs
313
Appendix
Appendix
Bottom Top
Rear panel
2.
Switch off the A3000 power, and unplug the power cord from the wall outlet.
3.
Remove the screws holding the A3000 top cover in place.

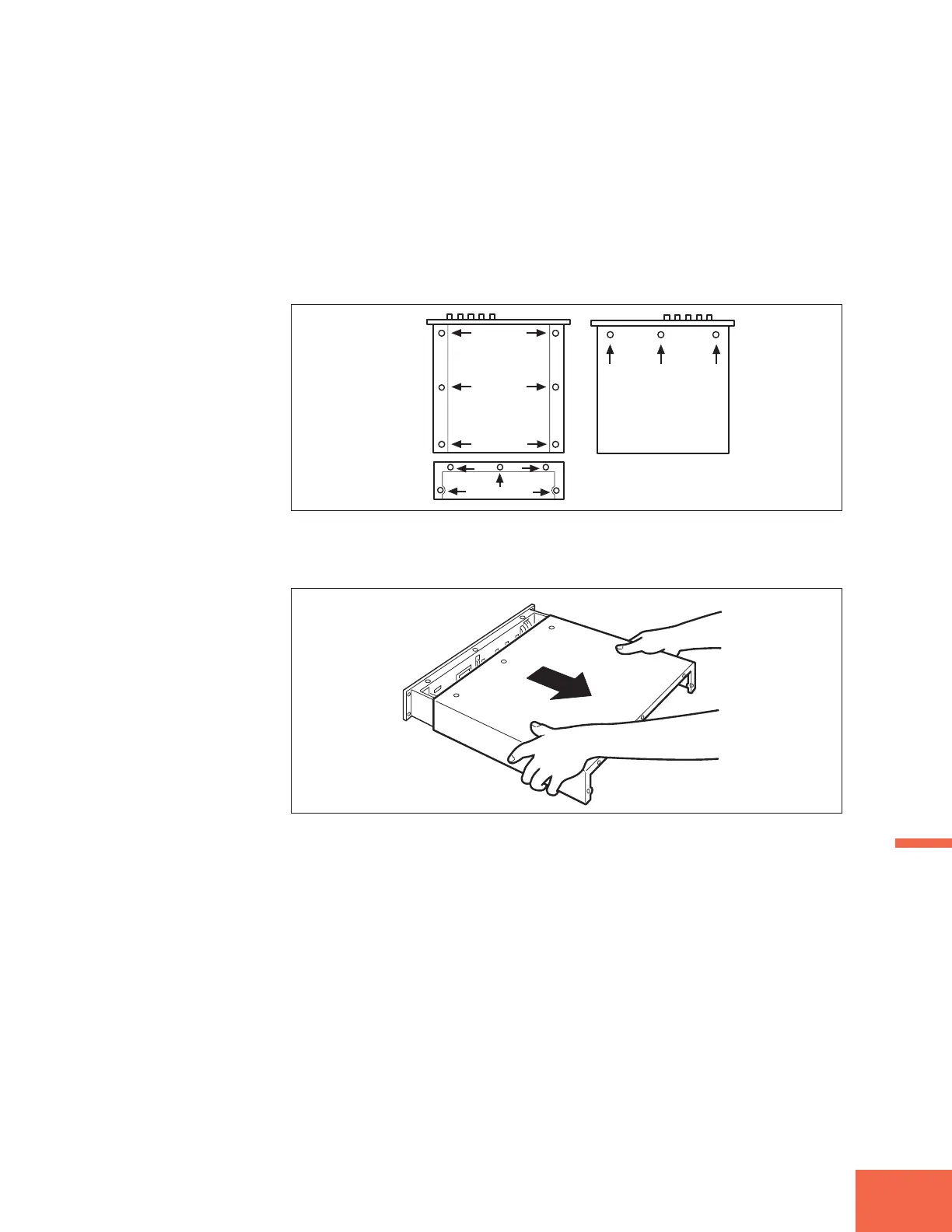

Set the A3000 upside down on the workbench and unscrew the 6 screws along the sides
of the bottom (see drawing). Then turn the A3000 right side up again and unscrew the 3
screws along the top. Then unscrew the 5 screws holding the cover to the rear panel.
4.
Hold the two sides of the cover and slide the cover straight back (over the rear
panel) and off.

Yamaha A3000 Specifications

General

Sampling Rate	44.1kHz
MIDI	In/Out/Thru
Type	Sampler
Effects	Reverb, Chorus, Delay
Display	LCD
Storage	Floppy disk drive
