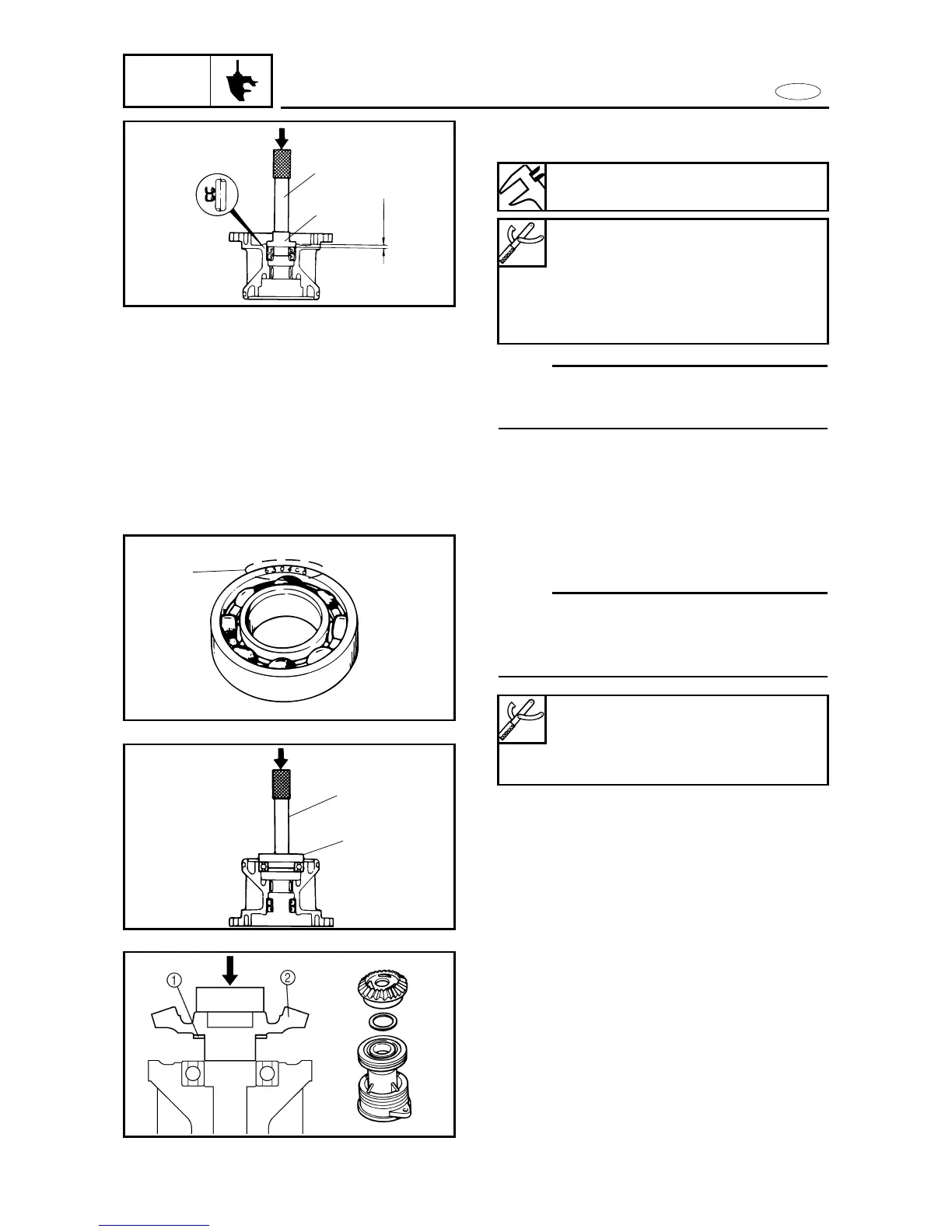

PROPELLER SHAFT HOUSING ASS’Y (F15A/F9.9C)
LOWR
a
1
2
3. Install:
9 Ball bearing
NOTE:
Install the ball bearing with its manufactur-
er’s marks a facing towards the reverse
gear.
6-12
4. Install:
9 Reverse gear shim(s) 1
9 Reverse gear 2
Driver rod 1:
YB-06071/90890-06606
Ball bearing attachment 2:
YB-06015/90890-06632
1

2
a
2. Install:
9 Oil seals
NOTE:
First, fully install the lower oil seal and
then the upper.
Oil seal installer 1:
(Needle bearing attachment)
N.A./90980-06614
Driver rod 2:
YB-06071/90890-06604
Oil seal depth a:
3.0 ~ 3.5 mm (0.12 ~ 0.14 in)
