E
STEERING HANDLE ASS’Y (FT9.9DMH, FT9.9DEH)
BRKT
7-6

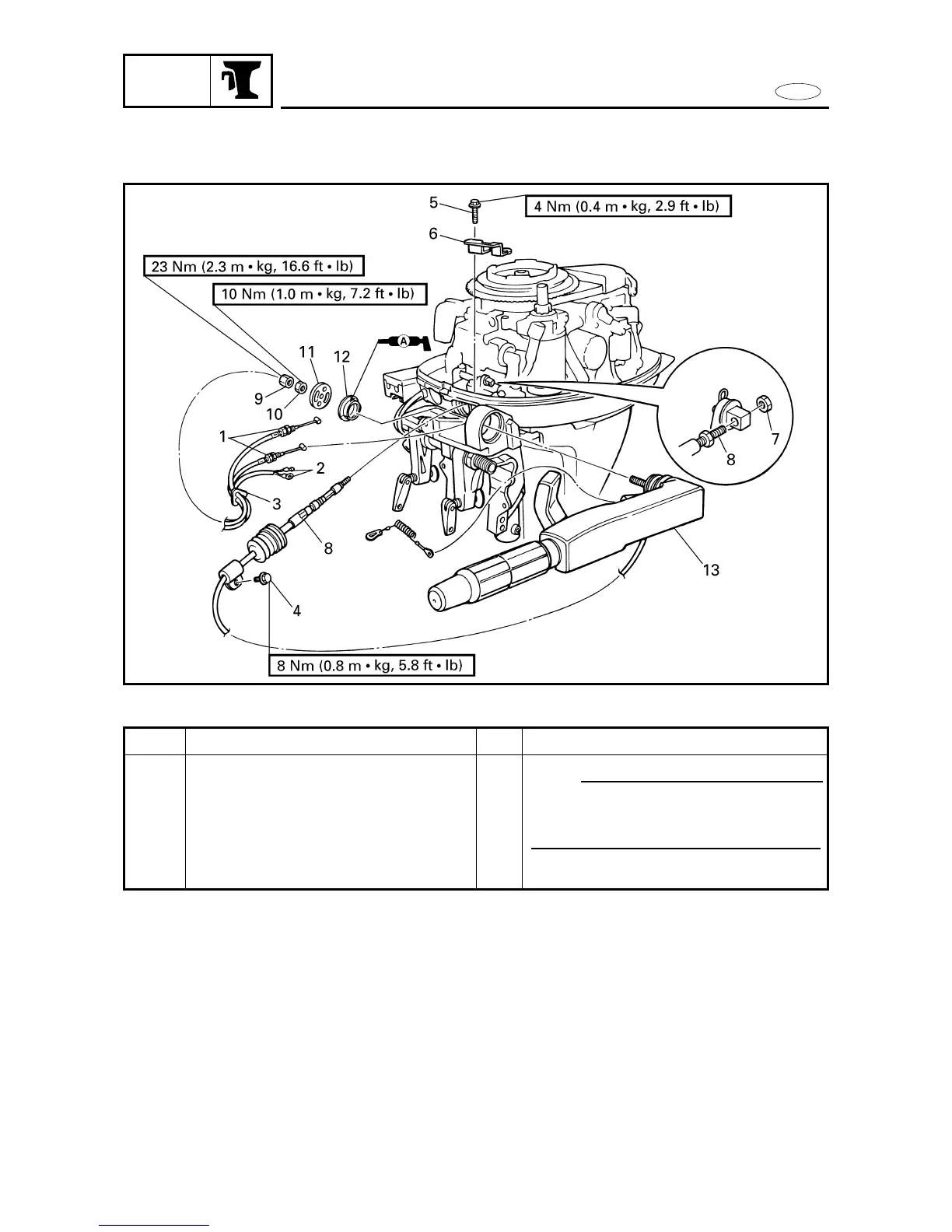

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
10
11
12
13
Q’ty
1
1
1
1
Service points
NOTE:
Tighten the nut to the specified torque.
Then while still holdingthe nut, tighten
the the locknut to the specified torque.
Reverse the removal steps for installation.
Procedure/Part name
Nut
Plate
Bushing
Steering handle ass’y (for MH/EH models)
To Next Page
