YAMAZAKI MAZAK VORTEX i Series User Manual

MACHINING PROGRAM 4
4-79

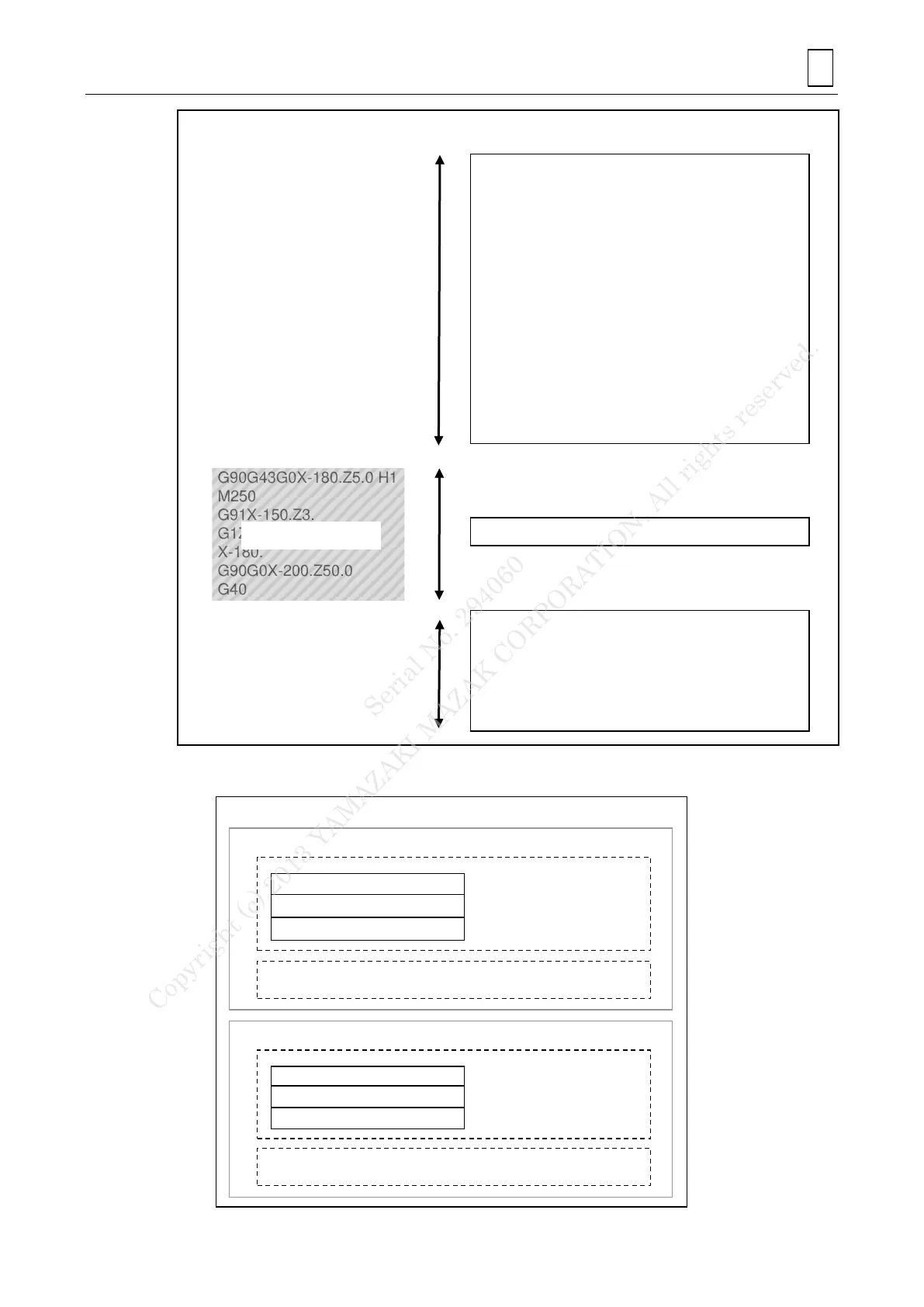

2. Program composition
Program composition element
Command of upper turret
Machining motion
Instruction in
Preparation motion
For machining
Upper turret
HD1
Milling
Command of lower turret
Machining motion
Instruction in
Preparation motion
For machining
Lower turret
HD2
Turning
G109L2
M902
M302
G00G18G90G95G54G96
G40G49G80G67G69
G91G28X0
G28Z0
M950
T101000
G91G28X0
G28Z0
G92S1500R1
G96M303S200R1
G10.9X1
M08
M951
G90G43G0X-180.Z5.0 H1
M250
G91X-150.Z3.
G1Z-10.F0.25
X-180.
G90G0X-200.Z50.0
G40
M305
M952
M09
G91G28X0
G28Z0
M30
(Upper turret: HD1-Milling, Lower turret: HD2- Turning (2/2))
jiku
Preparation motion for machining
 G109L2: Lower turret selection
 M902: HD2 spindle selection
 M302: C-axis disconnect / turning mode
 G95: Feed per revolution
 G96: Constant surface speed control ON
 T101000: Tool change (TNo.101 Lower)
 G92S1500: Spindle speed range setting
 G96S200: Surface speed 200 m/min
 R1: Set the HD2
 M303: Turning spindle2 forward rotation
 G10.9X1: Diameter data input mode
 M08: Flood coolant ON
Machining motion
End motion for machining
 M305: Turning spindle2 Rotation stop
 M09: All coolants OFF
 Each axis positioning to zero return
 M30: Reset and rewind
Machining
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
