YASKAWA SGDM Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.12 Connectors for SGMCS Servomotors
5-30

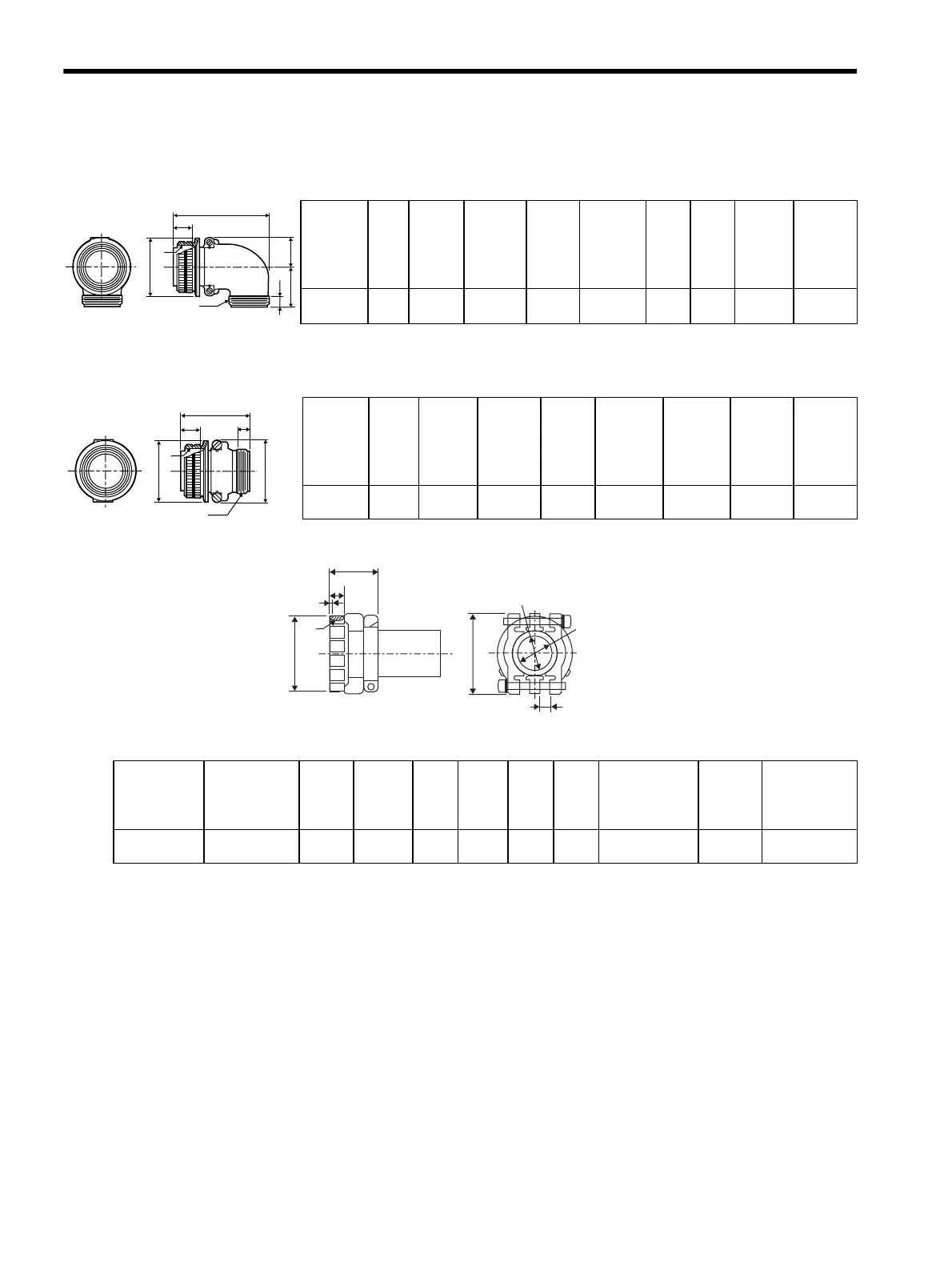

(b) MS3108B: L-shaped Plug Shell Dimensional Drawings
(c) MS3106B: Straight Plug Shell Dimensional Drawings
(d) MS3057A-A Cable Clamp with Rubber Bushing Dimensional Drawings
Units: mm ( in)
Model
Shell
Size
Joint
Screw
A
Length of
Joint
Portion
J±0.12
Overall
Length
L max.
Outer
Diameter
of Joint
Nut
φQ
+0
-0.38
R
±0.5
U
±0.5
Cable
Clamp
Set
Screw
V
Effective
Screw
Length W
max.
MS3108B
18 1 1/8 -
18UNEF
18.26
(0.719)
68.27
(2.69)
34.13
(1.34)
20.5
(0.81)
30.2
(1.19)
1-
20UNEF
9.53
(0.38)
Units: mm (in)
Model
Shell
Size
Joint
Screw
A
Length of
Joint
Portion
J±0.12
Overall
Length
L max.
Outer
Diameter
of Joint
Nut
φQ
+0
-0.38
Cable
Clamp Set
Screw
V
Effective
Screw
Length W
max
Maxi-
mum
Width Y
max.
MS3106B
18 1 1/8 -
18UNEF
18.26
(0.719)
52.37
(2.06)
34.13
(1.34)
1-20UNEF 9.53
(0.38)
42
(1.65)
U
R
W
J
A
Q
L
V
J
W
A
V
Y
Q
L
G
φE
(Inner cable clamp diameter)
H (Slide range)
φJ (Inner bushing diameter)
A
V
φQ
1.6
C
Units: mm (in)
Cable Clamp
Type
Applicable
Connector
Shell Size
Overall
Length
Effective
Screw
Length
Set Screw
Outer
Diameter
Attached
Bushing
A±0.7 C φEG±0.7 H φJVφ Q ± 0.7
MS3057-10A
18 23.8
(0.94)
10.3
(0.41)
15.9
(0.63)
31.7
(1.25)
3.2
(0.13)
14.3
(0.56)
1-20UNEF
30.1 (1.19)
AN3420-10
