YASKAWA SGDM Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

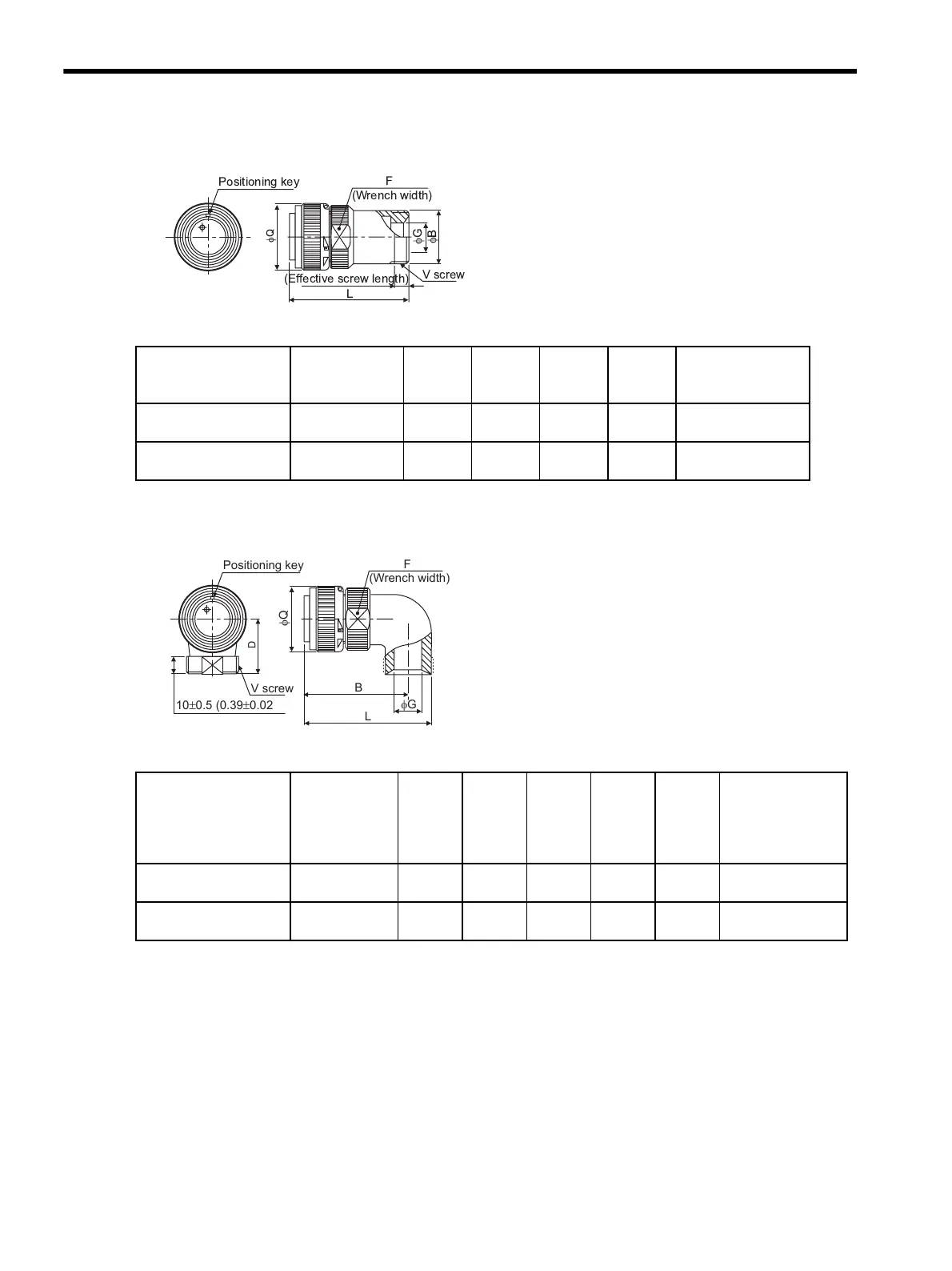

5.2.13 Connector Dimensional Drawings
5-36
(b) Straight Plugs
Note: For the conduit grounding, contact manufacturer of the conduit being used.
(c) L-shaped Plugs
Note: For the conduit grounding, contact manufacturer of the conduit being used.
Units: mm (in)
Model
Outer Diameter
of Nut
φQ±0.8 (±0.03)
φB±0.2
(±0.01)
L±0.8
(±0.03)
F±0.5
(±0.02)
φG±0.5
(±0.02)
Cable Clamp
Mounting Screw
V
JL04V-6A20-15SE-EB
37.3 (1.47)
29.72
(1.17)
58.5
(2.30)
33 (1.30) 17 (0.67) 1-3/16-18UNEF-2A
JL04V-6A22-22SE-EB
40.5 (1.59)
30.05
(1.18)
67.63
(2.66)
35 (1.38) 17 (0.67) 1-3/16-18UNEF-2A
Units: mm (in)
Model
Outer
Diameter of
Nut
φQ
B±0.8
(±0.03)
L±0.8
(±0.03)
D±0.8
(±0.03)
F±0.5
(±0.02)
φG±0.5
(±0.02)
Cable Clamp
Mounting Screw
V
JL04V-8A20-15SE-EB
37.3 (1.47)
60.5
(2.38)
74.2
(2.92)
32 (1.26) 33 (1.30) 17 (0.67) 1-3/16-18UNEF-2A
JL04V-8A22-22SE-EB
40.5 (1.59)
60.23
(2.37)
73.93
(2.91)
32 (1.26) 35 (1.38) 17 (0.67) 1-3/16-18UNEF-2A
B
G
B
Q
B
B
(Wrench width)
F
L
(Effective screw length)
V screw
Positioning key
V screw
φG
(Wrench width)
F
L
B
φQ
Positioning key
D
10±0.5 (0.39±0.02)
(Effective screw length)
+0
-0.38 (-0.015)
