5.8 Peripheral Devices
5-67
5

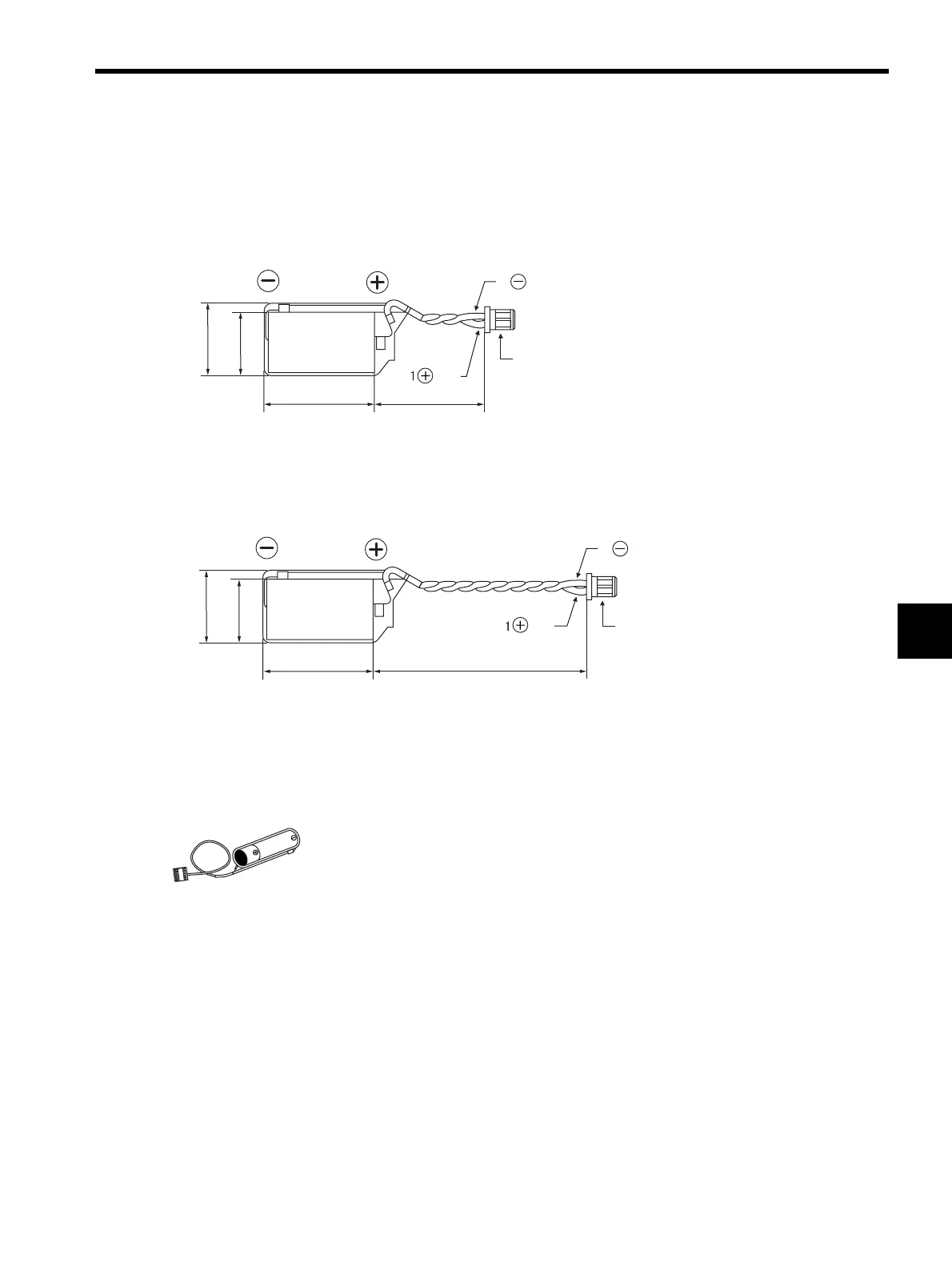

(b) Dimensional Drawing
• JZSP-BA01
• JZSP-BA01-1
(2) Battery Connected to the Host Controller
When connecting the battery to the host controller, select the battery in accordance with the specifications of the
host controller.
Use the battery ER6 VC3 or the equivalent:
3.6 V 2000 mAh manufactured by Toshiba Battery Co., Ltd.
Red
2 Black
26 (1.02) 20±3 (0.79±0.12)
17 (0.67)
14.5 (0.57)
Connector
Lithium battery ER3V
3.6 V 1000 mAh
Manufactured by Toshiba Battery Co., Ltd.
Units: mm (in)
Red
Connector
2 Black
26 (1.02)
17 (0.67)
14.5 (0.57)
50±5 (1.97±0.20)
Lithium battery ER3V
3.6 V 1000 mAh
Manufactured by Toshiba Battery Co., Ltd.
Units: mm (in)
