YASKAWA SGDM Series User Manual

5.8 Peripheral Devices
5-77
5

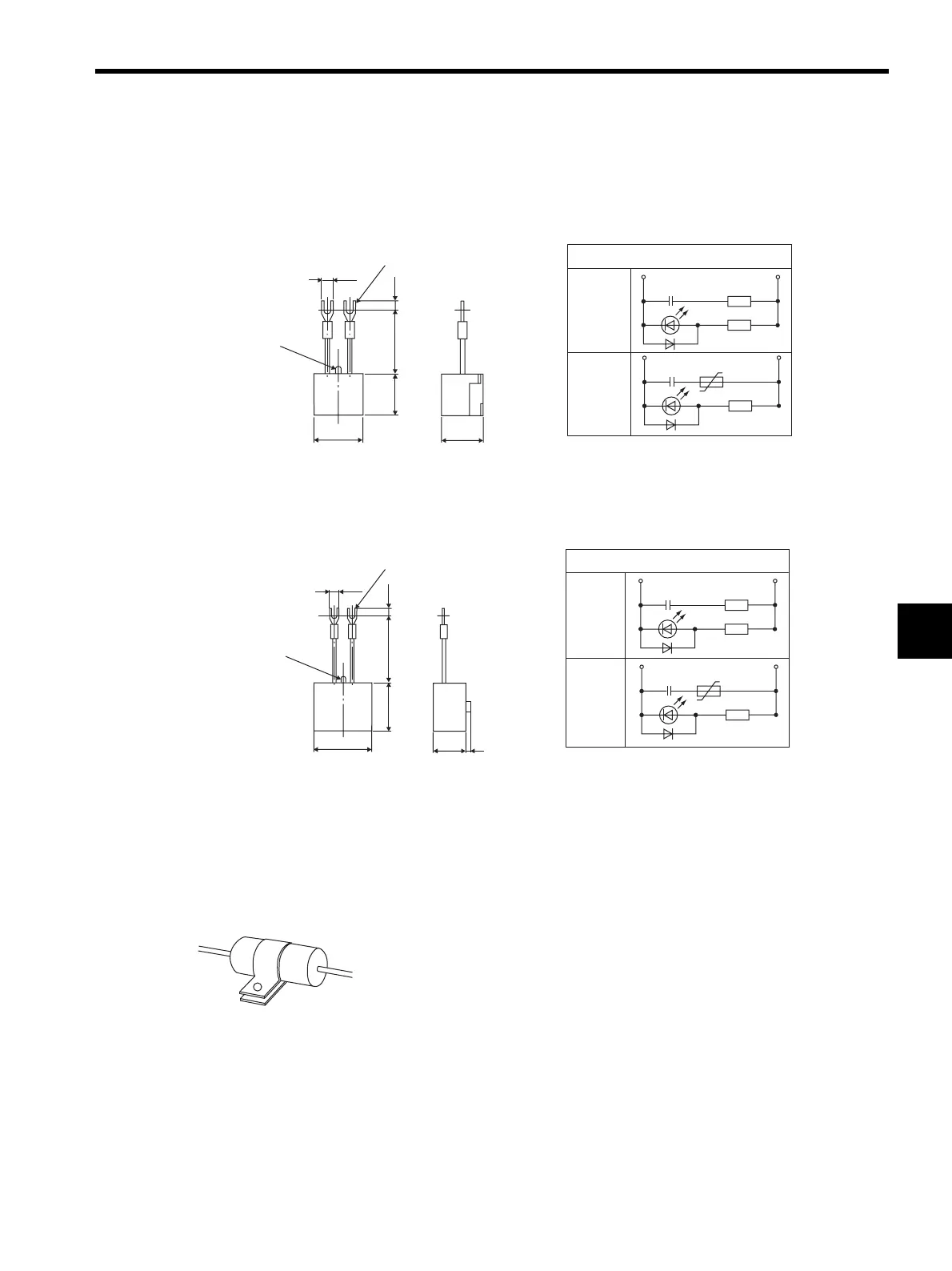

(c) Dimensional Drawings
• Model TU-25
• Model TU-65
(2) Surge Suppressor for Brake Power Supply
When using a servomotor with holding brake, install a surge suppressor near the brake coil to prevent the power
supply noises. The surge suppressor handled by Okaya Electric Industries Co., Ltd. is recommended.
(a) Model: CR50500BL
(b) Specifications
Units: mm (in)
Approx. mass: 0.02 kg (0.04 lb)
6.2
(0.24)
Operation
indicator
(LED)
M3.5 Connection terminals
4.7 (0.19)
34 (1.34)
22 (0.87)
26 (1.02)
22 (0.87)
CR
Internal Connection Diagram
Varistor
Units: mm (in)
Approx. mass: 0.035 kg (0.077 lb)
Operation
indicator
(LED)
6.2
(0.24)
M3.5 Connection terminals
4.7
(0.19)
44 (1.73)
32 (1.26)
37 (1.46)
21 (0.83)
3 (0.12)
CR
Internal Connection Diagram
Varistor
Power supply: 250 VAC
Capacitance: 0.5 µF ± 20%
Resistance: 50 Ω(1/2 W) ± 30%
