8.4 Absolute Encoders
8-31
8

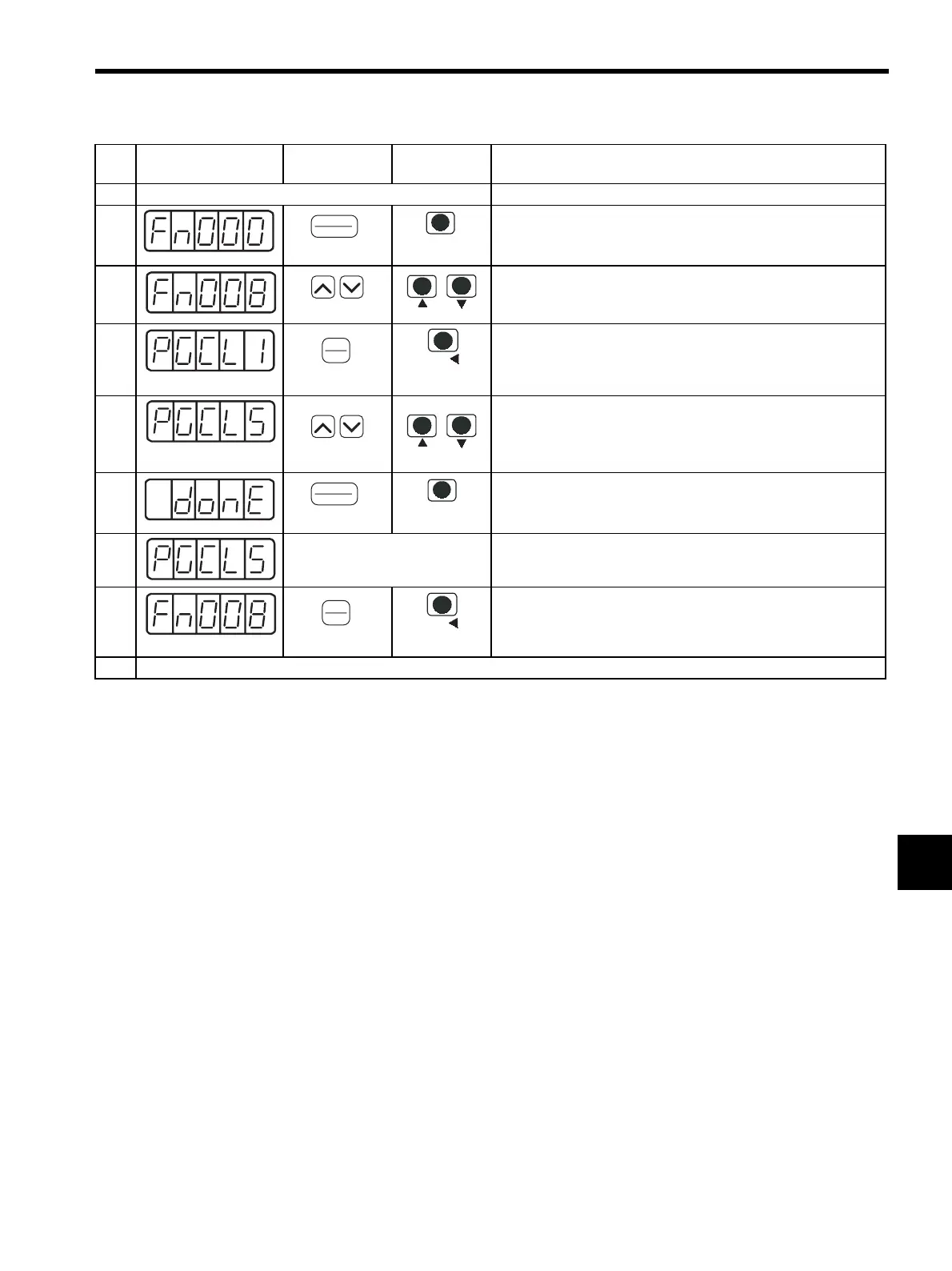

Step
Display after
Operation
Digital
Operator
Panel
Operator
Description
1
Alarm generated
2 Press the DSPL/SET or MODE/SET Key to select the utility func-
tion mode.
3 Press the UP or DOWN Key to select parameter Fn008.
Note: The digit that can be set will blink.
4 Press the DATA/ENTER Key once, or DATA/SHIFT Key for
more than one second.
The display will be as shown at the left.
5 Continue pressing the UP Key until PGCL5 is displayed.
Note: If there is a mistake in the key operation, “nO_OP” will
blink for about one second. The panel operator or digital
operator will return to the utility function mode.
6 Press the DSPL/SET or MODE/SET Key. This will clear the mul-
titurn data of the absolute encoder.
When completed, “donE” will blink for about one second.
7
About one second later
After “donE” is displayed, “PGCL5” will be displayed again.
8 Press the DATA/ENTER Key once, or DATA/SHIFT Key for
more than one second to return to the Fn008 display of the utility
function mode.
9 Turn OFF the power, and then turn it ON again to make the setting valid.
DSPL
SET
(DSPL/SET Key)
MODE/SET
(MODE/SET Key)
DATA
ENTER
(DATA/ENTER Key)
DATA/
(DATA/SHIFT Key)
(Press at least 1 s.)
DSPL
SET
(DSPL/SET Key)
MODE/SET
(MODE/SET Key)
DATA
ENTER
(DATA/ENTER Key)
DATA/
(DATA/SHIFT Key)
(Press at least 1 s.)
