YASKAWA SGDM Series User Manual

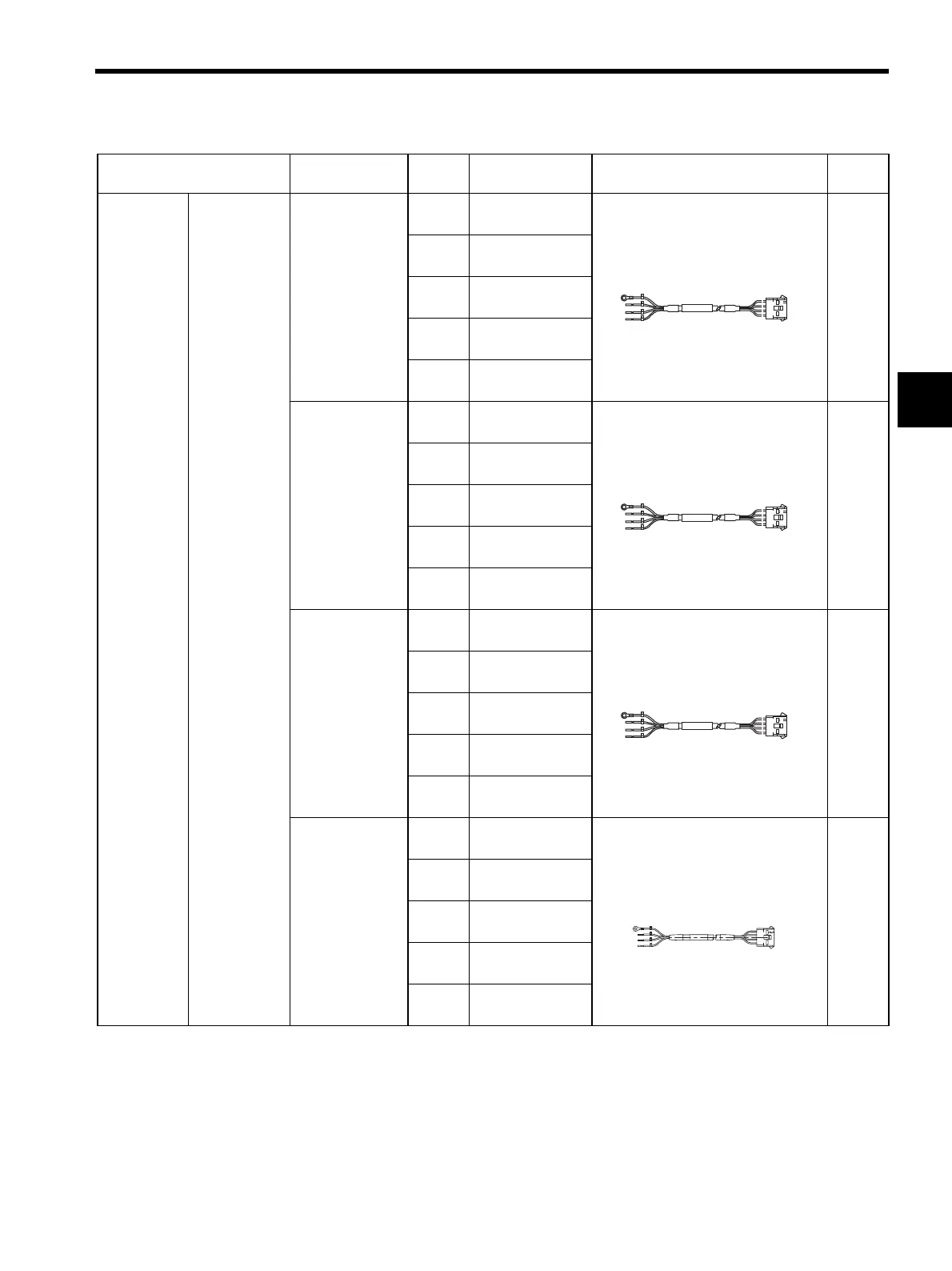

2.5 Selecting Cables
2-21
2
Note: When using the cable for the moving section such as robots, use a flexible type cable.
For the safety precautions, see 5.7 I/O Signal Cables for CN1 Connector.
Name
Servomotor
Model
Length Type Specifications
Refer-
ence
d
Servomotor
Main Circuit
Cables and
Connectors
Without
brakes
SGMAH
SGMPH
100V: 30 to
200 W
200V: 30 to
750 W
3 m
(9.84 ft)
JZSP-CMM00-03
5.1.1
5 m
(16.4 ft)
JZSP-CMM00-05
10 m
(32.8 ft)
JZSP-CMM00-10
15 m
(49.2 ft)
JZSP-CMM00-15
20 m
(65.6 ft)
JZSP-CMM00-20
SGMPH-15A
1.5 kW
3 m
(9.84 ft)
JZSP-CMM20-03
5.1.1
5 m
(16.4 ft)
JZSP-CMM20-05
10 m
(32.8 ft)
JZSP-CMM20-10
15 m
(49.2 ft)
JZSP-CMM20-15
20 m
(65.6 ft)
JZSP-CMM20-20
400 V SGMAH
300 W, 650 W
400 V SGMPH
200 W to 1.5 kW
3 m
(9.84 ft)
JZSP-CMM40-03
5.1.5
5 m
(16.4 ft)
JZSP-CMM40-05
10 m
(32.8 ft)
JZSP-CMM40-10
15 m
(49.2 ft)
JZSP-CMM40-15
20 m
(65.6 ft)
JZSP-CMM40-20
Flexible type
SGMAH
SGMPH
100V: 30 to
200 W
200V: 30 to
750 W
3 m
(9.84 ft)
JZSP-CMM01-03
5.1.3
5 m
(16.4 ft)
JZSP-CMM01-05
10 m
(32.8 ft)
JZSP-CMM01-10
15 m
(49.2 ft)
JZSP-CMM01-15
20 m
(65.6 ft)
JZSP-CMM01-20
Servomotor
end
SERVOPACK
end
Servomotor
end
SERVOPACK
end
Servomotor
end
SERVOPACK
end
Servomotor
end
SERVOPACK
end
