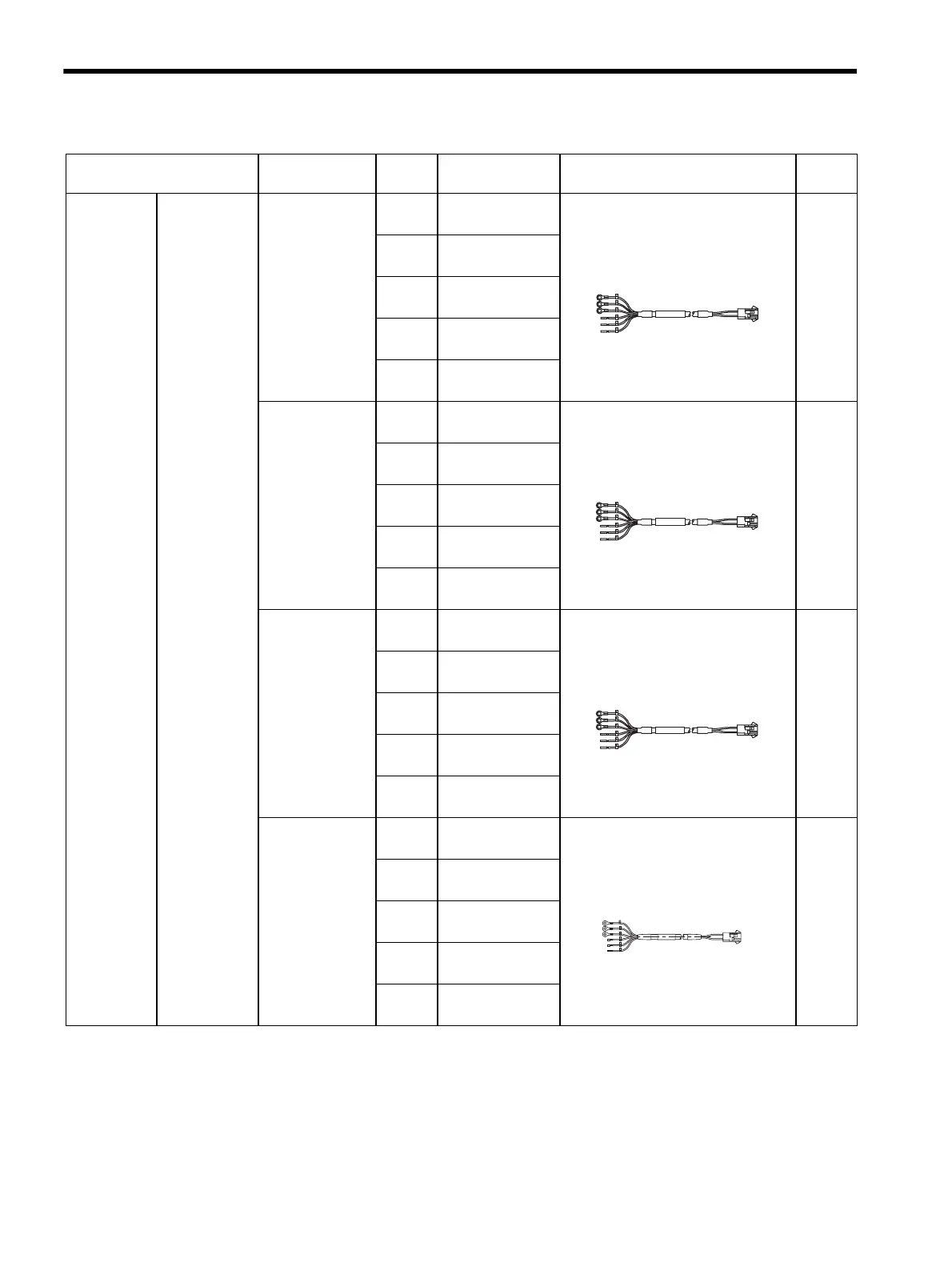

YASKAWA SGDM Series User Manual

2 Selections
2.5.1 Cables for SGMAH and SGMPH Servomotors
2-22
Note: When using the cable for the moving section such as robots, use a flexible type cable. For the safety precau-
tions, see 5.7 I/O Signal Cables for CN1 Connector.
Name
Servomotor
Model
Length Type Specifications
Refer-
ence
d
Servomotor
Main Circuit
Cables and
Connectors
(Cont’d)
With brakes
SGMAH
SGMPH
100V: 30 to
200 W
200V: 30 to
750 W
3 m
(9.84 ft)
JZSP-CMM10-03
5.1.2
5 m
(16.4 ft)
JZSP-CMM10-05
10 m
(32.8 ft)
JZSP-CMM10-10
15 m
(49.2 ft)
JZSP-CMM10-15
20 m
(65.6 ft)
JZSP-CMM10-20
SGMPH-15A
1.5 kW
3 m
(9.84 ft)
JZSP-CMM30-03
5.1.2
5 m
(16.4 ft)
JZSP-CMM30-05
10 m
(32.8 ft)
JZSP-CMM30-10
15 m
(49.2 ft)
JZSP-CMM30-15
20 m
(65.6 ft)
JZSP-CMM30-20
400 V SGMAH
300 W, 650 W
400 V SGMPH
200 W to 1.5 kW
3 m
(9.84 ft)
JZSP-CMM50-03
5.1.2
5 m
(16.4 ft)
JZSP-CMM50-05
10 m
(32.8 ft)
JZSP-CMM50-10
15 m
(49.2 ft)
JZSP-CMM50-15
20 m
(65.6 ft)
JZSP-CMM50-20
Flexible type
SGMAH
SGMPH
100 V: 30 to
200 W
200 V: 30 to
750 W
3 m
(9.84 ft)
JZSP-CMM11-03
5.1.4
5 m
(16.4 ft)
JZSP-CMM11-05
10 m
(32.8 ft)
JZSP-CMM11-10
15 m
(49.2 ft)
JZSP-CMM11-15
20 m
(65.6 ft)
JZSP-CMM11-20
Servomotor
end
SERVOPACK
end
Servomotor
end
SERVOPACK
end
Servomotor
end
SERVOPACK
end
Servomotor
end
SERVOPACK
end
