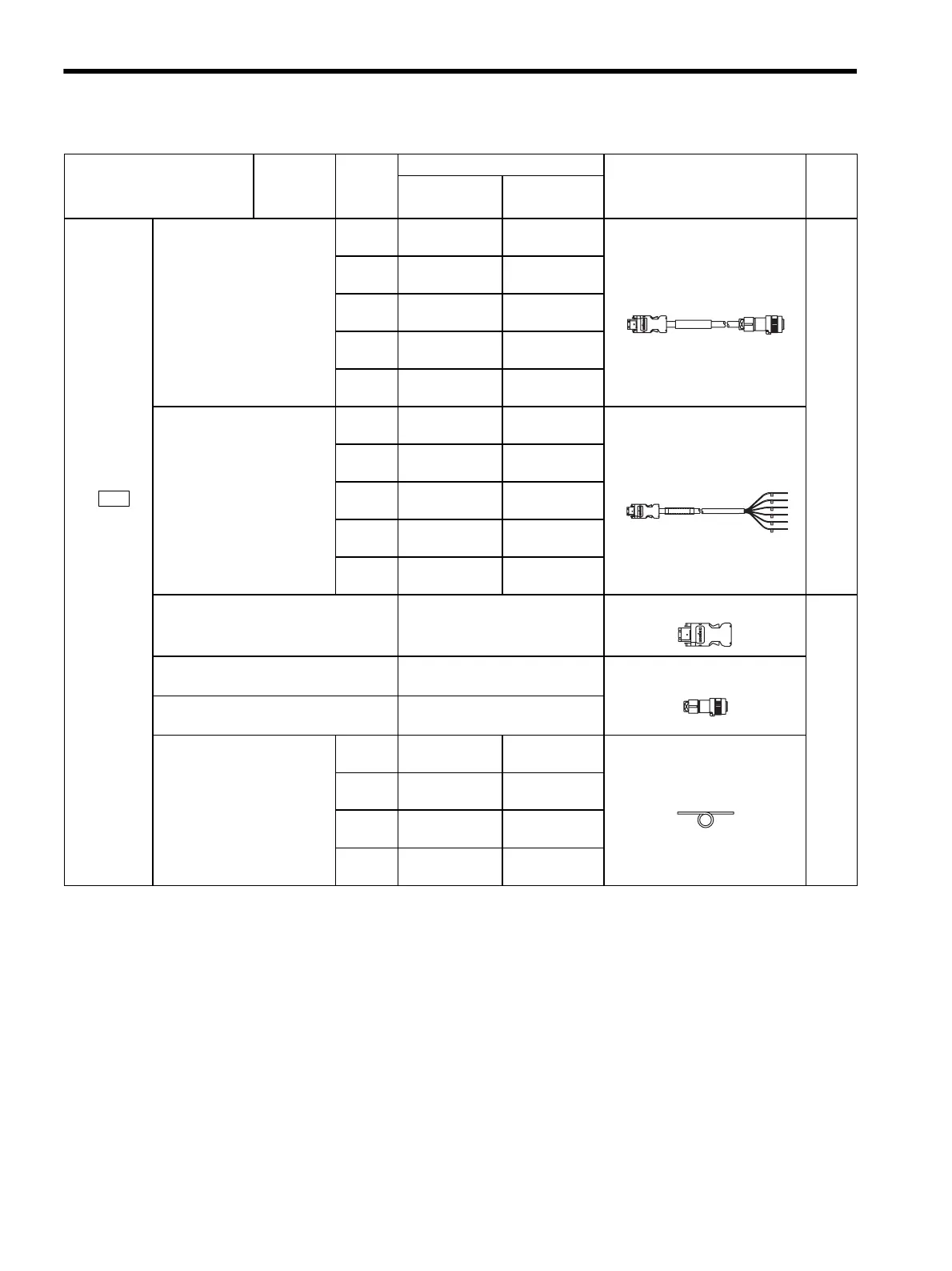

2.5.3 Cables for SGMCS Servomotors
2-28
Name
Servomo-
tor Model
Length
Type
Specifications
Refer-
ence
Standard type
Flexible
Type
*1
c
Encoder
Cables
* Applica-
ble for
every
type.
Cable with connectors at
both ends
(Same for incremental and
absolute encoder)
3m
(9.84 ft)
JZSP-CMP60-03 JZSP-CSP60-03
5.4.7
5 m
(16.4 ft)
JZSP-CMP60-05 JZSP-CSP60-05
10 m
(32.8 ft)
JZSP-CMP60-10 JZSP-CSP60-10
15 m
(49.2 ft)
JZSP-CMP60-15 JZSP-CSP60-15
20 m
(65.6 ft)
JZSP-CMP60-20 JZSP-CSP60-20
Cable with loose wires at
encoder end
(Same for incremental and
absolute encoder)
3m
(9.84 ft)
JZSP-CMP03-03 JZSP-CMP13-03
5 m
(16.4 ft)
JZSP-CMP03-05 JZSP-CMP13-05
10 m
(32.8 ft)
JZSP-CMP03-10 JZSP-CMP13-10
15 m
(49.2 ft)
JZSP-CMP03-15 JZSP-CMP13-15
20 m
(65.6 ft)
JZSP-CMP03-20 JZSP-CMP13-20
SERVOPACK-end Connector kit
JZSP-CMP9-1
Solder type
5.5.3
Encoder-end Connector
(Straight plug)
JN1DS10SL1
*2
Crimping type
Encoder-end Connector
(Socket contact)
JN1-22-22S-PKG100
*2
Cables
5 m
(16.4 ft)
JZSP-CMP09-05 JZSP-CSP39-05
20 m (65.6 ft) max.
10 m
(32.8 ft)
JZSP-CMP09-10 JZSP-CSP39-10
15 m
(49.2 ft)
JZSP-CMP09-15 JZSP-CSP39-15
20 m
(65.6 ft)
JZSP-CMP09-20 JZSP-CSP39-20
CN2
SERVOPACK end Encoder end
SERVOPACK end
Encoder end
