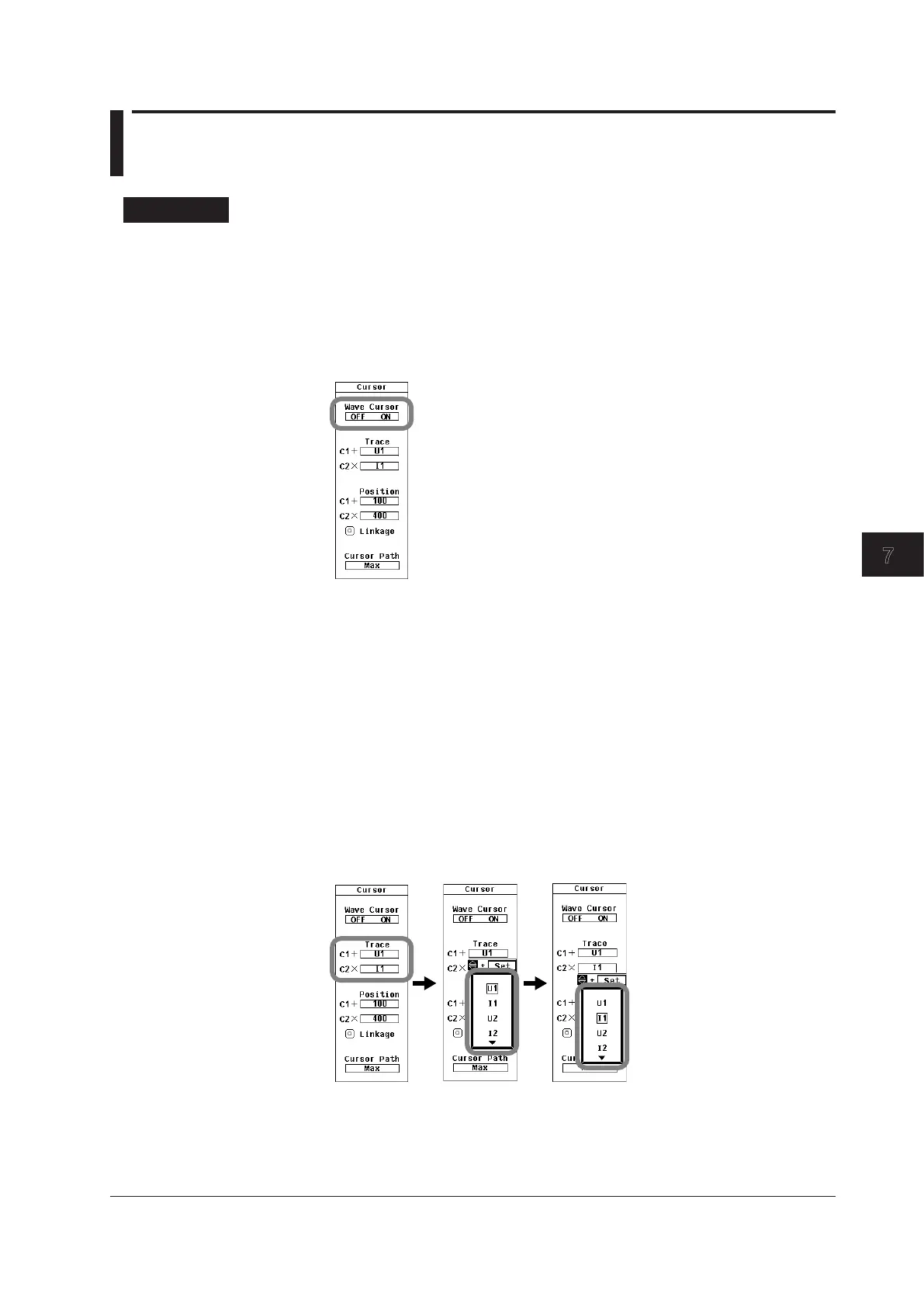

7.9 Measuring with Cursors
Procedure
1.
Press SHIFT+FORM (CURSOR) to display the Cursor menu.
Selecting Whether or Not to Use Cursor Measurement
2.
Use the cursor keys to select Wave Cursor.
3.
Press SET to select ON or OFF.
If you select ON, the results of cursor measurement are displayed.
Selecting the Waveforms to Measure Using Cursors
• Selecting the Waveform to Measure Using Cursor +
4.
Use the cursor keys to select C1+ under Trace.
5.
Press SET to display the waveform selection box.
6.
Use the cursor keys to select a waveform from the list (which starts with U1).
7.
Press SET to confirm the waveform selection.
• Selecting the Waveform to Measure Using Cursor x
4.
Use the cursor keys to select C2x under Trace.
5.
Press SET to display the waveform selection box.
6.
Use the cursor keys to select a waveform from the list (which starts with U1).
7.
Press SET to confirm the waveform selection.
