2-30
IM 760201-01E

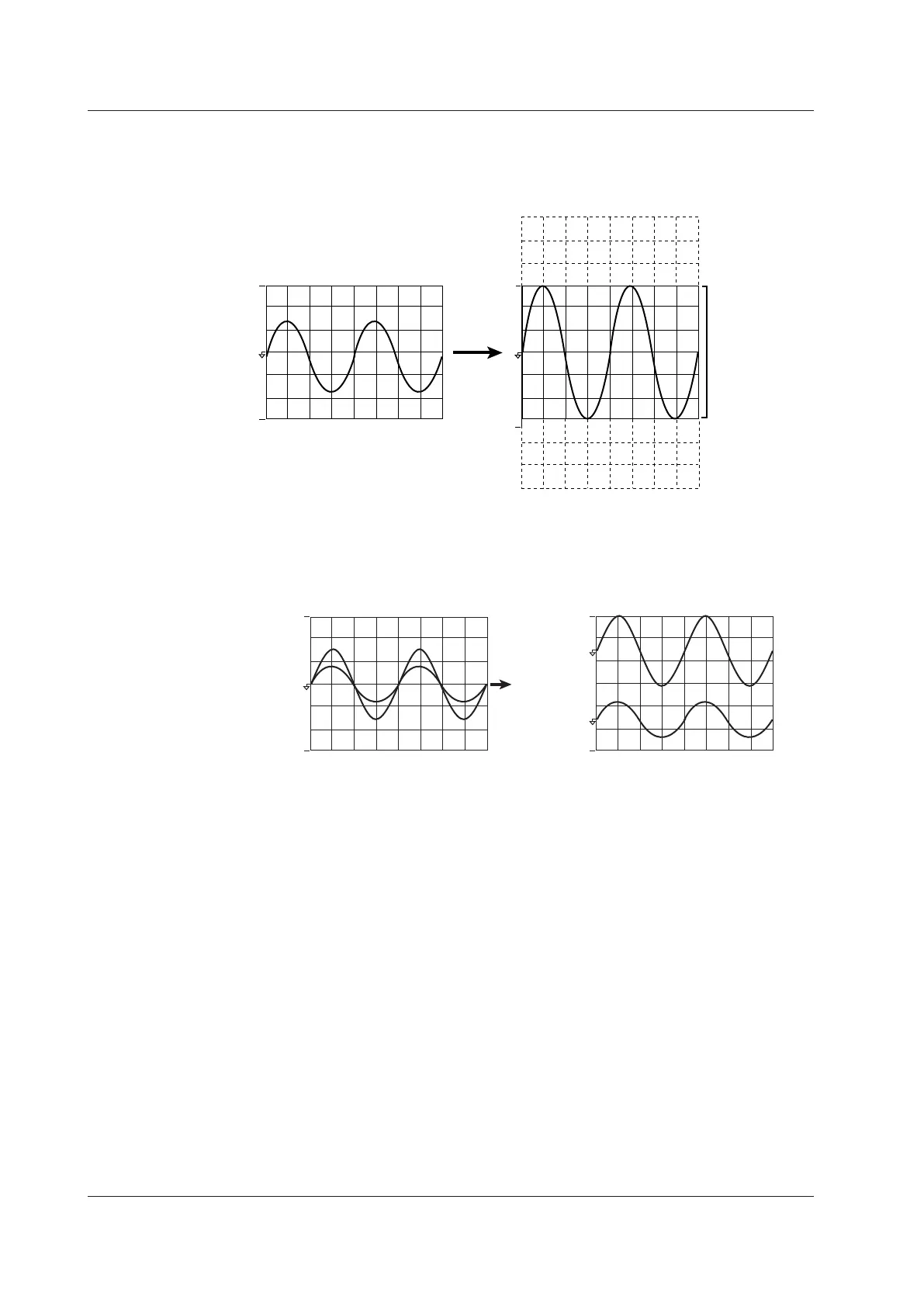

Vertical Waveform Zoom (See section 7.6 for operating instructions)
Each displayed waveform can be scaled vertically by a zoom factor of 0.1 to 100. The
waveform is scaled around the zero-input line.
150 Vpk
300 Vpk
–150 Vpk
–300 Vpk
300 Vpk
–300 Vpk
Input zero
line
When the zoom factor is doubled
Range displayed
on the screen
Vertical Waveform Position (See section 7.6 for operating instructions)
You can vertically shift the displayed position of a waveform. This is useful when you
want to view the relationship between voltage and current waveforms, or when the
section of the waveform that you want to view does not fit into the display frame.
100%
–100%
Position moved
by 50%
Position moved
by –50%
2.7 Waveform Display
