Zebra ZT600 Series User Manual

Printer Configuration and Adjustment
189

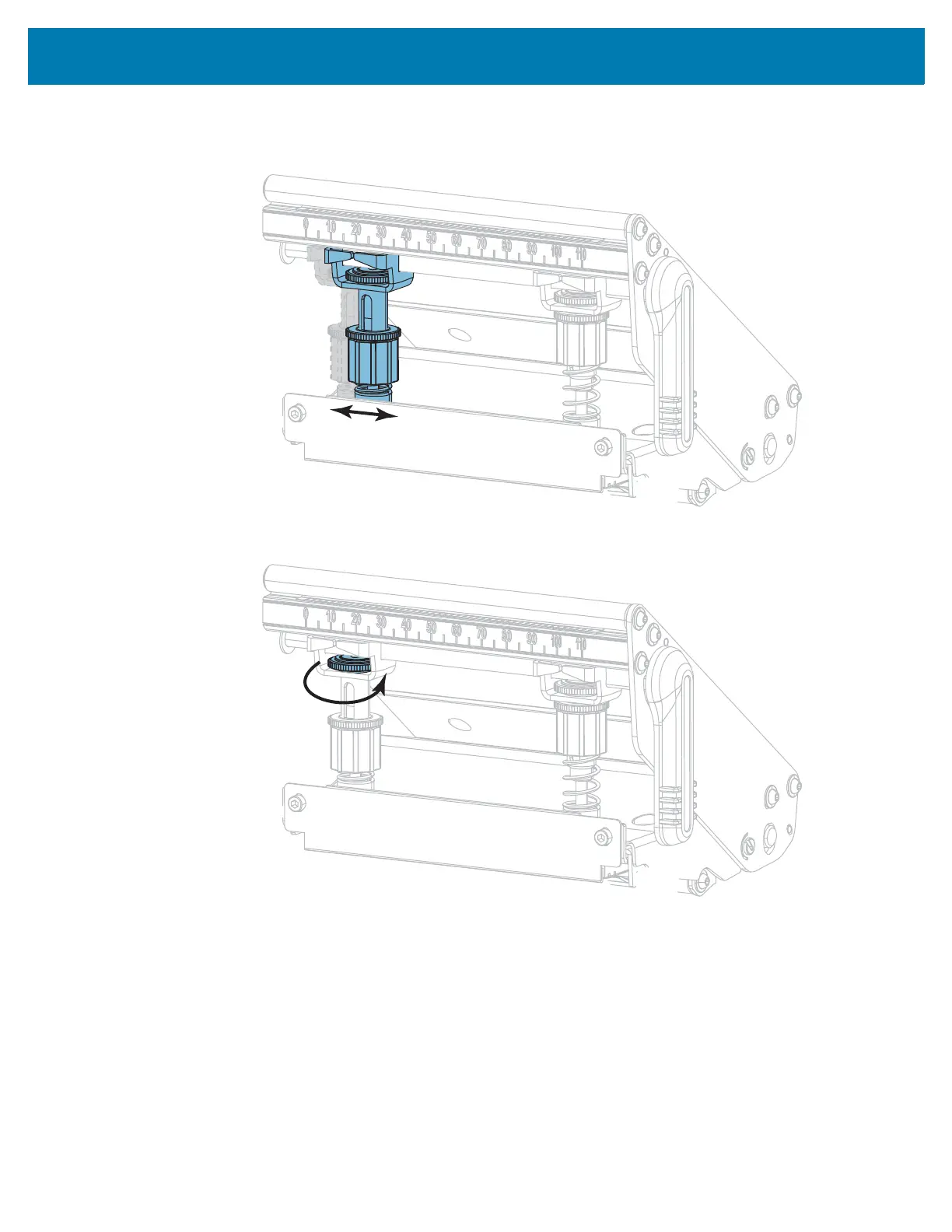

3. Reposition the toggle as necessary to provide even pressure on the media. For extremely narrow
media, position the inside toggle over the center of the media, and decrease the pressure on the
outside toggle.
4. Tighten the locking nut.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
