Zebra ZT600 Series - Toggle Position Adjustment

Printer Configuration and Adjustment
188
Toggle Position Adjustment

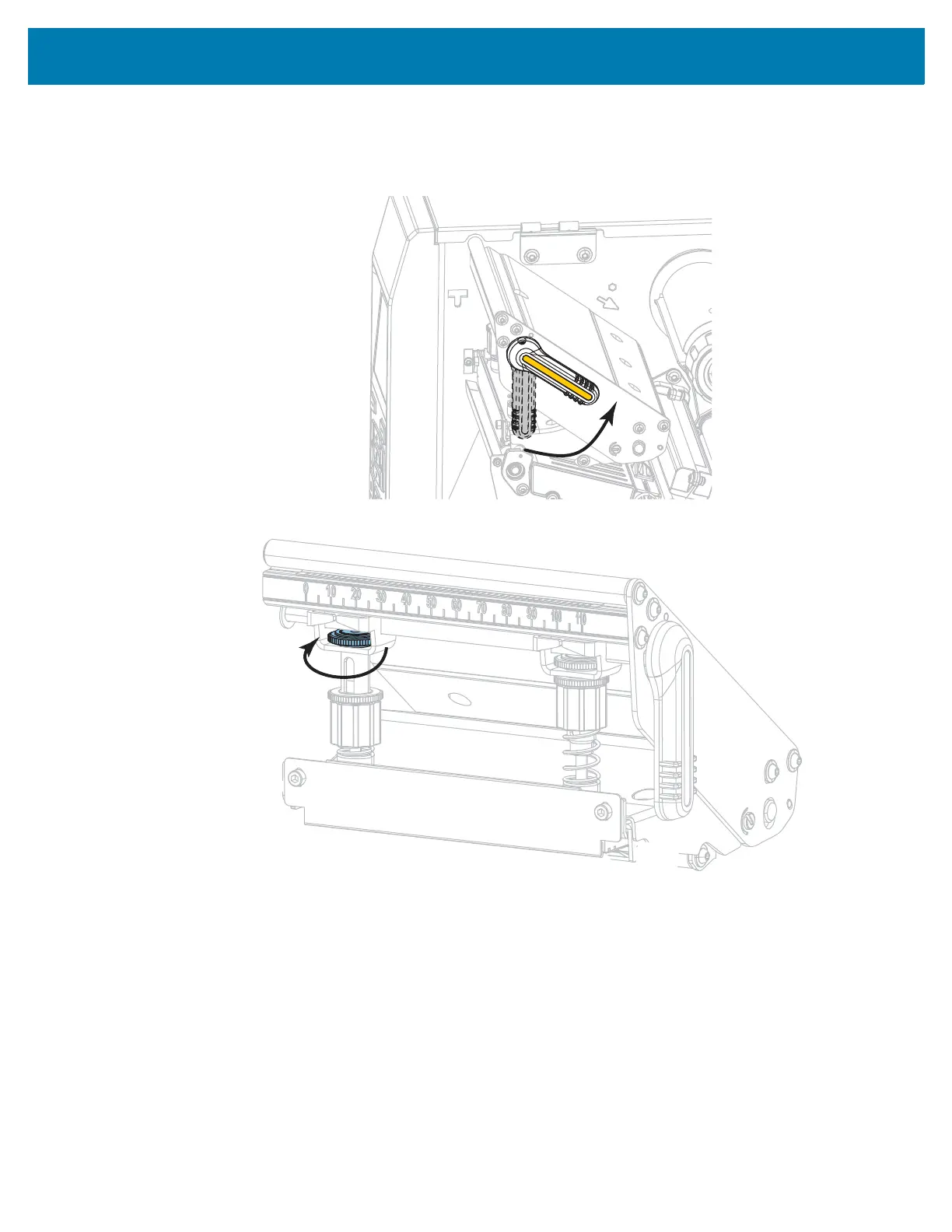

1. Open the printhead assembly by rotating the printhead-open lever to lessen the pressure on the
toggles.
2. Loosen the locking nut at the top of the toggle to be moved.
