Zebra ZT600 Series User Manual

Printer Configuration and Adjustment
192
Adjust the Sensor Position
The transmissive media sensor assembly consists of two parts: a light source and a light sensor. The lower
part of the media sensor is the light source, and the upper part of the media sensor is the light sensor. The
media passes between the two parts.
Adjust the position of the sensor only if the printer cannot detect the top of the labels. In this situation, the
display shows a media out error even though there is media loaded in the printer. For non-continuous
media with a notch or hole, the sensor must be positioned directly at the notch or hole.

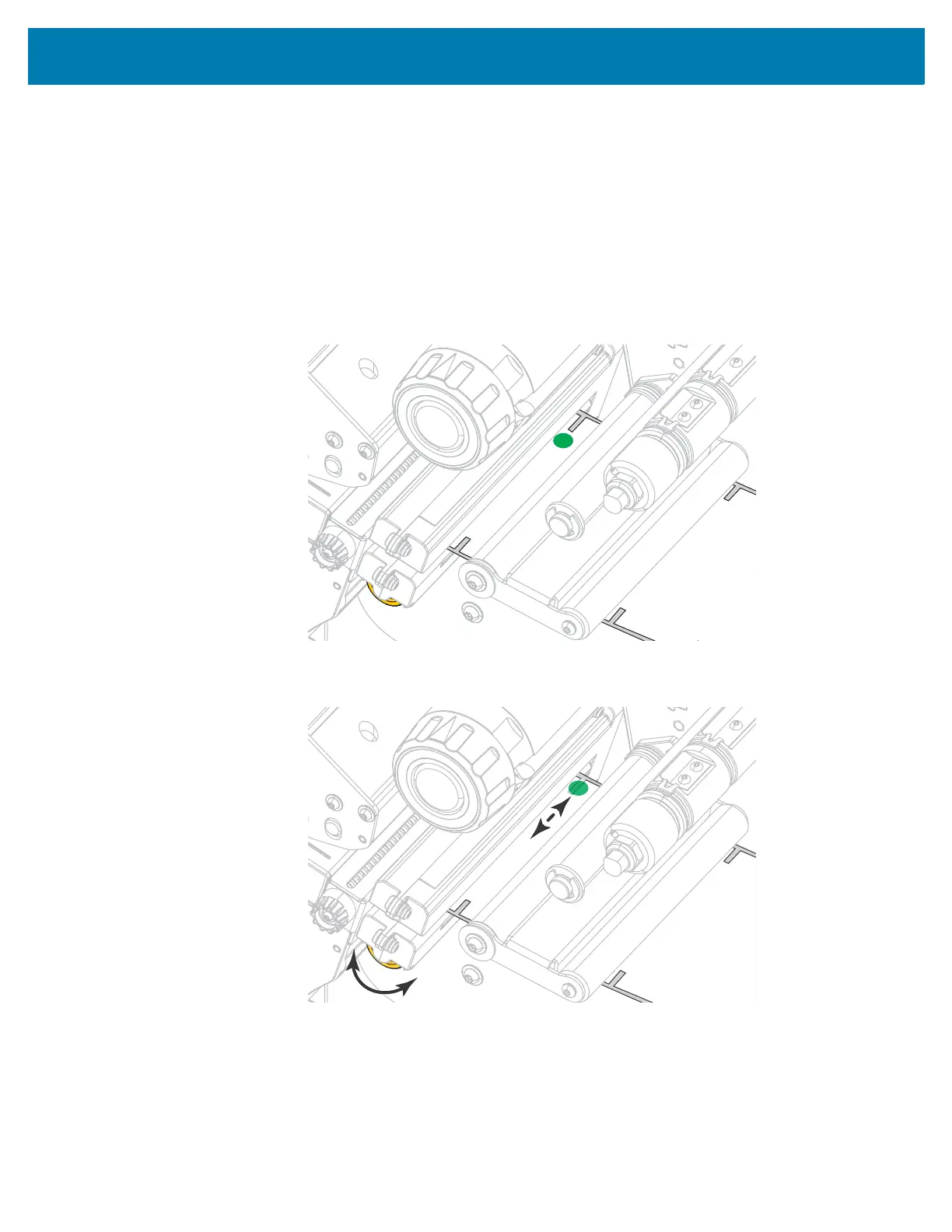

1. Remove the ribbon so you can clearly see the media path.
2. With media loaded, locate the green light that shines from the lower part of the media sensor.
3. If necessary, turn the gold transmissive sensor adjustment wheel to move the sensor until it is
positioned at a notch or hole in the media.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
