Zebra ZT600 Series User Manual

Printer Configuration and Adjustment
196

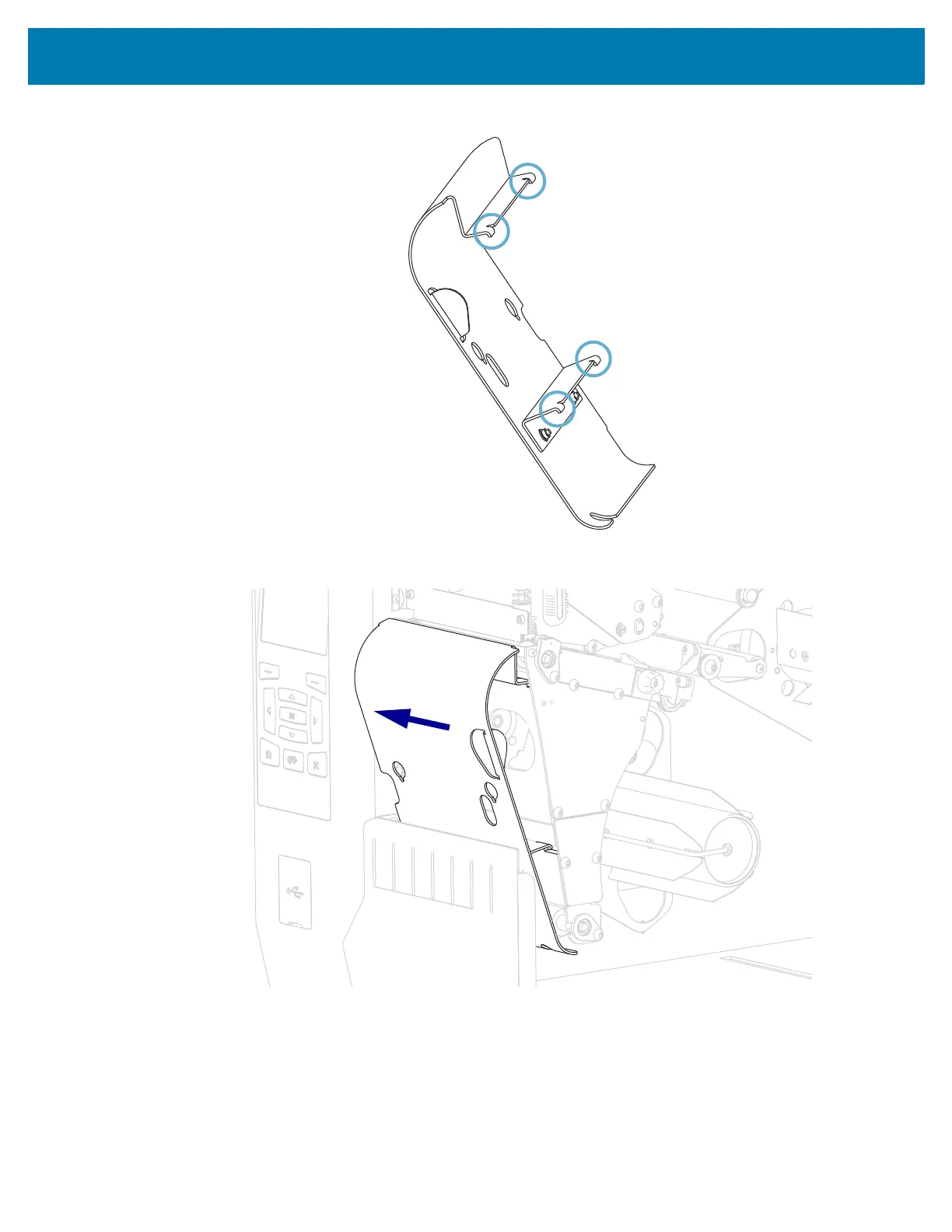

2. Locate the four mounting tabs on the rewind/liner take-up plate.
3. Insert the mounting tabs of the rewind plate into the mounting slots of the printer, and then slide the
rewind plate to the left until it will not go any farther.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
