Zebra ZT600 Series User Manual

Routine Maintenance
213
3. After the ribbon release bars have pivoted down, if possible, turn the ribbon take-up spindle one full to
the right to help loosen the ribbon on the spindle.

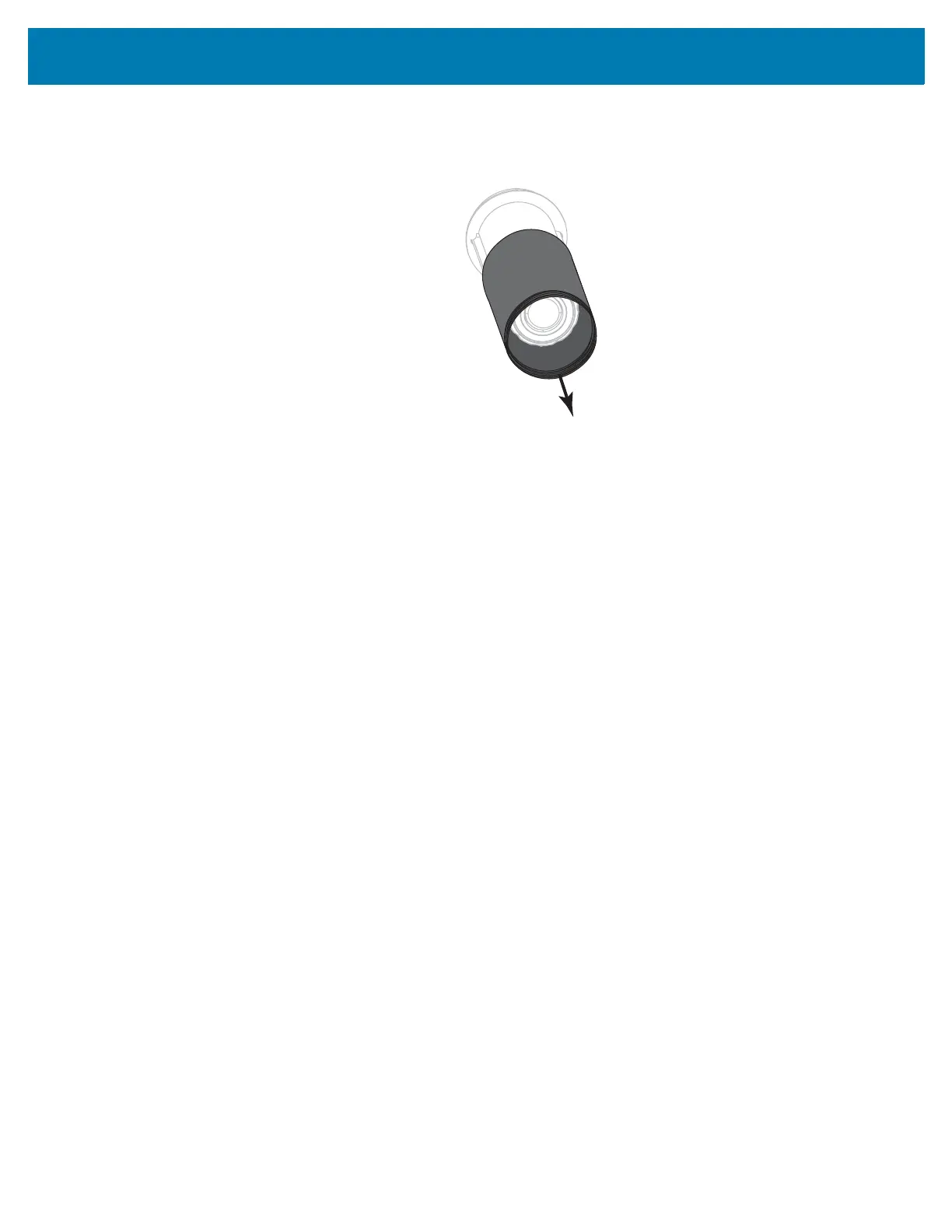

4. Slide the used ribbon off of the ribbon take-up spindle and discard.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
