Zebra ZT600 Series User Manual

Printer Setup and Operation
66

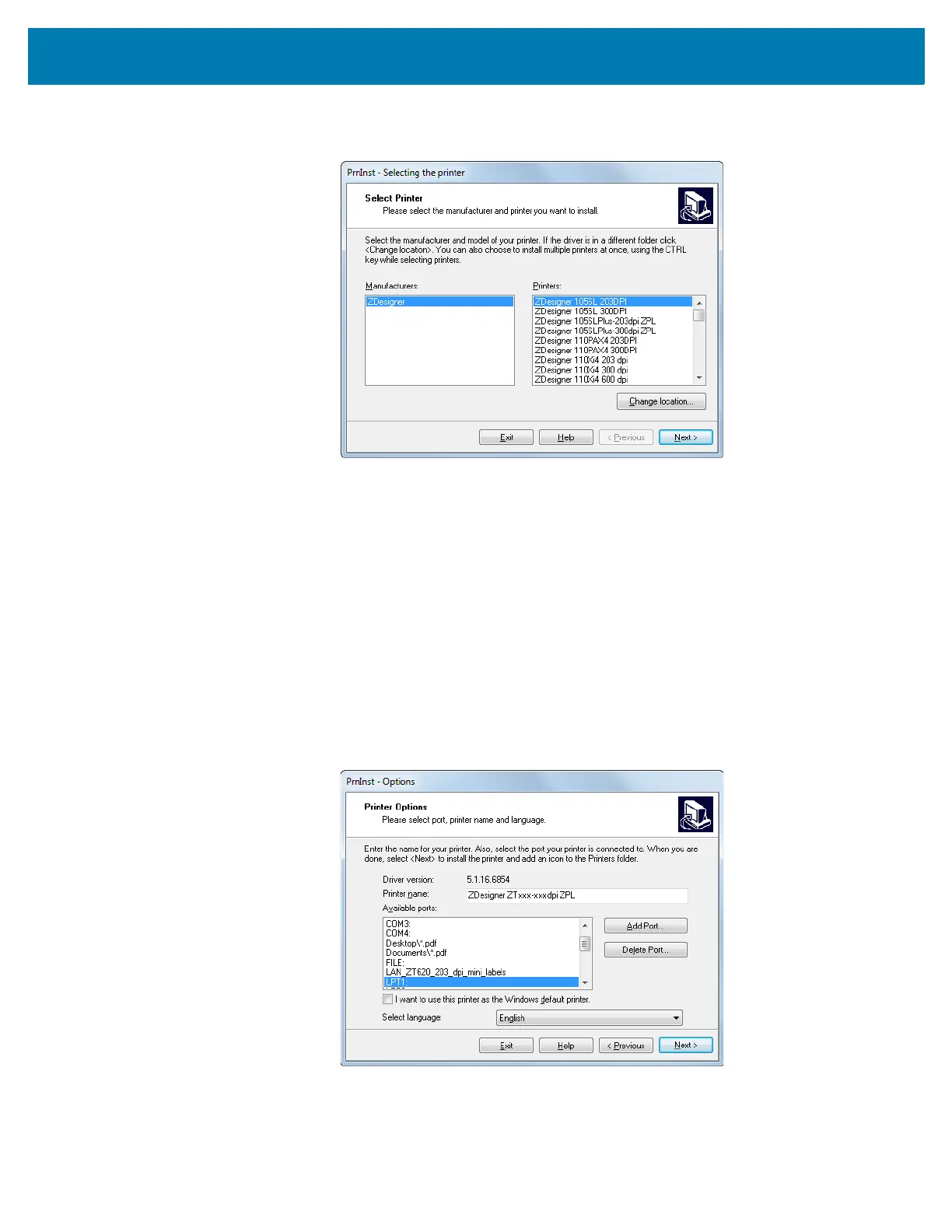

6. Click Install Printer.
You are prompted to select a printer type.
7. Select your printer model and resolution.
The model and resolution are on a part number sticker on the printer, usually located below the media
spindle. The information will be in the following format:
Part Number: XXXXXxY – xxxxxxxx
where
XXXXX = the printer model
Y = the printer resolution (2 = 203 dpi, 3 = 300 dpi, 6 = 600 dpi)
For example, in the part number
ZT620x3 – xxxxxxxx
ZT620 indicates that the printer is a ZT620 model
3 indicates that the printhead resolution is 300 dpi
8. Click Next.
You are prompted for a printer name, the port to which the printer will be connected, and the language
for the program.
9. Change the printer name (if desired), and select the appropriate port and language.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
