374
MC97F60128
A
BOV Semiconductor Co., Ltd.


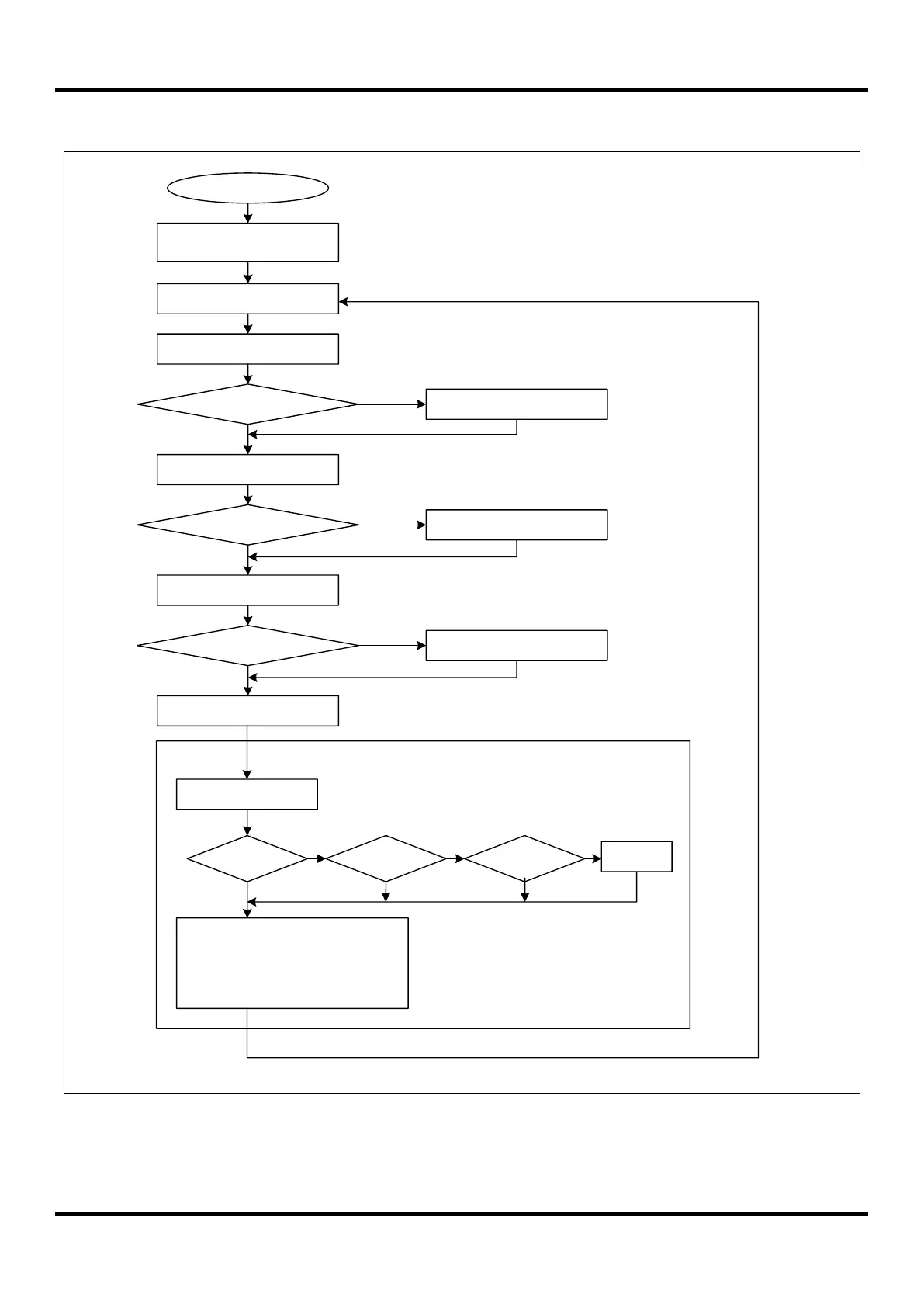

Flow
chart
Initial
Set LVR/LVI more than 2.0V
Start Main Loop
Working
Start
Write Flash?
Set User_ID1
Working
Check User_ID1?
Set User_ID2
Working
Check User_ID2?
Set User_ID3
Working
Yes
Yes
Yes
No
No
No
Write Flash
Clear User_ID1/2/3
Clear FIDR
Clear FMCR
Set FSADRH/M/L to Dummy Addr
Check User_ID1/2/3
Set FSADDRH/M/L
Set FIDR
Set FMCR
Check LVI
Yes
Yes
No
No
Check Flash Addr
Min/Max
No
Yes
â‘
â‘¡
â‘¢
â‘¢
â‘¢
â‘£
⑤
â‘¥
⑤
⑤
373
375
