29
MC97F
60128
A
BOV Semiconductor Co., Ltd.
6.
Port Structures
6.1
General Purpose I/
O
Port
PULL-UP
REGISTER
V
DD
V
DD
PAD
V
DD
OPEN DRAIN
REGISTER
DATA
REGISTER
DIRECTION
REGISTER
MUX
0
1
MUX
1
0
CMOS or
Schmitt Level
Input
ANALOG CHANNEL
ENABLE
ANALOG INPUT
PORTx INPUT or
SUB-FUNC DATA INPUT
SUB-FUNC DIRECTION
SUB-FUNC ENABLE
SUB-FUNC DATA OUTPUT
Level Shift (ExtVDD to 1.8V)
Level Shift (1.8V to ExtVDD)

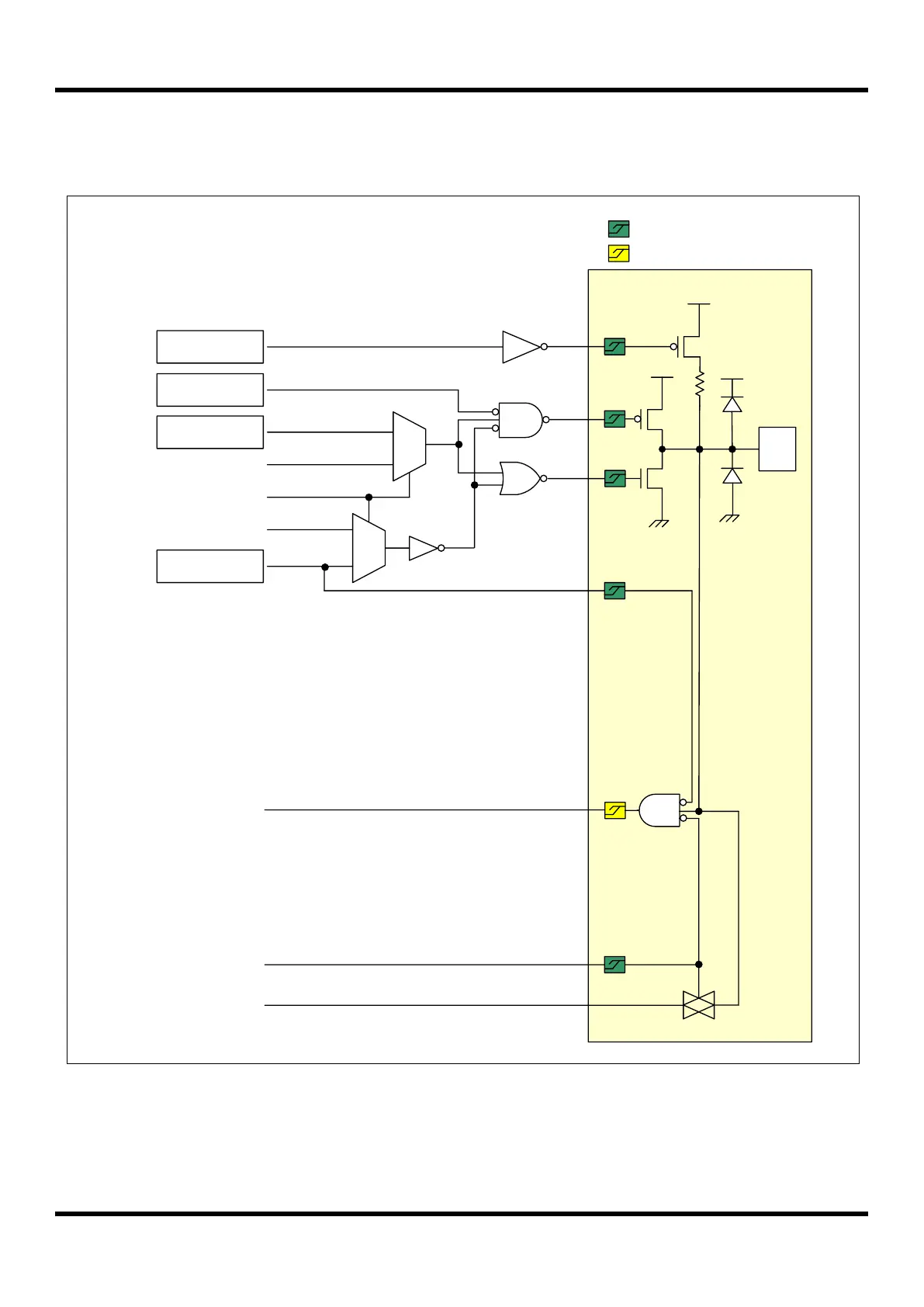

Figure 6.1
General Purpose I/O Port
28
30
