12.4 STOP Mode
The power control register is set to ‘03H’ to enter the STOP Mode. In the stop mode, the selected oscillator, system
clock and peripheral clock is stopped, but watch timer can be continued to operate with sub clock. With the clock
frozen, all functions are stopped, but the on-chip RAM and control registers are held. For example, If the internal RC
oscillator (fIRC) is selected for the system clock and the sub clock (fSUB) is oscillated, the internal RC oscillator STOP
oscillation and the sub clock is continuously oscillated in stop mode. At that time, the watch timer and LCD controller
can be operated with the sub clock.
The source for exit from STOP mode is hardware reset and interrupts. The reset re-defines all the control registers.
When exit from STOP mode, enough oscillation stabilization time is required to normal operation. Figure 12.2 shows
the timing diagram. When released from STOP mode, the Basic interval timer is activated on wake-up. Therefore,
before STOP instruction, user must be set its relevant prescale divide ratio to have long enough time. This guarantees
that oscillator has started and stabilized.

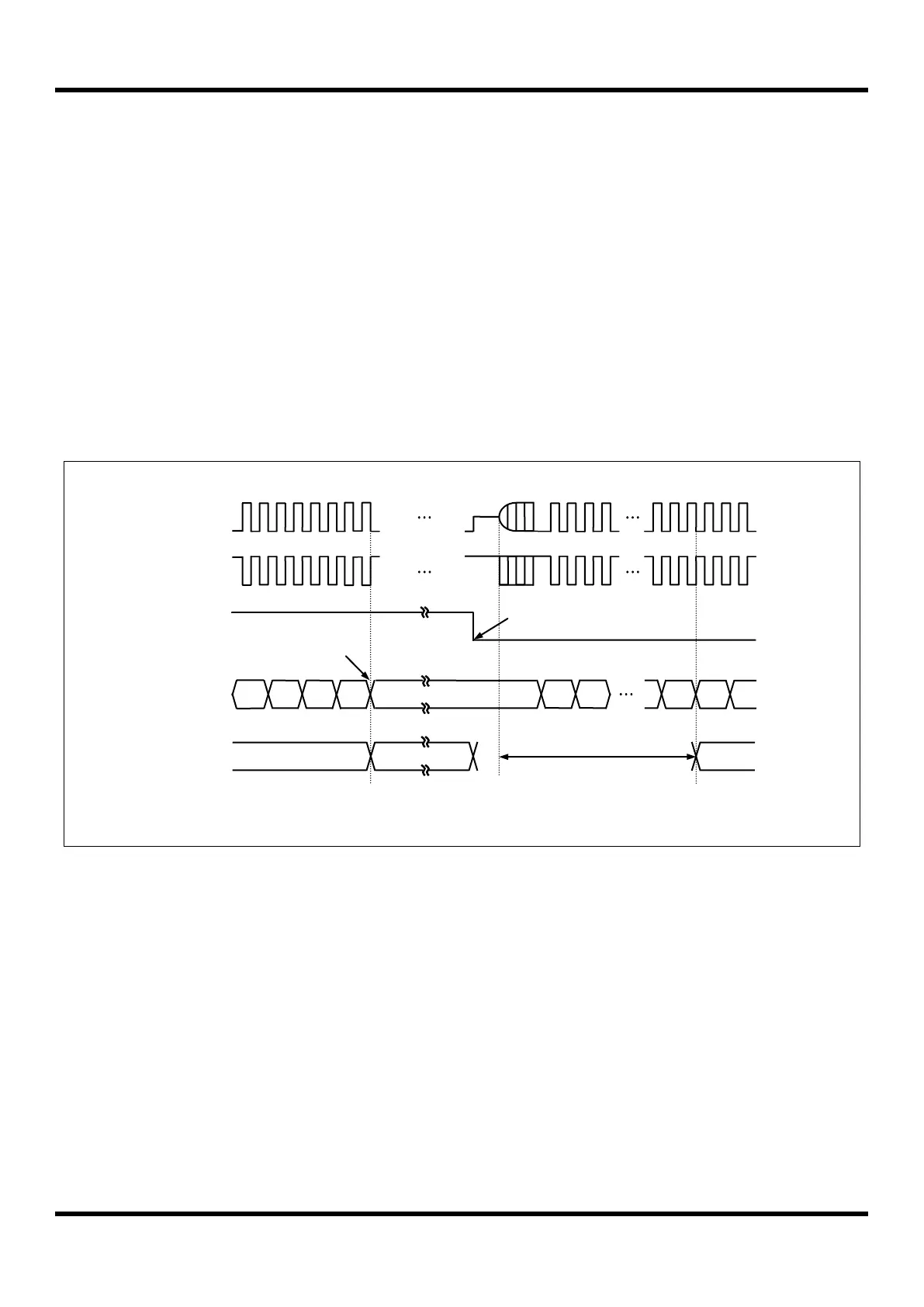

Figure 12.2 STOP Mode Release Timing by External Interrupt
Before executed STOP instruction, BIT must be set
properly by software to get stabilization.
