Abov MC97F60128 User Manual

7
MC97F60128
ABOV Semiconductor Co., Ltd.
2
User VCC
1
3
4
5
6
7
8
10
9
User GND
DSCL
DSDA
1.3 Development tools
1.3.1 Compiler
ABOV Semiconductor does not provide compiler. It is recommended that you consult a compier provider.
The MC97F60128 core is Mentor 8051 and the ROM size is smaller than 128 Kbytes.Therefore, developer can use
the standard 8051 compiler from other providers.
1.3.2 OCD2(On-chip debugger) emulator and debugger
The OCD2 (On Chip Debug 2) emulator supports ABOV Semiconductor’s 8051 series MCU emulation.
The OCD2 interface uses two-wire interfacing between PC and MCU which is attached to user’s system. The OCD2
can read or change the value of MCU internal memory and I/O peripherals. And the OCD2 also controls MCU internal
debugging logic, it means OCD2 controls emulation, step run, monitoring, etc.
The OCD2 is very flexible, powerful and faster than OCD1(Real time monitoring, RAM break, Emulation time
measuring…). The MC97x series is supported by only OCD2.
The OCD2 Debugger program works on all Microsoft-Windows operating system.
If you want to see more details, please refer to OCD2 debugger manual. You can download debugger S/W and
manual from our web-site (http://www.abov.co.kr).
Connection:
- DSCL (MC97F60128 P14 port)
- DSDA (MC97F60128 P15 port)
- RTIME (MC97F60128 RUNFLAG port, Option)
NOTE)
1. MC97F60128 Use Only OCD2.

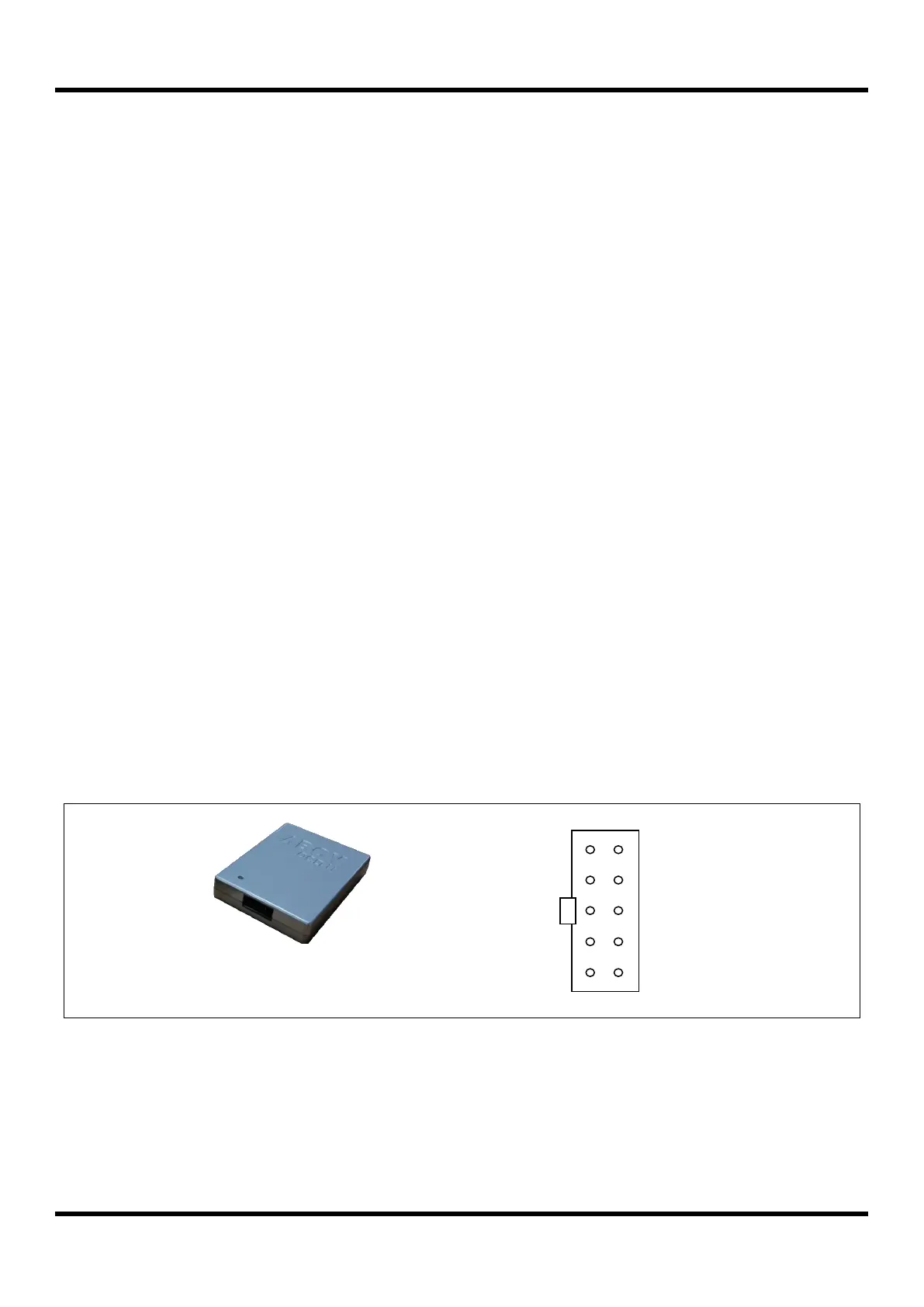

OCD connector diagram: Connect OCD with user system
Figure 1.2 Debugger(OCD2) and Pin description
RUNFLAG
