Abov MC97F60128 User Manual

297
MC97F60128
ABOV Semiconductor Co., Ltd.
11.15.6 12-Bit External D/AC Interface
SCKn
D/AC Interface Signal 1: DACIFEN = “1b”, MDSEL = “0”, Where n = 2 and 3 (Only CPHAn = CPOLn = “0b”)
CMD3XMOSIn
CSBn
SCKn
D/AC Interface Signal 2: DACIFEN = “1b”, MDSEL = “1”, Where n = 2 and 3 (CPHAn = CPOLn = “0b” or CPHAn = CPOLn = “1b”)
MOSIn
CSBn
LDACBn
CMD2 CMD1 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 CMD0
CMD3X CMD2 CMD1 CMD0 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4

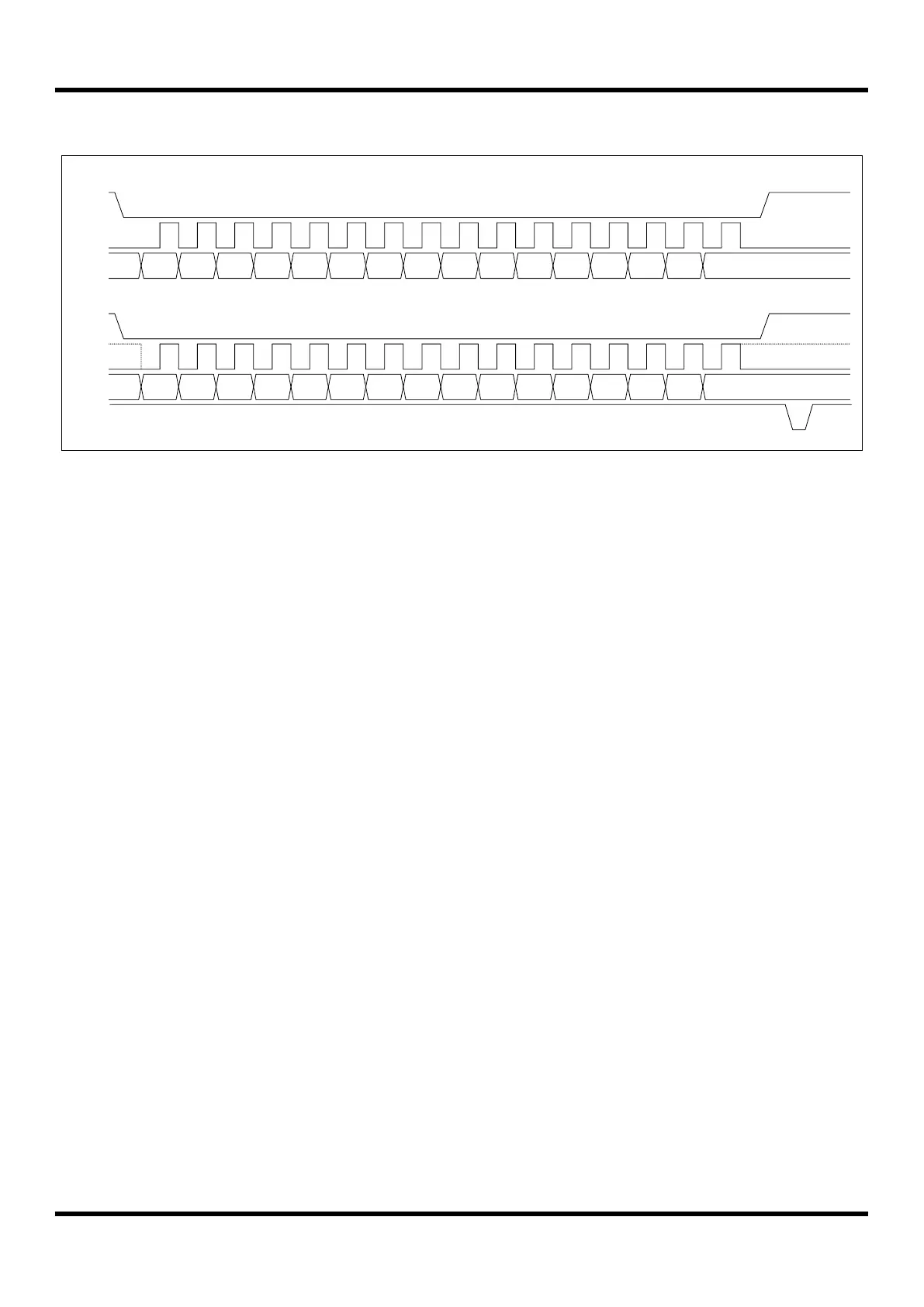

Figure 11.86 12-Bit D/AC Interface Signal Timing Diagram
