7.1 Demonstration Program
Programming the rectangular pocket
 Press the RECT key.
A popup menu will appear for selecting the type of rectangle to be
milled.

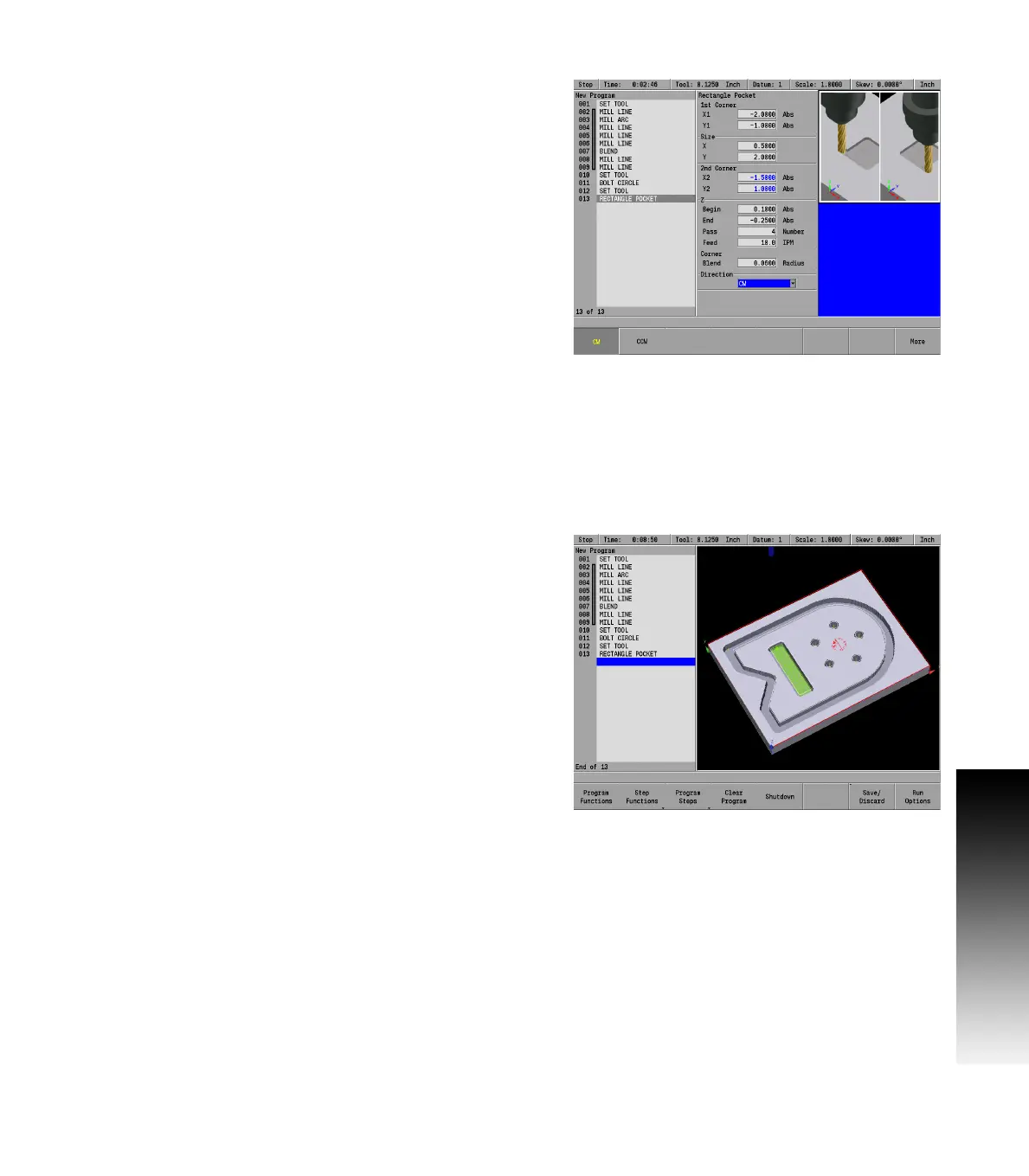

 Highlight Pocket and press the ENTER key. The Rectangle Pocket
dialogue will be displayed. The cursor will default to the first field
(X1).
 In the 1st Corner: X1 field enter -2.0.
 In the 1st Corner: Y1 field enter -1.0.
 ARROW DOWN to Size: X field and enter 0.5
 ARROW DOWN to Size: Y field and enter 2.0.
The 2nd Corner fields will automatically fill in based on the data from
the 1st Corner: fields, and the Size: fields.
The Z: begin field, and Z: End field inserts the same information that
was entered for the Bolt Circle dialogue information.
 ARROW DOWN to highlight the Z: Begin field and enter .100.
 ARROW DOWN to highlight the Z: End field and enter -.25.
 ARROW DOWN to highlight the Z: Pass field, and enter 4 for the Number.
 ARROW DOWN to the Corner Blend Radius: field, and enter 0.125.
 ARROW DOWN to highlight the Direction field, and select CW
(Clock Wise) by pressing the CW soft key.
 Press the USE key.
The demonstration program is now complete.
 Save the program, replacing the existing program.
