2.2 Manual Machine Positioning
2.2 Manual Machine Positioning
Move table
Non cutting mode
You can make or change jog moves when in DRO mode with the servos
on.
In mm units the jog increment is 20 microns, 200 microns and 2000
microns respectively.
Changing the mode
Jog move modes are performed at the currently active feedrate. The
active Jog is selected by pressing the appropriate soft key, then
pressing the appropriate ARROW key to move the table in the direction
required. The UP and DOWN ARROWS move the table in the Y axis. The
LEFT and RIGHT ARROWS move the table in the X axis. Use the soft keys
Move Z Up or Move Z Down to move the Z axis in the desired
direction.
Changing the jogging speed
The active jogging speed defaults to the max feed as determined by
the machine builder. The jogging speed may be changed by pressing
Clear. Enter the new speed in the dialogue and press ENTER. The new
value will remain active until set again or on the next power up. The

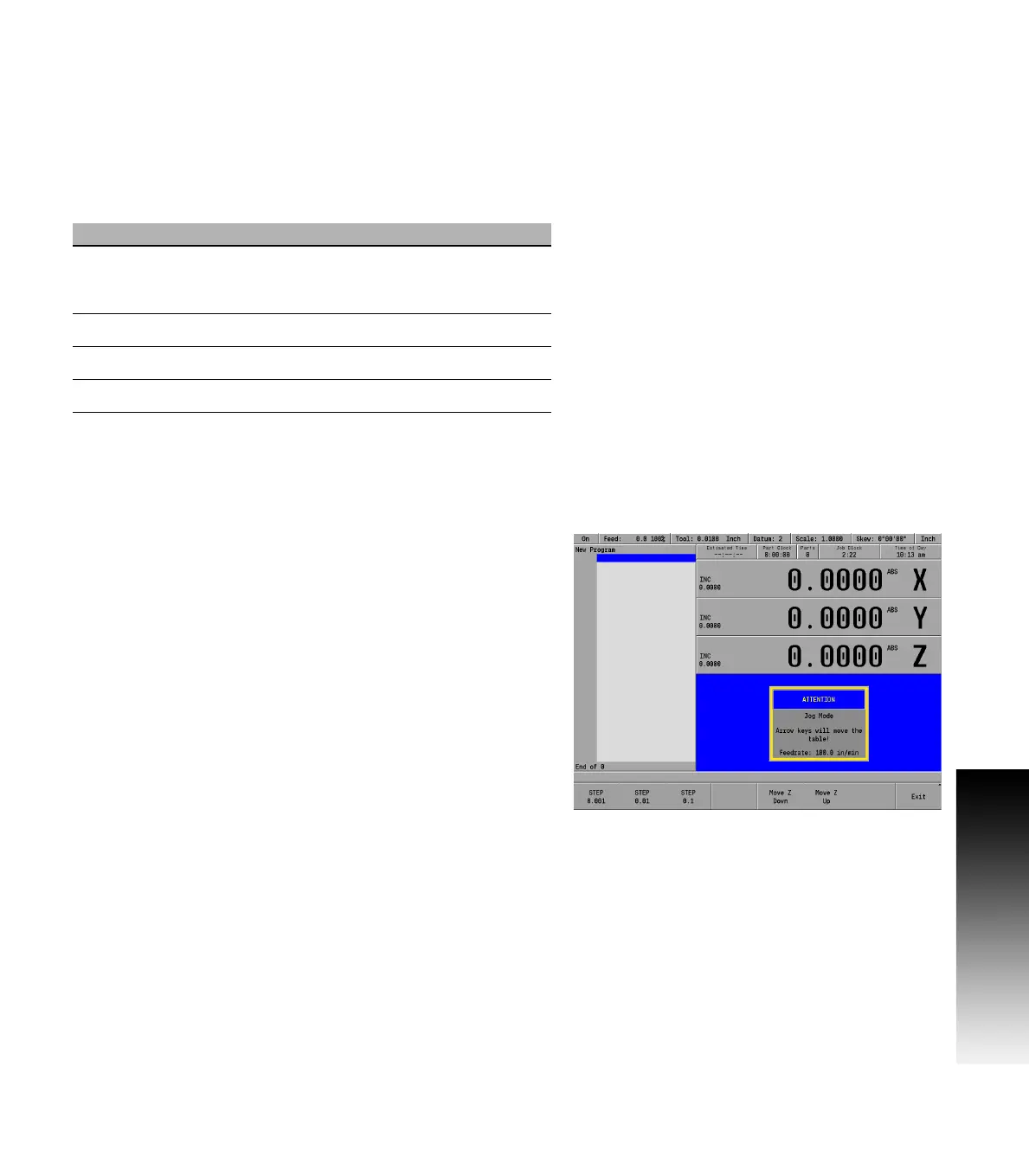

active jogging speed (at 100% override) is displayed in the Jog Mode
"ATTENTION" dialogue.
Incremental moves
In DRO Mode, Press the Move Table soft key.
Then select the soft key Jog increment required. Then press the
ARROW keys (for X and Y) or the soft keys for Z. One jog increment is
moved per ARROW key press.
Continuous moves
To manually position the machine using continuous movement,
press the Move Table soft key. Make sure none of the incremental
Jog keys are highlighted.
Jog Mode Description
Rapid Default rapid speed for continuous jogs. Actual
speed determined at machine setup, and can be
over ridden using the potentiometer.
Jog: 0.1 Conventional Jog increment set at 0.100”.
Jog: 0.01 Conventional Jog increment set at 0.010”.
Jog: 0.001 Conventional Jog increment set at 0.001”.
