4.2 Tool Data
Machining with radius offset

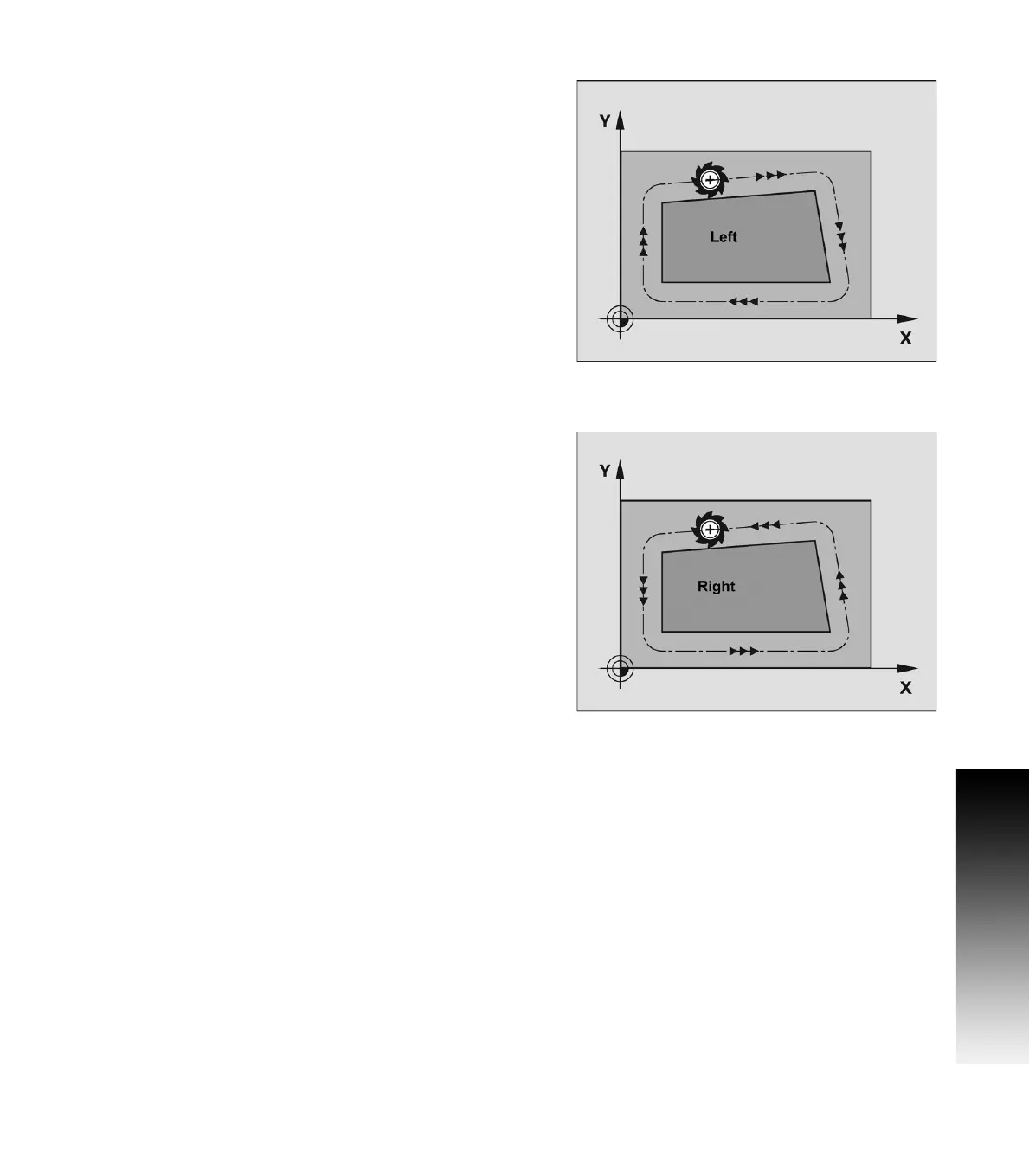

The tool center moves along the contour at a distance equal to the
radius. “Right” or “left” are to be understood as based on the
direction of tool movement along the work piece contour as viewed
from behind a moving tool.
