Advanced AF-6600 - Page 161

To Next Page

To Previous Page

Version 16.10 AF-6600 AF-5000 Series Install Manual 161

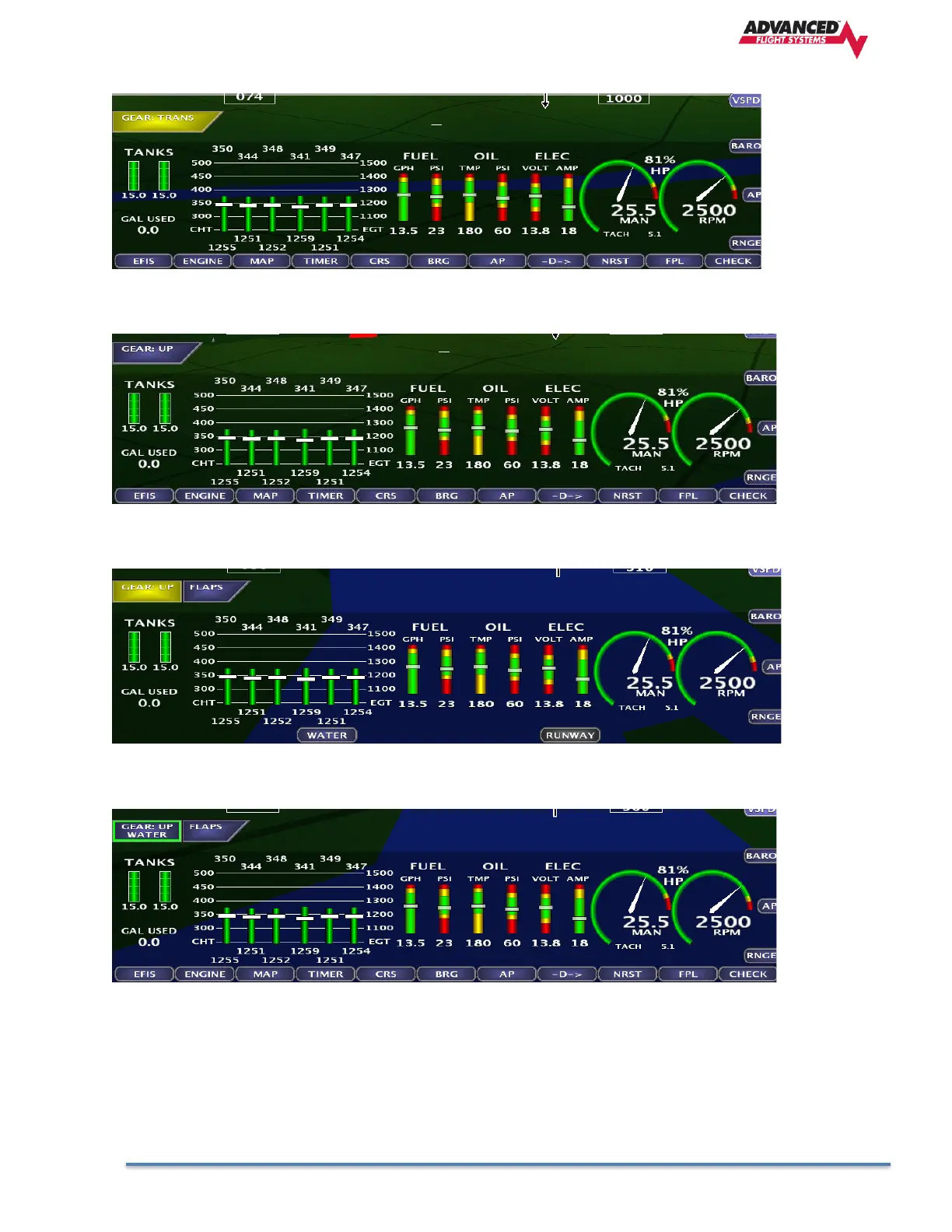

Gear Transition indication shown when lifting or lowering the landing gear.

Gear Up Indication

Gear Up Landing Mode Selection Initiated by Flaps Deployment.

Gear Up Water Landing Mode Selected, Green Box indicated good and Blue for water.

Main Page
