Version 16.10 AF-6600 AF-5000 Series Install Manual 162

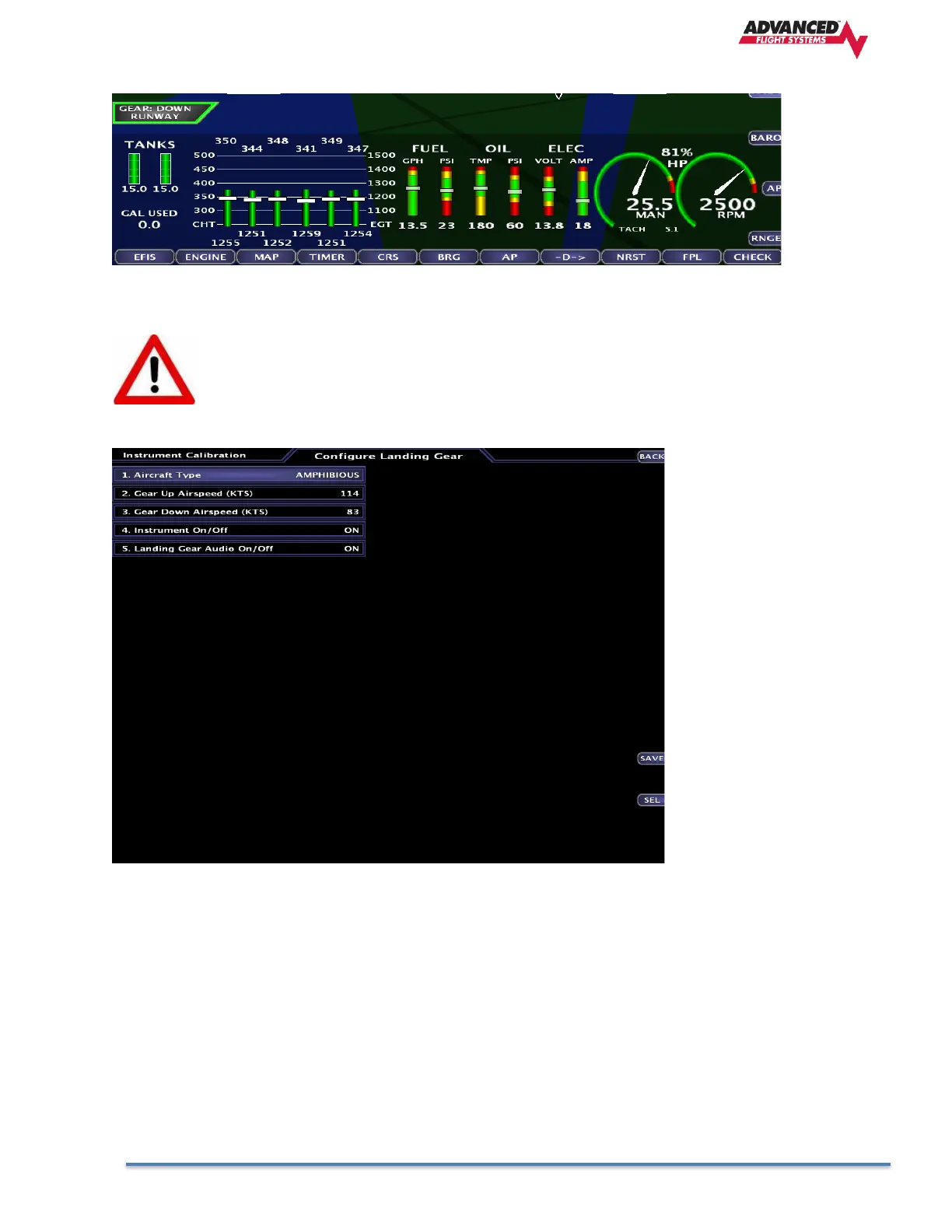

Gear Down Runway Landing Mode Selected, Green Box indicated good and gray for runway.
WARNING: THE AF-5000 LANDING GEAR WARNING SYSTEM SHOULD NOT BE
UTILIZED AS THE PRIMARY MEANS OF DETERMINING GEAR POSITION. THE USER
SHOULD UTILIZE THE NORMAL OPERATING PROCEDURES AS DEFINED IN THE
AIRCRAFT FLIGHT MANUAL AS THE PRIMARY INDICATION OF GEAR POSITION.
Landing Gear configuration menu.
1. Aircraft Type
Selects Land or Amphibian mode.
2. Gear Up Airspeed (KTS)
If the landing gear is not up and the aircraft is above this speed you will get the alert
“CHECK LANDING GEAR”
3. Gear Down Airspeed (KTS)
The airspeed that will trigger the select landing mode message.
4. Instrument On/Off
Enables the gear warning system.
5. Landing Gear Audio On/Off
Should be ON for audible warnings.
