STEP 7 of 8

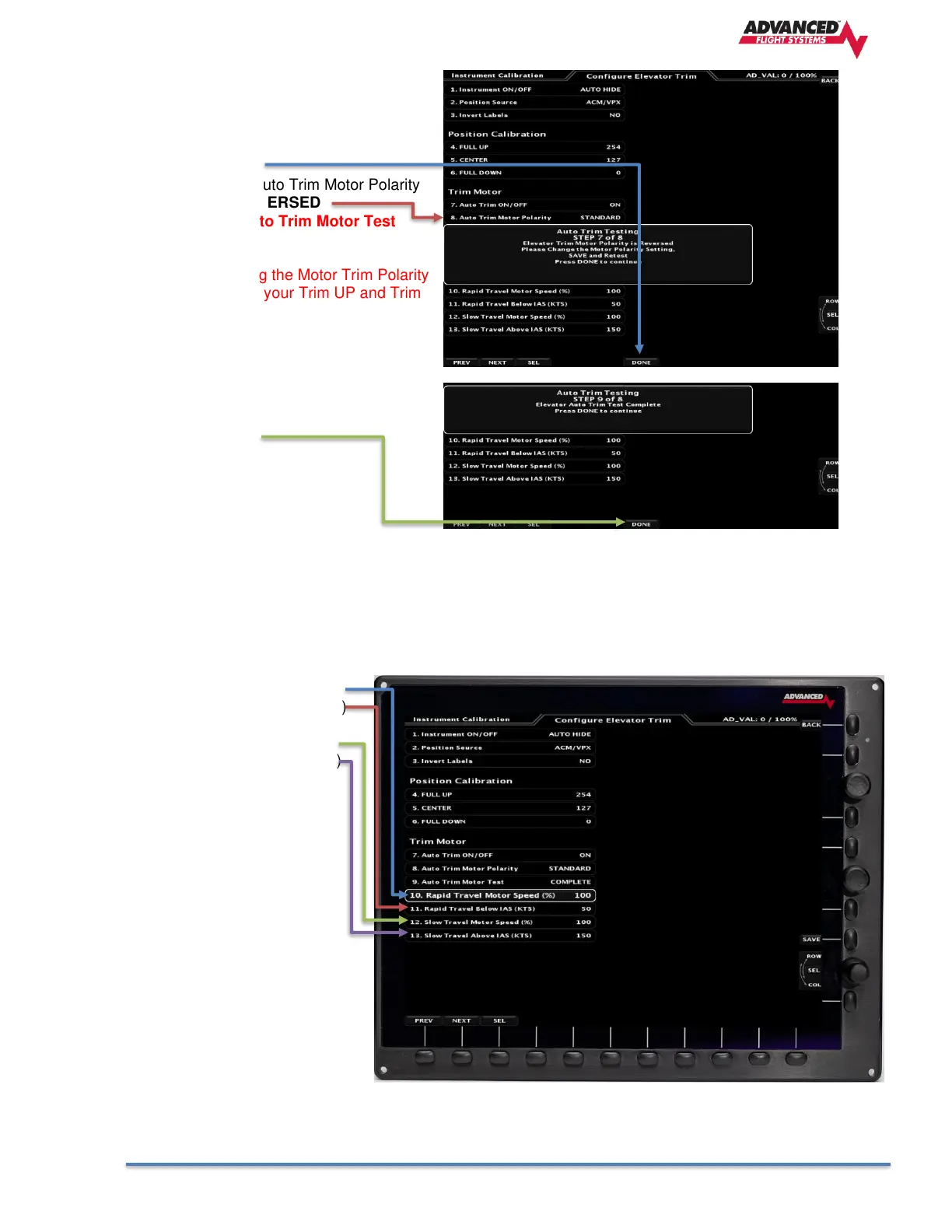

If the Trim Tab moved in the wrong direction,
you will get a STEP 7 telling you the Elevator
Trim Motor is Reversed.
• Press DONE
• Change the Auto Trim Motor Polarity
setting to REVERSED
• Redo the Auto Trim Motor Test
NOTE: After Changing the Motor Trim Polarity
you will need to swap your Trim UP and Trim
Down stick buttons.
STEP 9
Elevator Trim Test Complete
• Press DONE
Trim Motor Speed
The EFIS has settings that control how fast the trim motor runs based on airspeed. The actual motor speed
will be a linear interpolation between the Rapid and Slow settings. You should configure the following
settings:
10. Rapid Travel Motor Speed (%)
11. Rapid Travel Below IAS (KTS)
12. Slow Travel Motor Speed (%)
13. Slow Travel Above IAS (KTS)
