ALTITUDE ADJUST: There is a single point altitude adjustment for each ADAHRS that can be used to adjust
the barometric altimeter from the AHRS if it is not in tolerance. This adjustment affects both the displayed
altitude and the altitude sent to other devices.
Verifying Altitude

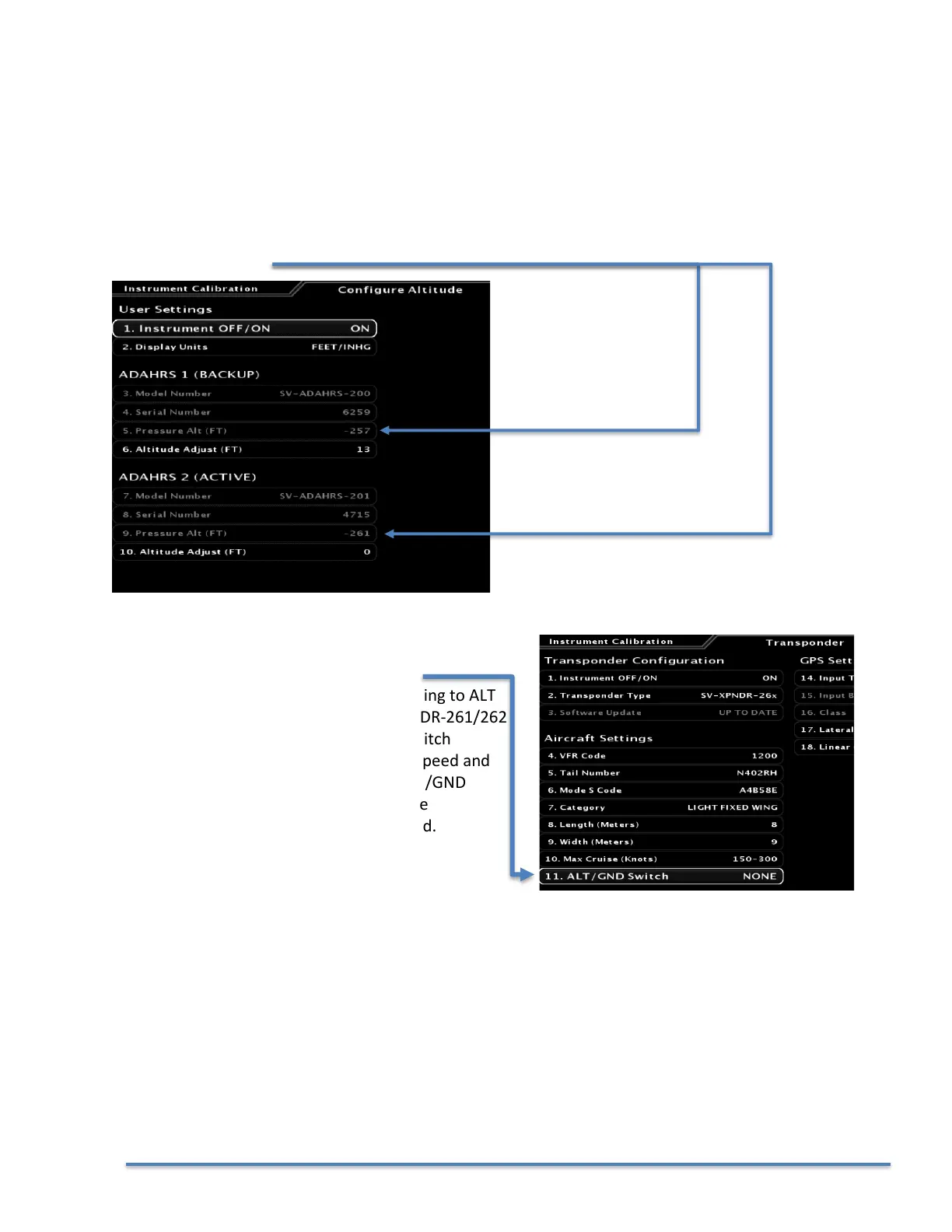

You can check the altitude from the Altitude Calibration Menu: SET > CAL > 12. Altitude Menu
The Configure Altitude Menu will display the non baro adjusted (29.92) altitude from each Adahrs in
the aircraft.
Manual ALT / GND mode switching
Transponder checks require manual switching to ALT
and GND mode. A Dynon Avionics SV-XPNDR-261/262
is normally configured to automatically switch
between GND and ALT mode based on airspeed and
other parameters. You can change the ALT/GND
Switch to NONE so that you can turn on the
Transponder ALT mode while on the ground.
Note: Before changing AUTO ALT/GND, record which squat switch configuration is set; you will need
this information to restore AUTO ALT/GND to this setting after transponder testing is complete.
To Next Page
