7-11
[Markers] Soft Key
The [Markers] Soft Key accesses a group of soft keys that provide additional marker functions.
Marker(s) must be enabled to use some of these functions. To define marker position:
1. Enable marker(s) using the Mkr1 / 2 toggle buttons or by pressing the [Marker1 / 2] Soft
Key(s).
2. Select Mkr1 / 2 data field and adjust marker position using any of the following methods:
● By focusing on the Mkr1 or Mkr2 field and entering a new value in the data field;
● By focusing on the Mkr1 or Mkr2 field and using the Rotary Control Knob to move the
selected marker to a new reference point. Setting three or four significant figures in the
settings box makes adjusting the marker position easier when using the Rotary Control
Knob. If the markers are locked, moving either marker moves the other marker.
● (Mouse option) By focusing on the Mkr1 or Mkr2 field and using a mouse to click and drag
the selected marker to the desired location on the display field.
● [Mkr 1 / Mkr 2] Soft Key
s access additional soft keys (refer to Fig. 7-12) that also adjust
marker position on the display field.

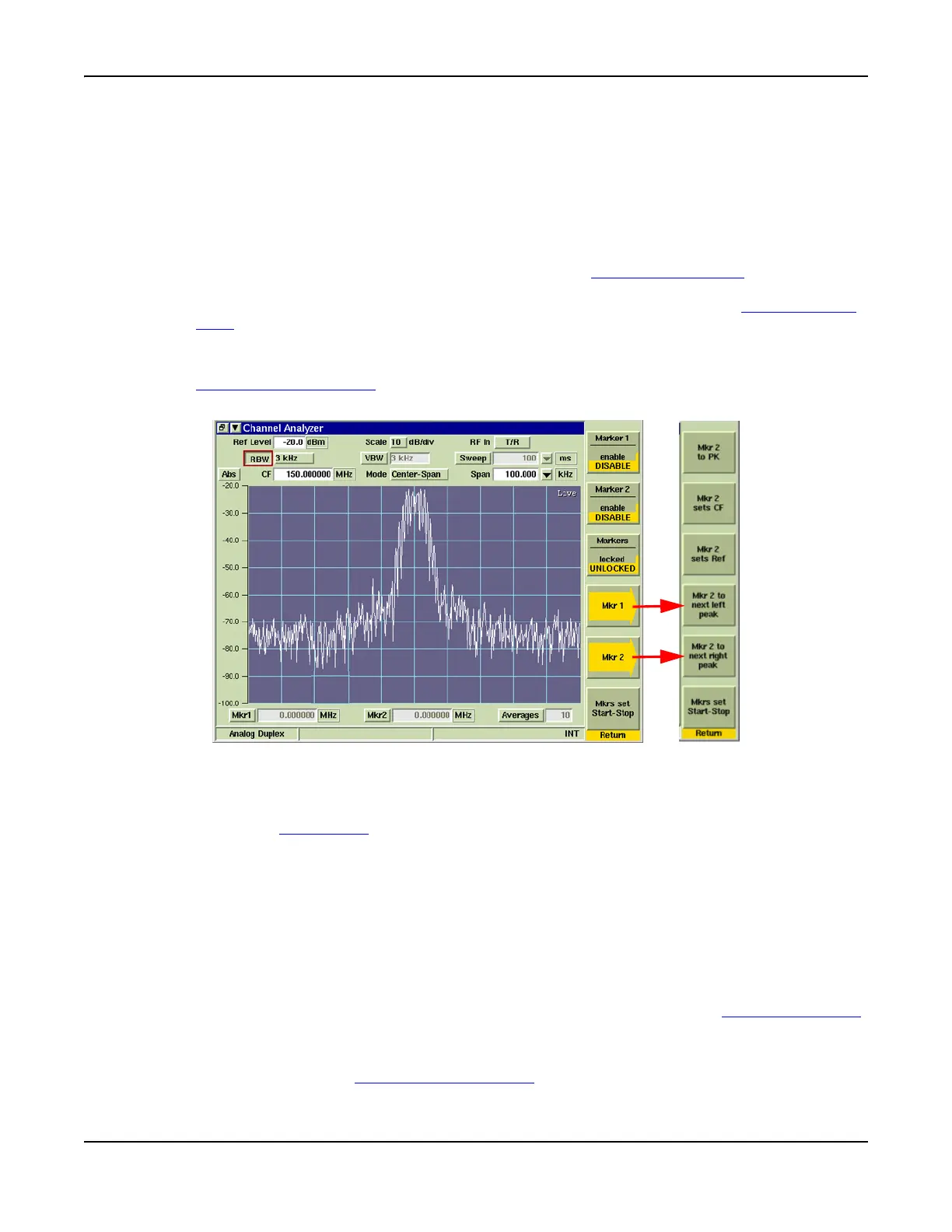

Fig. 7-12 Channel Analyzer Markers Soft Key Menu
[Marker 1/Marker 2] Soft Key
Enables or disables markers displayed on the Channel Analyzer graph. Markers can also be
enabled using the Mkr1 / Mkr2
toggle buttons.
[Marker locked/unlocked] Soft Key
When Marker 1 and Marker 2 are both enabled, LOCKED sets the markers at the current
frequency spacing. When the markers are LOCKED, moving either of the markers also moves
the other marker while maintaining the current frequency spacing. Enable and define BOTH
Markers prior to selecting LOCKED state since Markers maintain spacing that is defined when
LOCKED is enabled. UNLOCKED removes the link between markers.
[Mkr 1 / Mkr 2] Soft Key
Opens a Soft Key sub-menu that provides automatic marker functions. Markers must be enabled
to use automatic marker functions. This soft key is accessed by pressing the [Markers] Soft Key
.
[Mkr 1 (or 2) to PK] Soft Key
Moves Marker 1 or 2 to the position of the peak value shown on the current trace. This soft key
is accessed by pressing the [Mkr 1 / Mkr 2] Soft Key
.
