148 1100 Series FD Reference Manual
5 Repairing the Fluorescence Detector
2

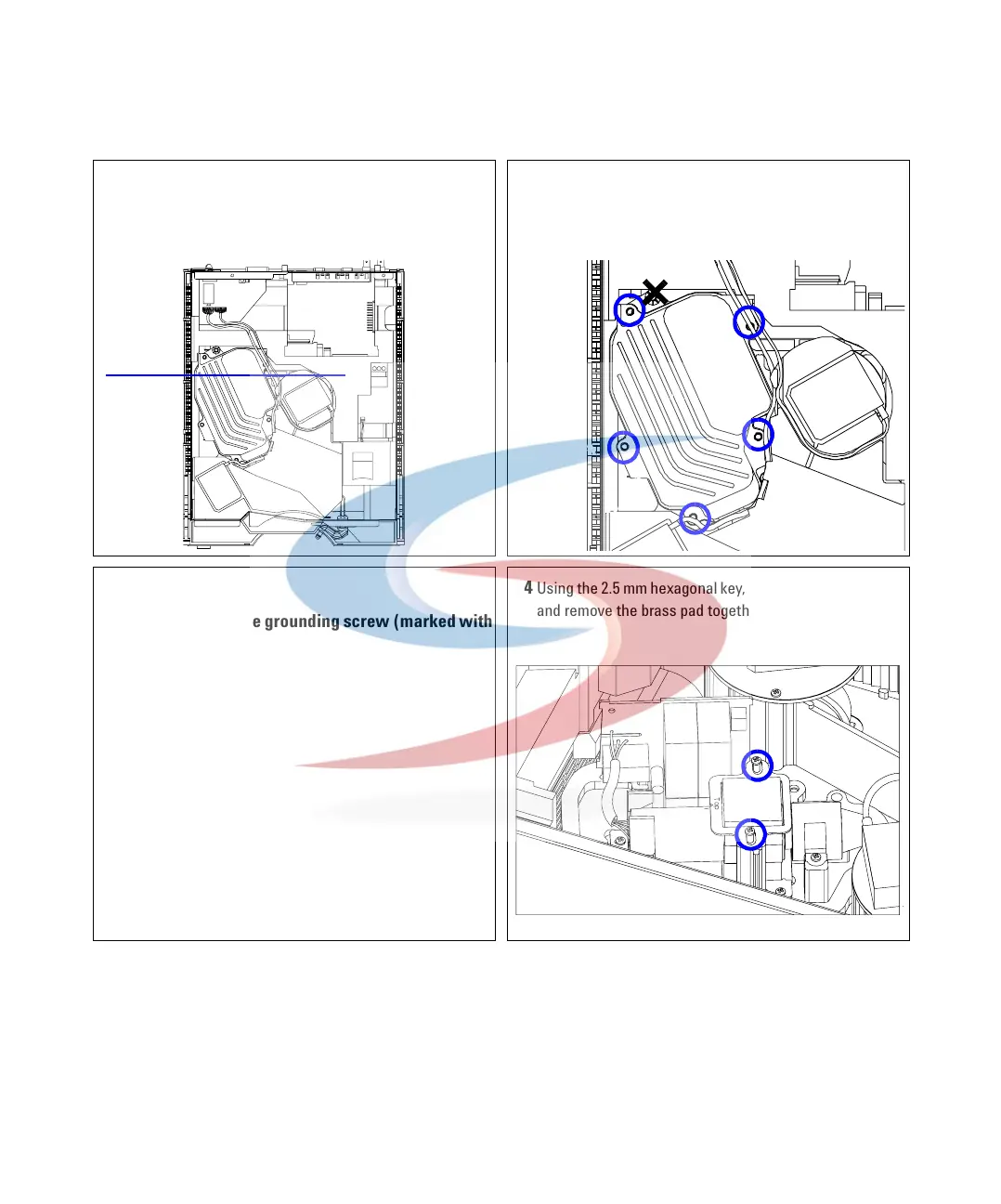

Carefully remove the rear foam. 3 Using the 4 mm hexagonal key, unscrew the five screws,
remove the cover and place it on the bench without
turning it around.
Note:
DO NOT unscrew the grounding screw (marked with
X)
4 Using the 2.5 mm hexagonal key, unscrew the two screws
and remove the brass pad together with its holder.
A
B
A
B
A
Rear
foam
A
B
A
B
A
