194 1100 Series FD Reference Manual
5 Repairing the Fluorescence Detector
Installing the Optical Unit
When required When all repairs on the optical unit have been completed
Tools re quired Screwdriver POZI 1 PT3
Hexagonal key, 4 mm
WARNING
For safe operation make sure that the ground cable is reconnected.
Preparations for this procedure:
• All previous work has been completed.
• Power supply has been installed.
• Fan has been installed.
• The optical unit has its foam cover attached.

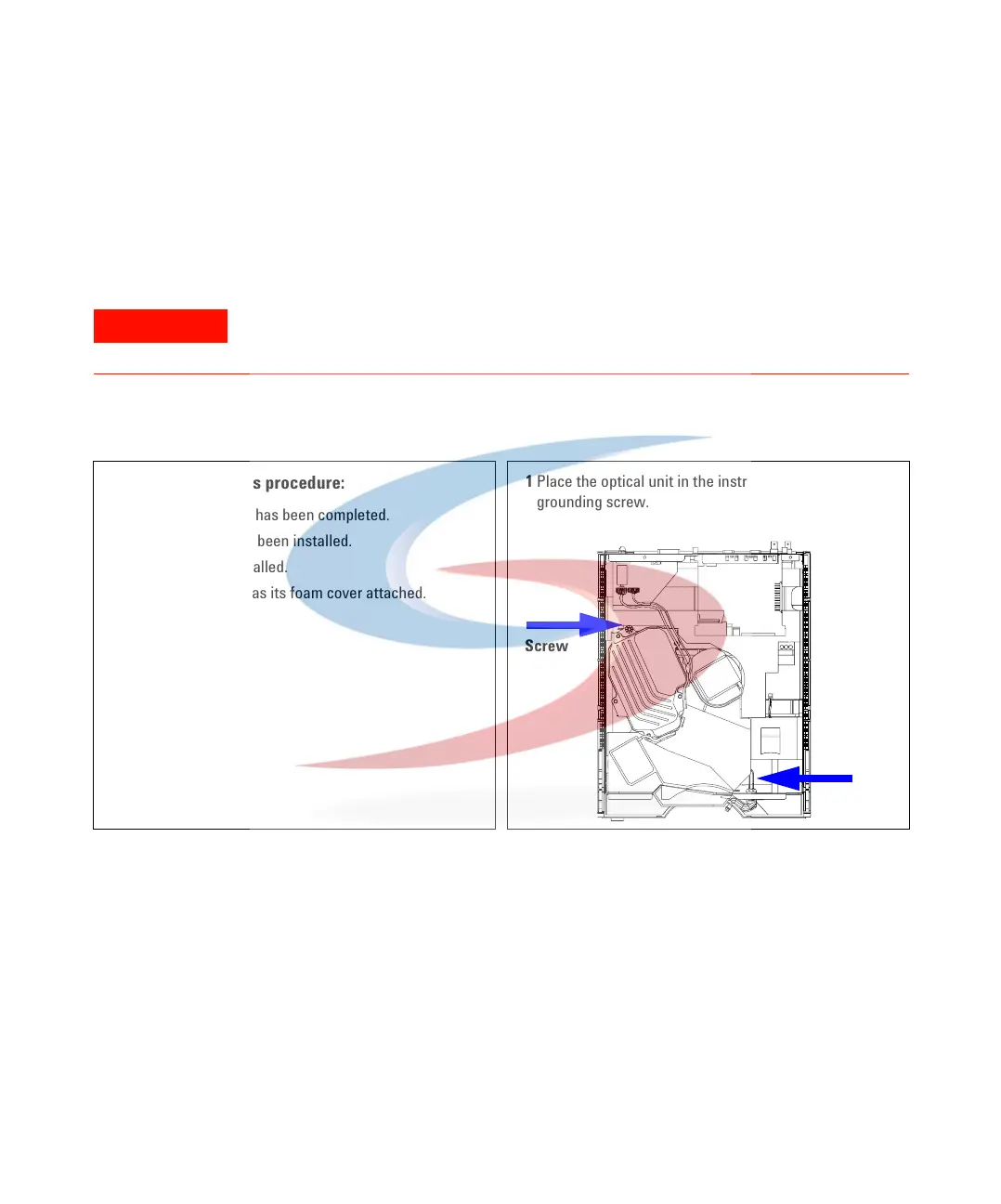

1 Place the optical unit in the instrument. Reconnect the
grounding screw.
J3
Screw
