Repairing the Fluorescence Detector 5
1100 Series FD Reference Manual 195

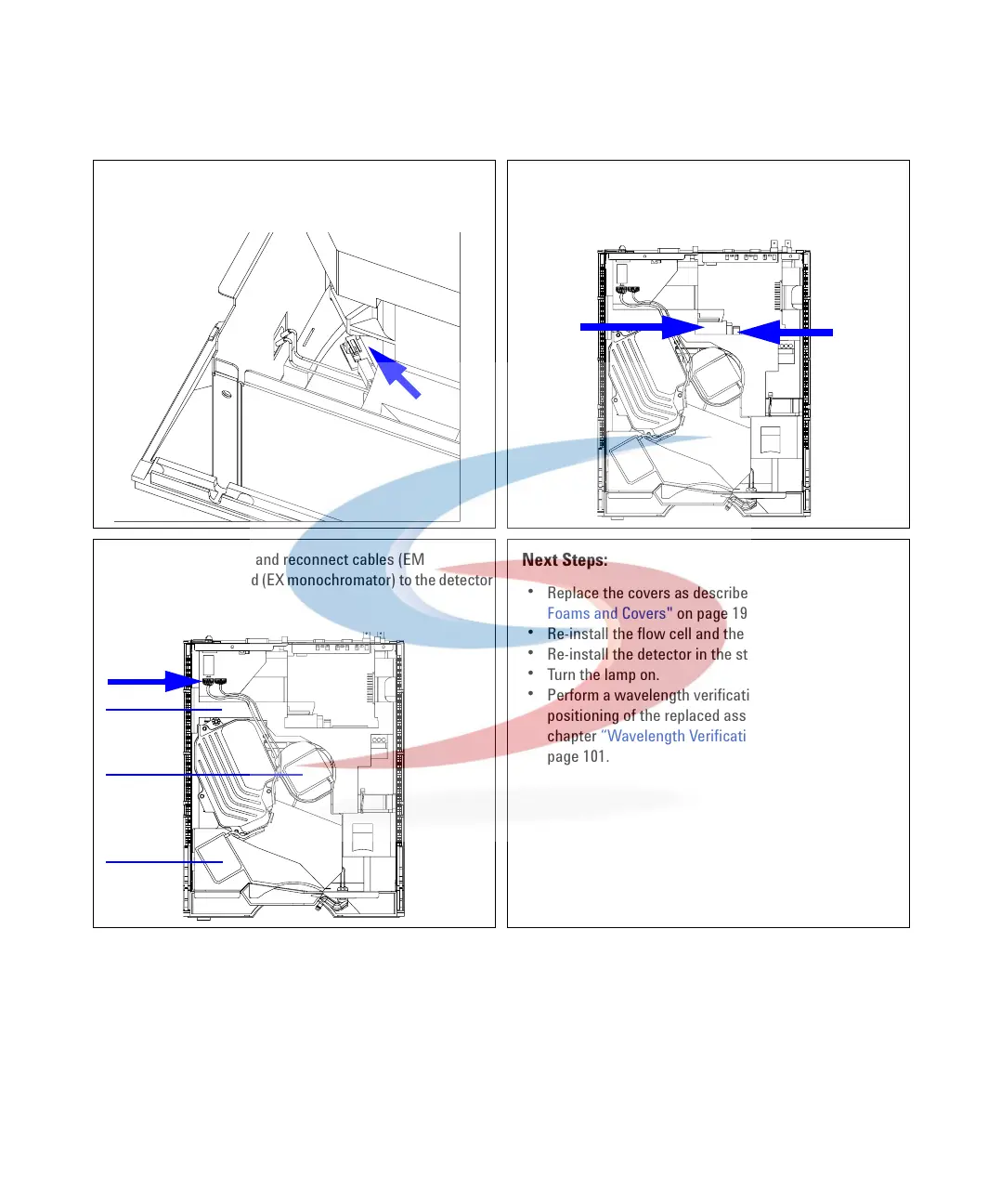

2 Reconnect the leak sensor cable (J3) using your left hand. 3 Reconnect the optical unit cable (J18) and the EM motor
cable (J20).
4 Insert the rear foam and reconnect cables (EM
monochromator) and (EX monochromator) to the detector
main board (FLM).
Next Steps:
• Replace the covers as described in “Replacing the
Foams and Covers" on page 196.
• Re-install the flow cell and the front panel
• Re-install the detector in the stack.
• Turn the lamp on.
• Perform a wavelength verification to check the correct
positioning of the replaced assemblies, as described in
chapter “Wavelength Verification and Calibration" on
page 101.
J20
J18
A
B
A
B
A
EM
EX
Rear
foam
