6 Identifying Parts and Materials
Overview of Main Assemblies

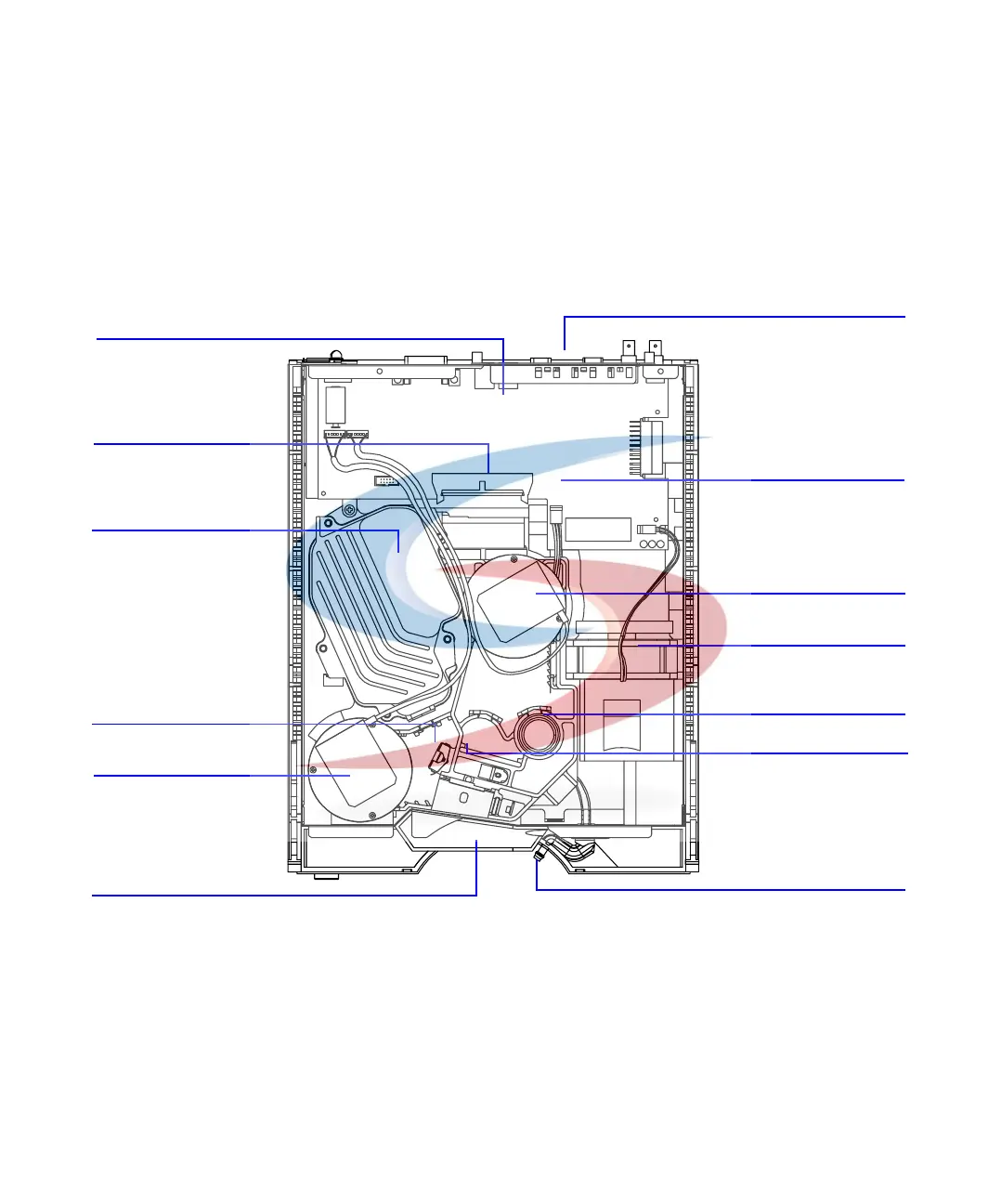

Figure 61 shows the main assemblies and their locations.
Figure 61 Main Assemblies
12 - Flow cell
3 - Interface board
(not shown)
8 - Excitation
Monochromator
1 - FLM Board
10 - Photomuliplier
4 - Fan
2 - Power Supply
9 - Emission
Monochromator
5 - Optical unit
6 - Flash lamp
For other parts
within the optical
unit see page 204
7 - Mirror
11 - condenser EM
13 - Leak Sensor
14 - Cable FLM/FLF
