Replacing Status Light Pipe
When required If part was broken or removed
Tools re quired Screwdriver POZI 1 PT3
Parts required Status light pipe 5041-8384
Preparations for this procedure:
• Remove the front cover and top cover, see “Removing
the Covers" on page 144.

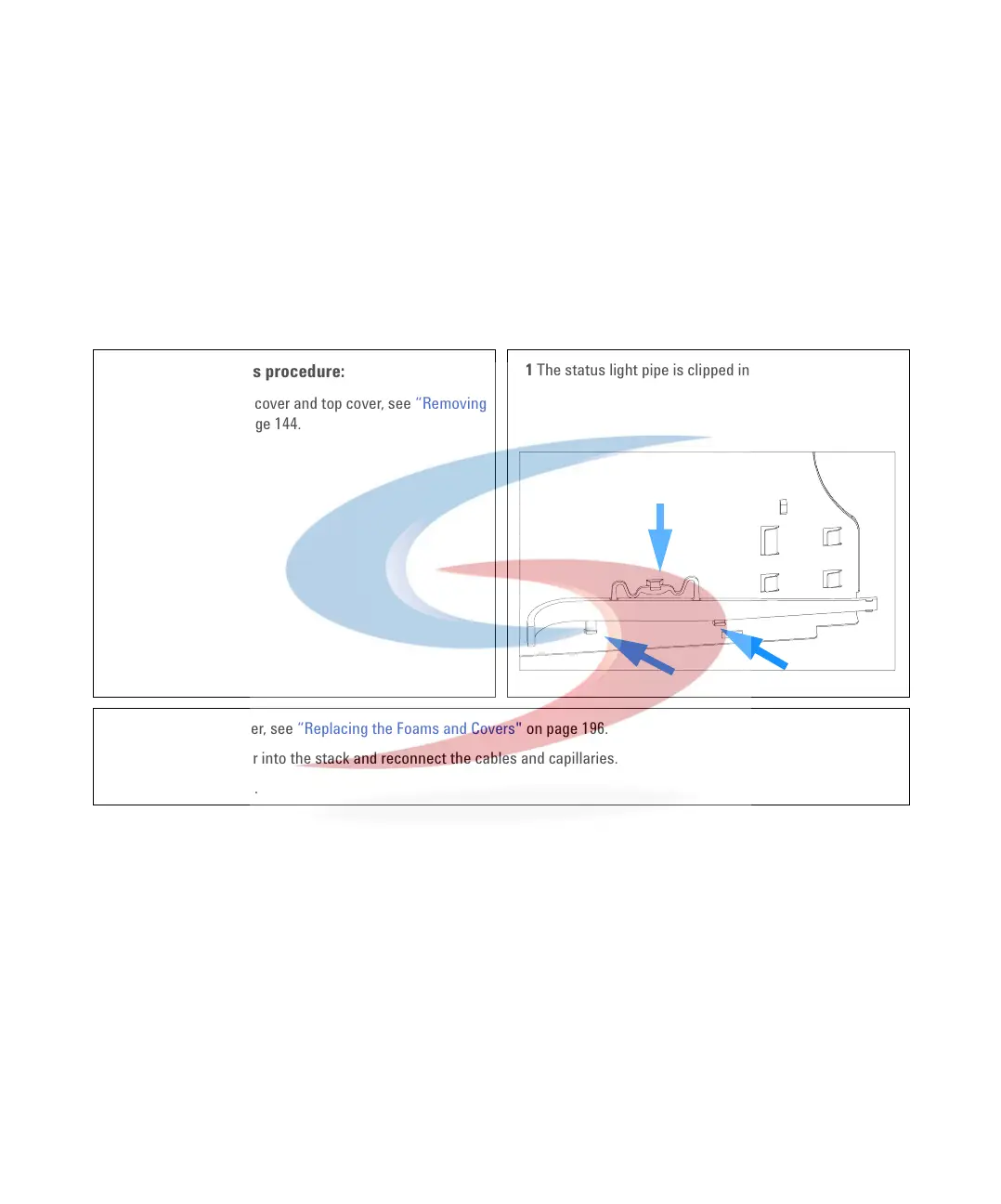

1 The status light pipe is clipped into the top cover.
2 Replace the top cover, see “Replacing the Foams and Covers" on page 196.
3 Replace the detector into the stack and reconnect the cables and capillaries.
4 Turn on the detector.
