198 1100 Series FD Reference Manual
5 Repairing the Fluorescence Detector
Assembling the Main Cover
When required If cover is broken
Tools re quired None
Parts required Plastics kit 5062-8582 (includes base, top, left and right)
NOTE
The plastics kit contains all parts, but it is not assembled.
WARNING
If you mistakenly insert the left or right side in the opposite position, you may not be
able to remove that side from the top part.

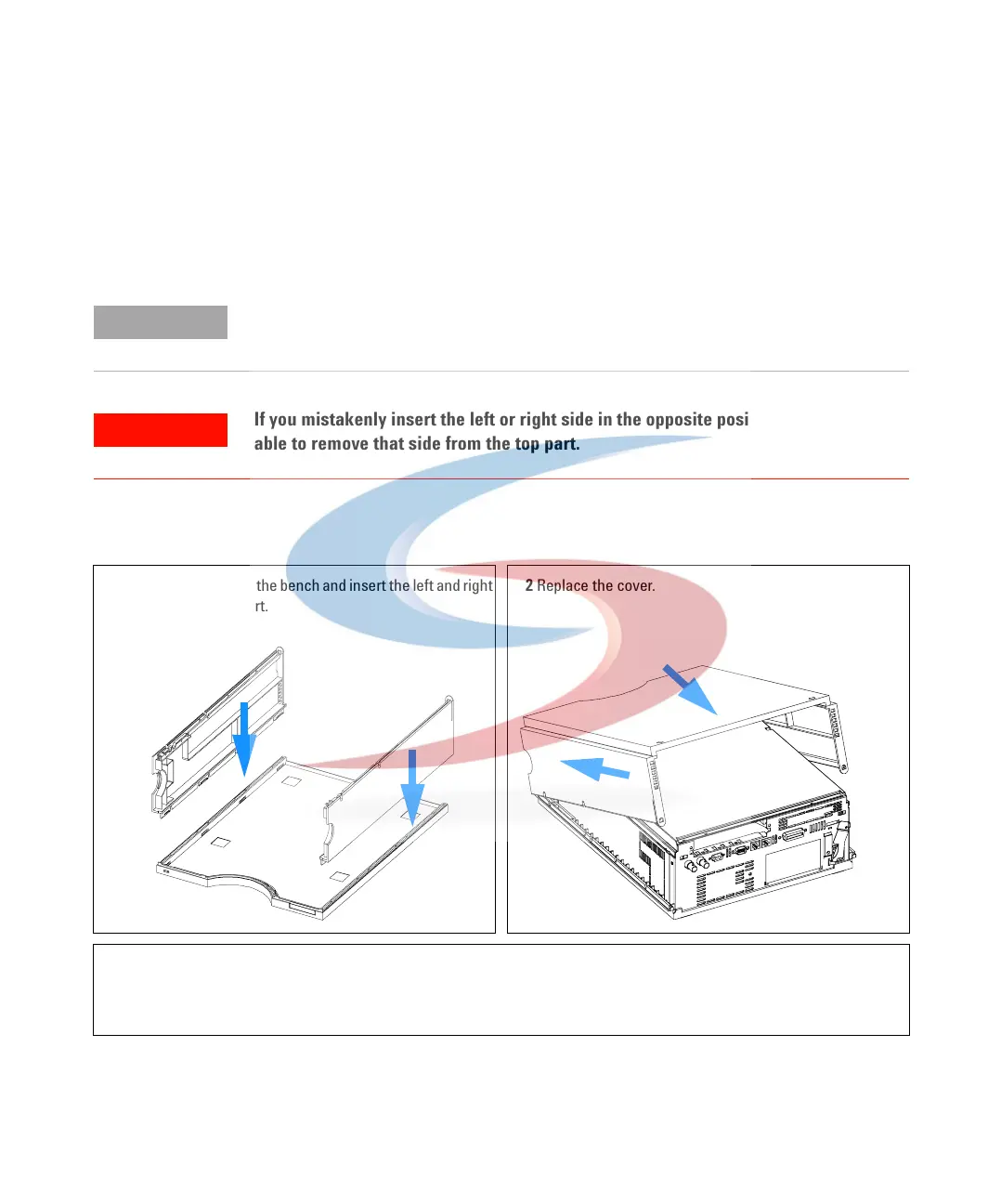

1 Place the top part on the bench and insert the left and right
sides into the top part.
2 Replace the cover.
Next steps:
• Replace the detector in the stack and reconnect the cables and capillaries.
• Turn on the detector.
