BCD Cables
One end of these cables provides a 15-pin BCD connector to be connected to
the Agilent 1100 Series modules. The other end depends on the instrument it
is to be connected to.

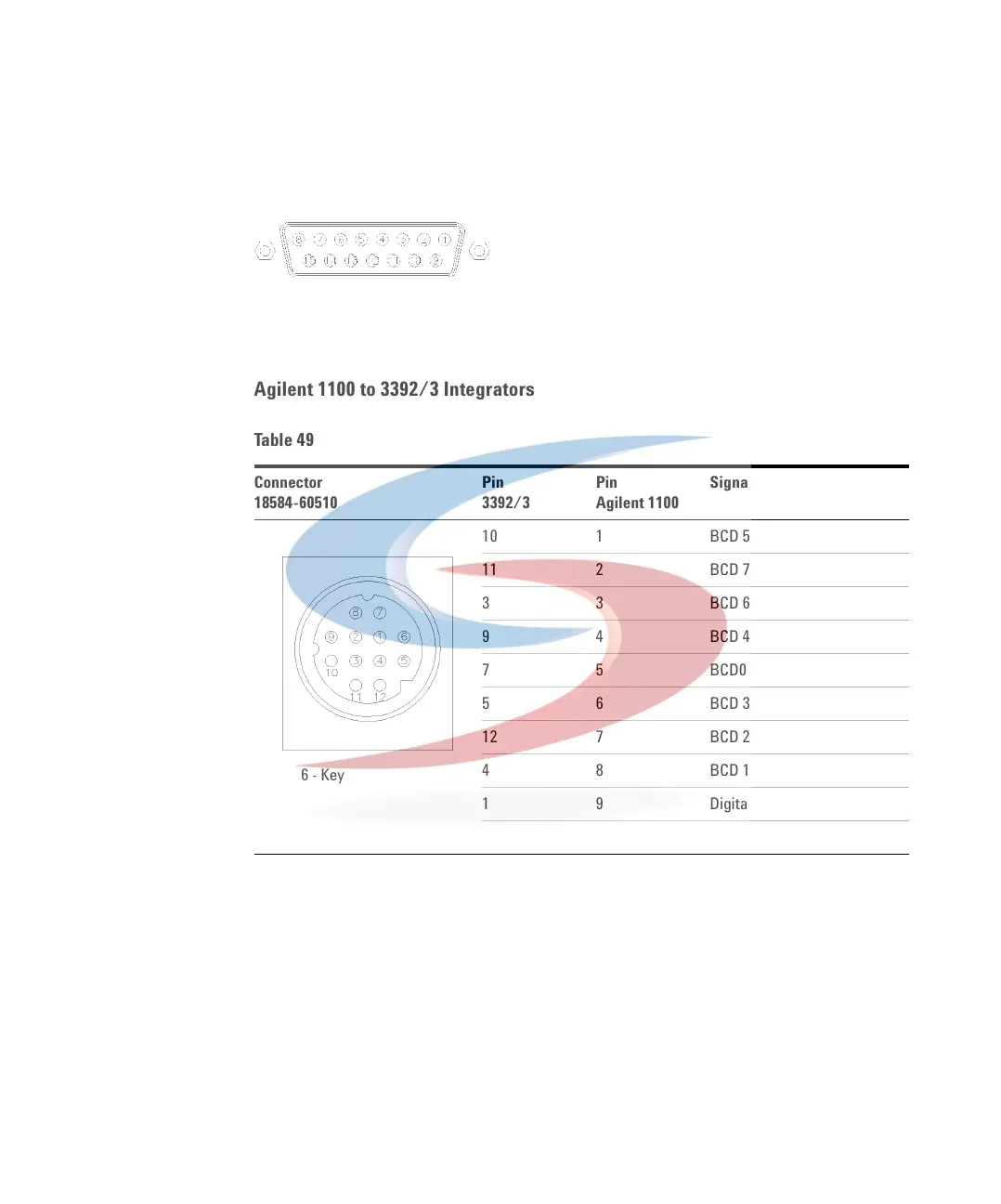

Agilent 1100 to 3392/3 Integrators
Tabl e 49
Connector
18584-60510
Pin
3392/3
Pin
Agilent 1100
Signal Name BCD Digit
10 1 BCD 5 20
11 2 BCD 7 80
33BCD 640
94BCD 410
75BCD01
56BCD 38
12 7 BCD 2 4
48BCD 12
1 9 Digital ground
215+5VLow
6 - Key
