Repairing the Fluorescence Detector 5
1100 Series FD Reference Manual 177

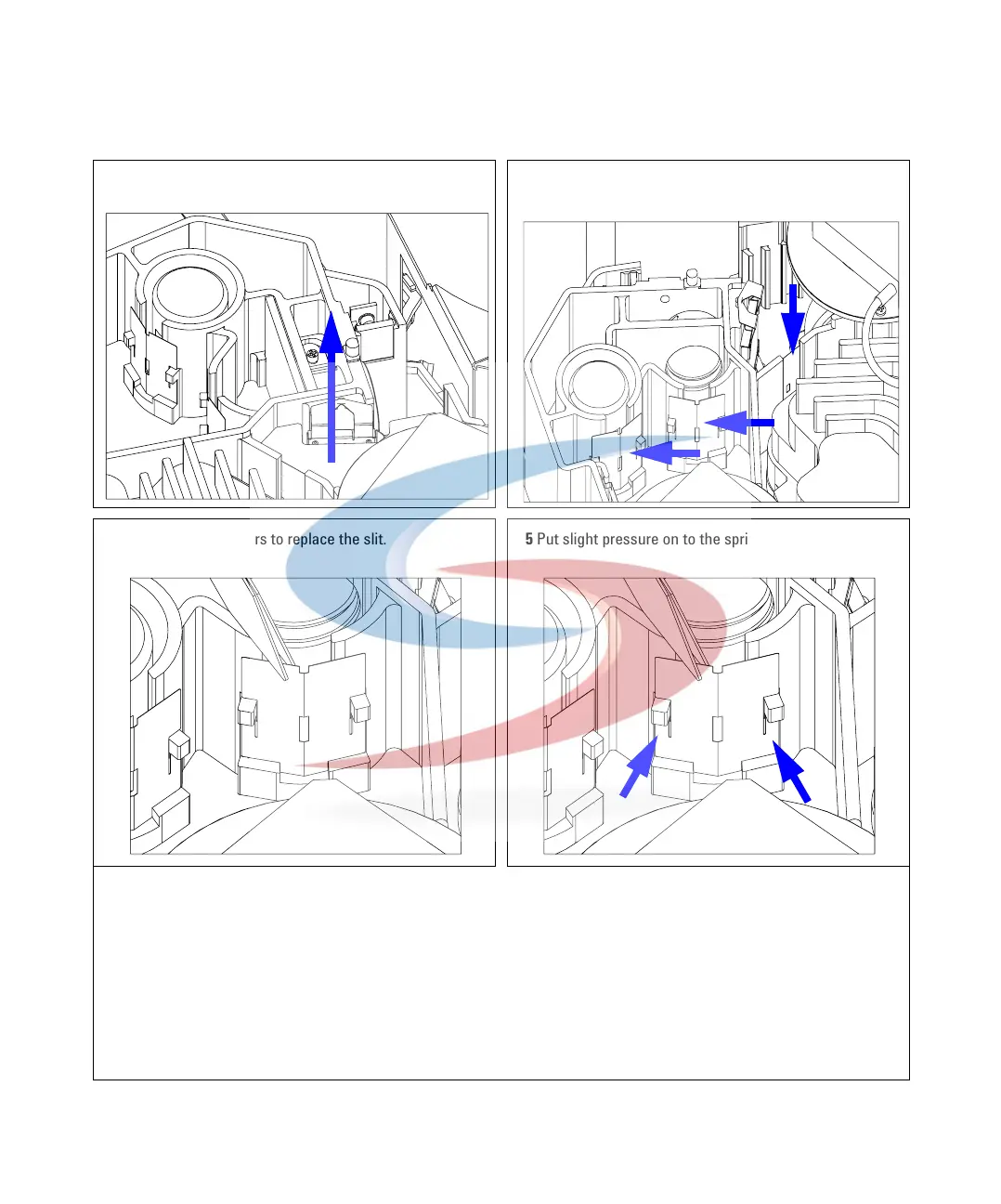

2 Remove the UV protector. 3 Locate the three slits (from left to right: PMT, EM, EX).
4 Use a pair of tweezers to replace the slit. 5 Put slight pressure on to the spring part of the slit.
Next Steps:
• Replace the UV protector.
• Replace the front foam.
• Replace the covers as described in “Replacing the Foams and Covers" on page 196.
• Re-install the flow cell and the front panel
• Re-install the detector in the stack.
• Turn the lamp on.
• Perform a wavelength verification to check the correct positioning of the replaced assemblies, as described in chapter
“Wavelength Verification and Calibration" on page 101.
