Agilent Technologies 1100 Series Reference Manual

Identifying Parts and Materials 6
1100 Series FD Reference Manual 231

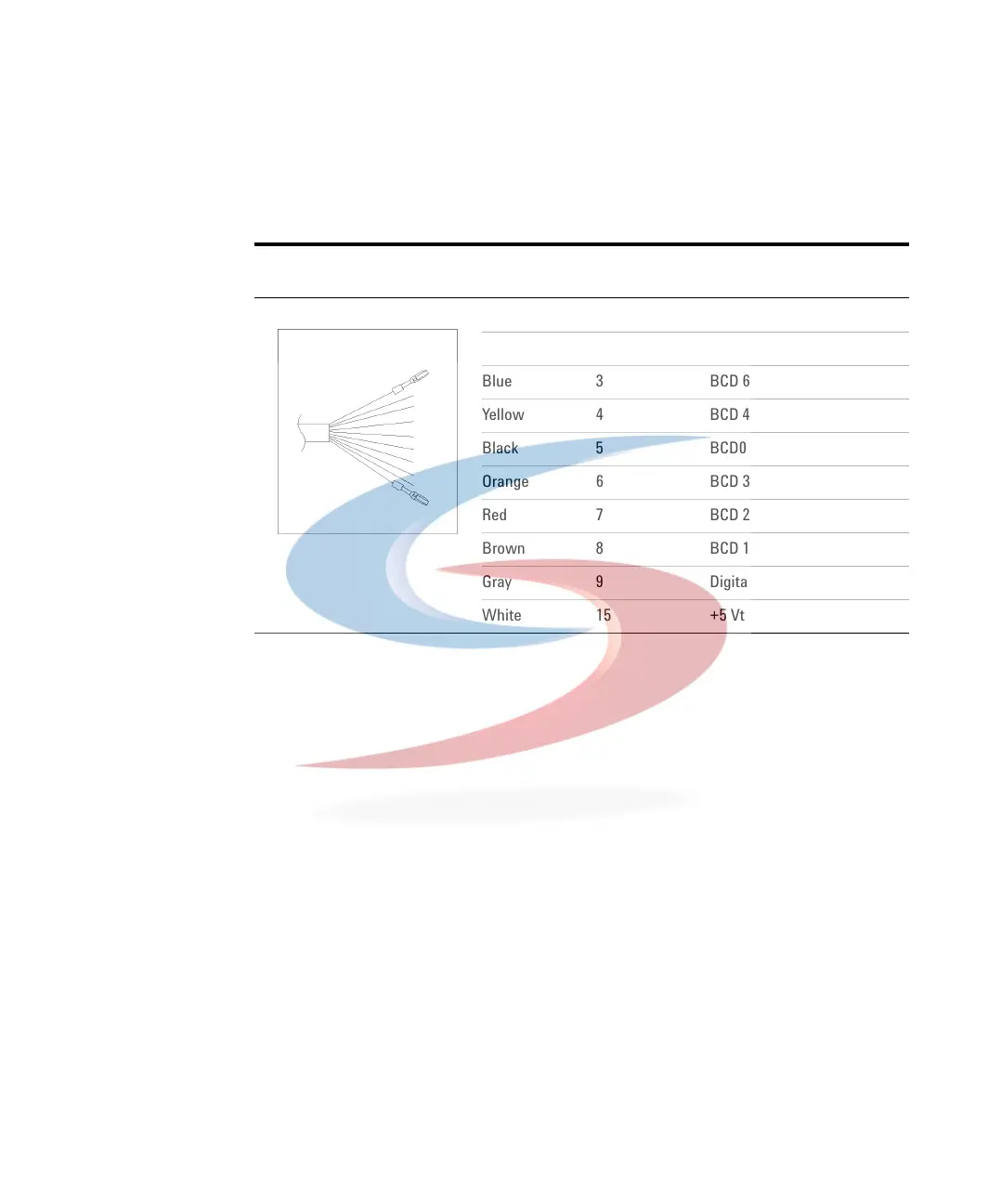

Agilent 1100 to General Purpose
Tabl e 51
Connector
18594-60520
Wire Color Pin
Agilent 1100
Signal Name BCD Digit
Green 1 BCD 5 20
Violet 2 BCD 7 80
Blue 3 BCD 6 40
Yellow 4 BCD 4 10
Black 5 BCD0 1
Orange 6 BCD 3 8
Red 7 BCD 2 4
Brown 8 BCD 1 2
Gray 9 Digital ground
White 15 +5 Vt Low
