Agilent Technologies 1100 Series Reference Manual

Theory of Operation 8
1100 Series FD Reference Manual 289
Tabl e 63 RS-232C Connection Table
Pin Direction Function
1InDCD
2InRxD
3OutTxD
4OutDTR
5 Ground
6InDSR
7OutRTS
8InCTS
9InRI

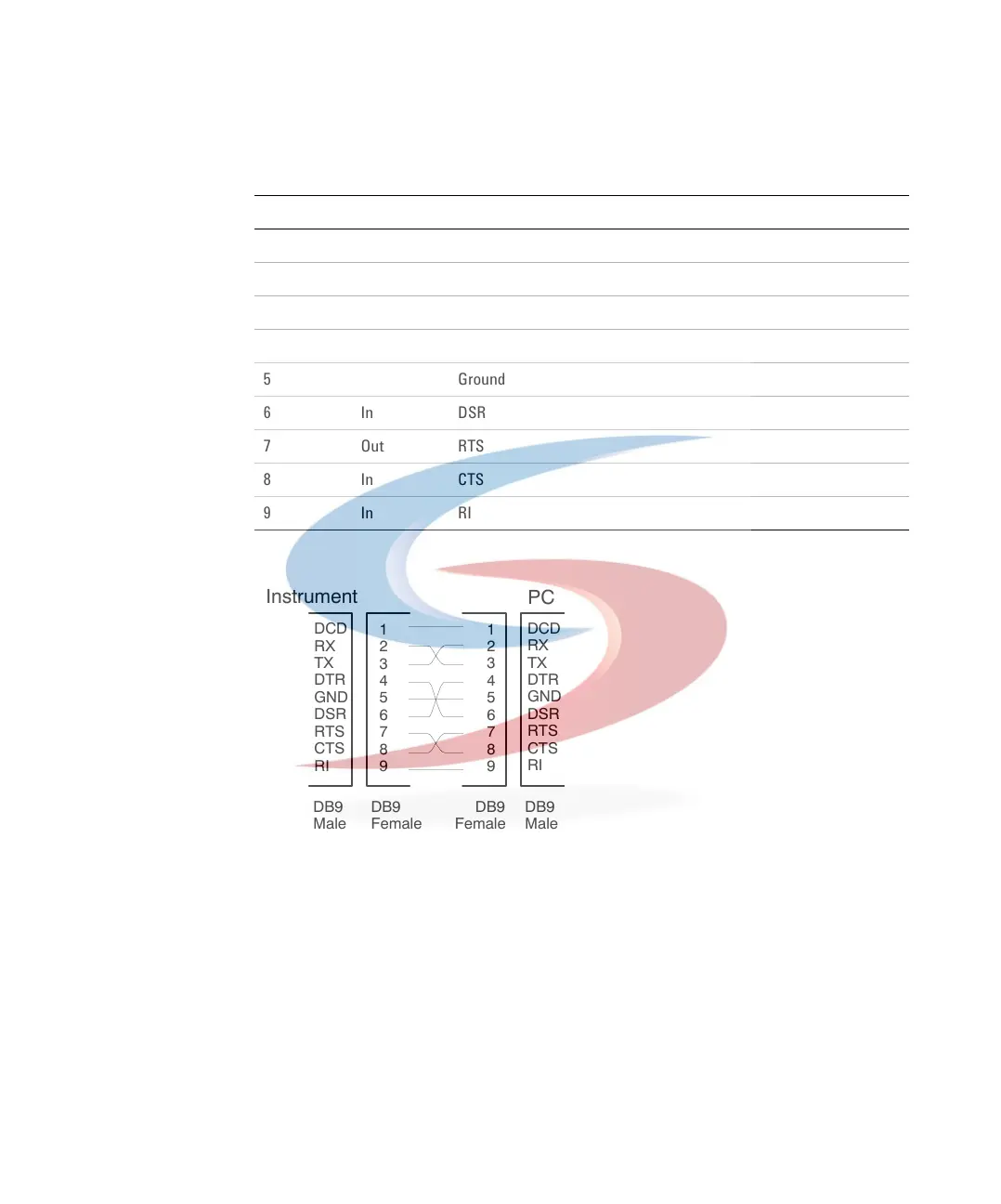

Figure 99 RS-232 Cable
Instrument
DCD
RX
TX
DTR
GND
DSR
RTS
CTS
RI
DCD
RX
TX
DTR
GND
DSR
RTS
CTS
RI
PC
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
DB9
Male
DB9
Female
DB9
Female
DB9
Male
